Envirosol Equipment Listing

GAA P/N

Description


PDF

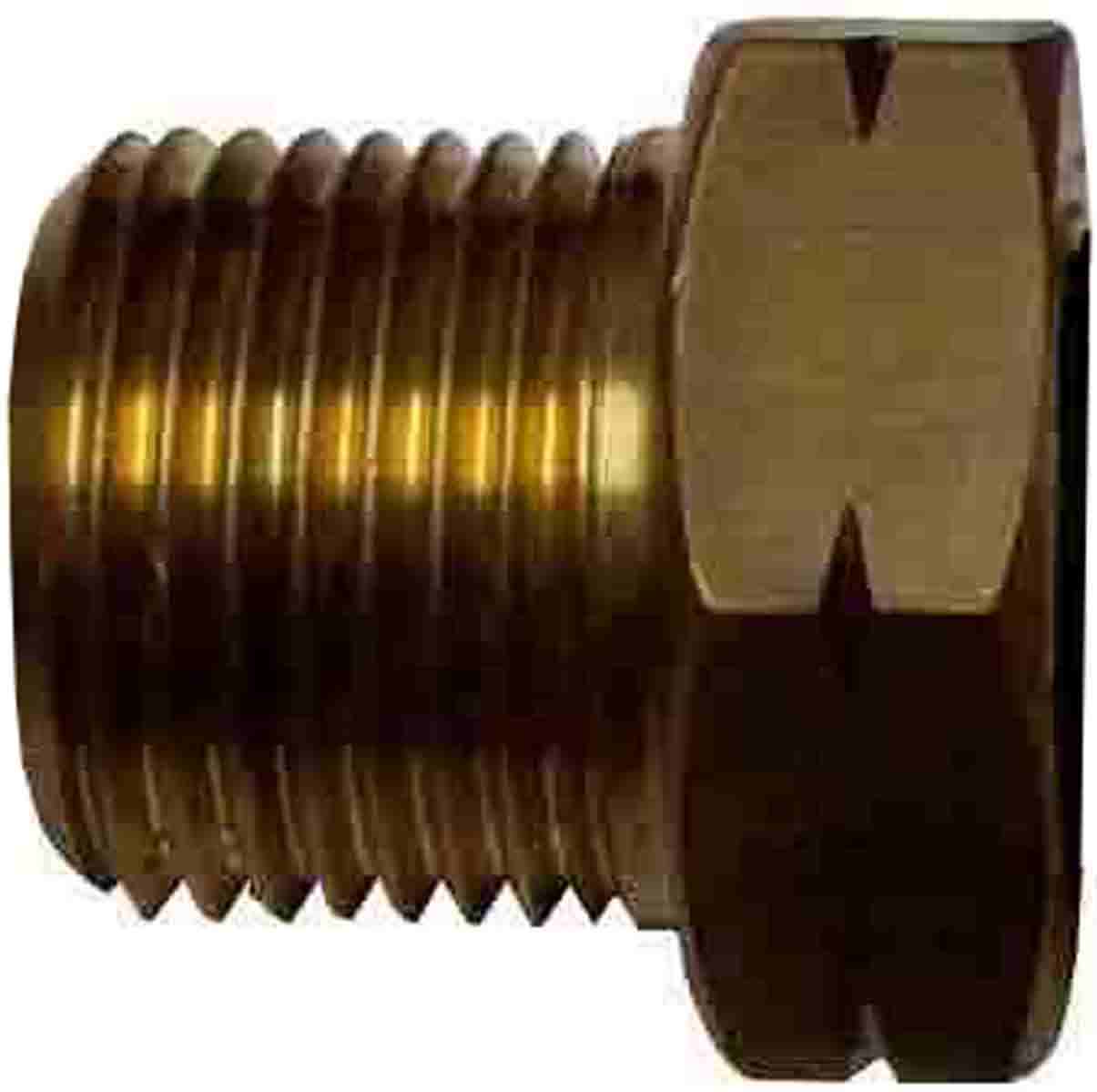

302625

Deodourgas Brass Nut/Nipple 5/8" BSP - Type 20

Material : Brass Unplated

LH Thread. Suits Deodourgas & Bactigas Cylinder

p1

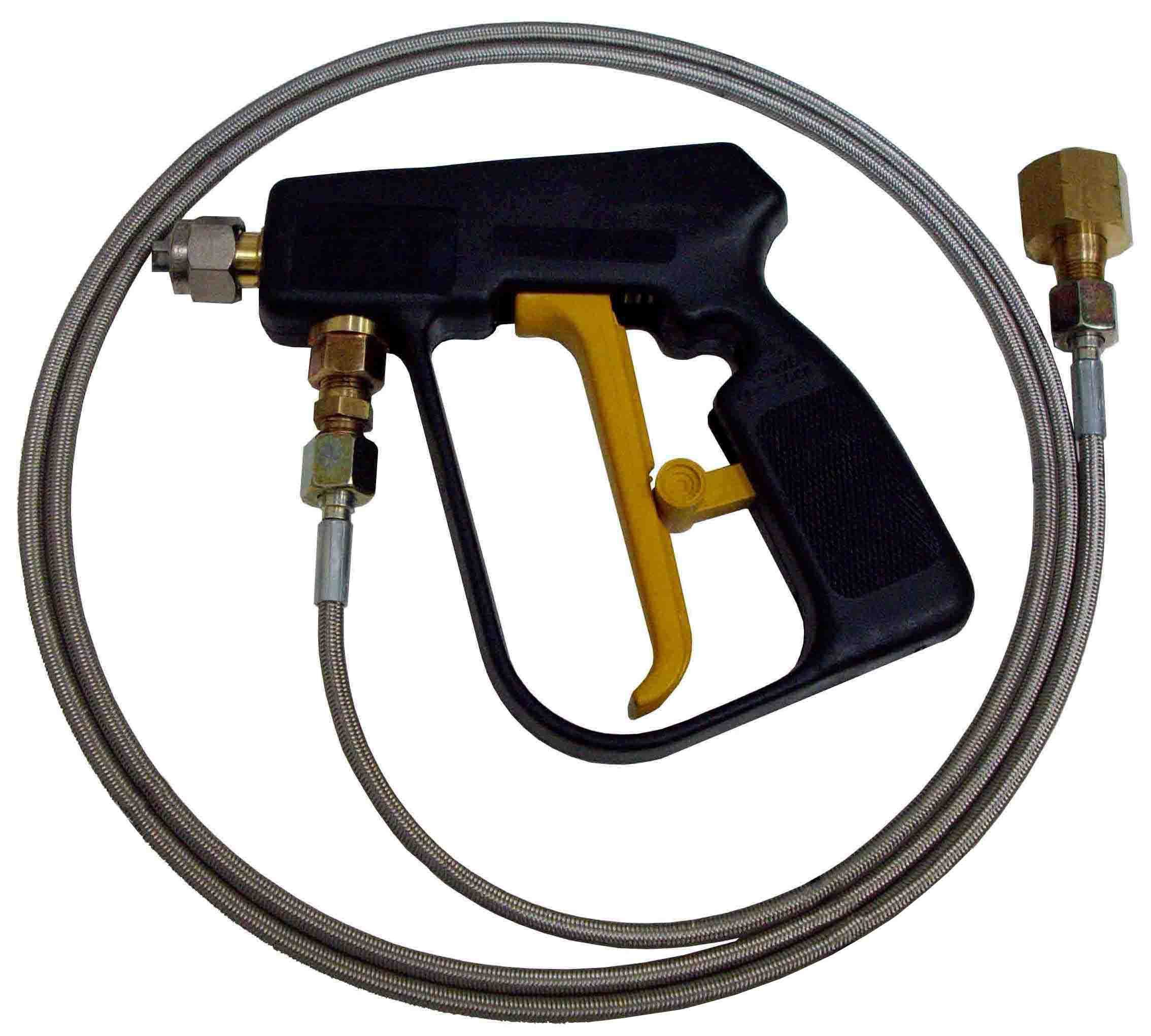

416651

Insectigas Gun Kit

Includes Gun, 2m Hose, Nut & Spigot

Nozzle [3 g/s]

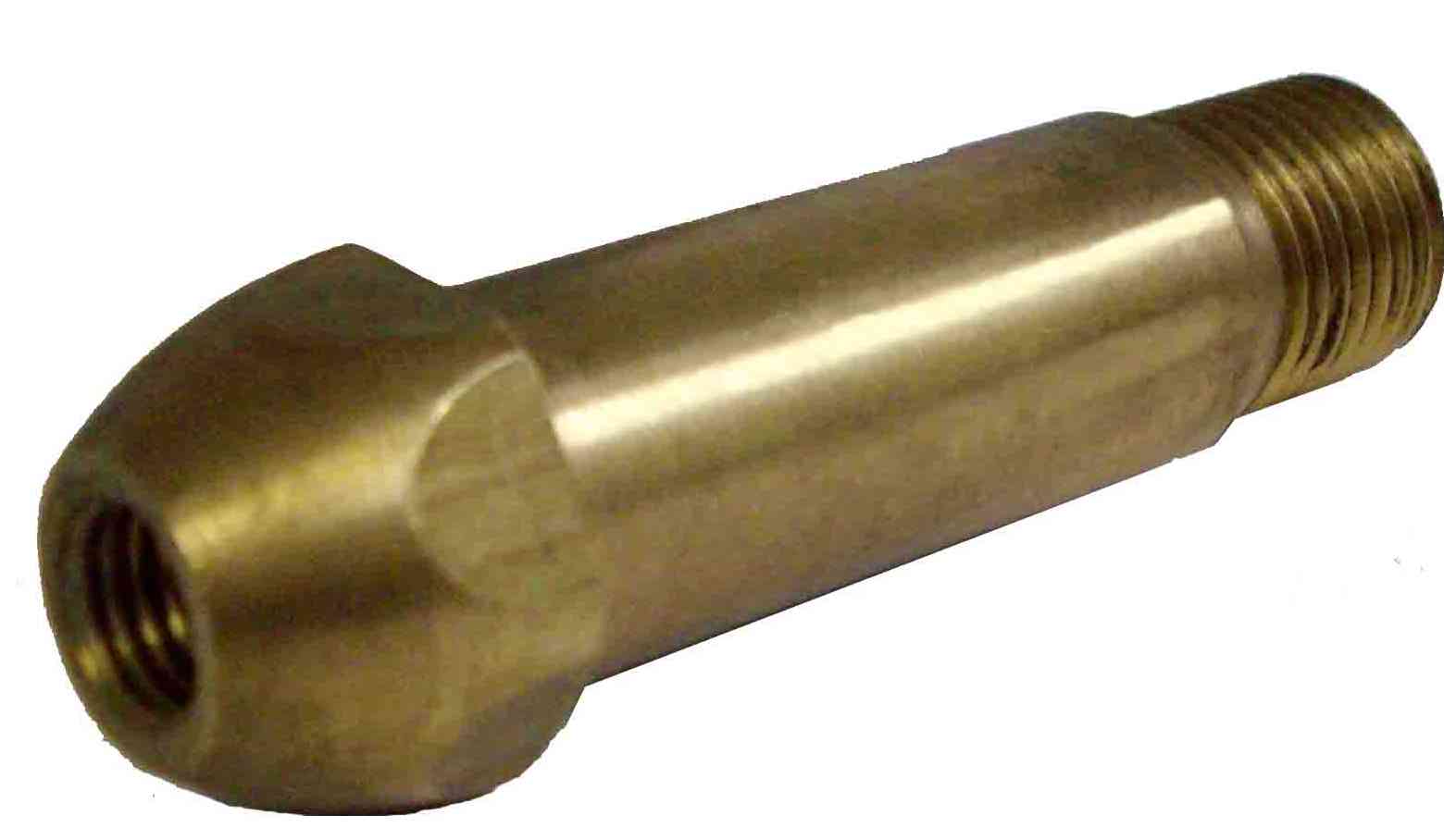

730000

SPIGOT Deodourgas 1/4"

Material : Brass

Type 20

p1

730001

SPIGOT Deodourgas 1/8"

Material : Brass

Type 20

730002

Spigot Pestigas/Insectigas 1/4"

Material : Brass

Includes RB38 Filter & RB39 Retaining Nut

Type 40 & 42 40 & 42

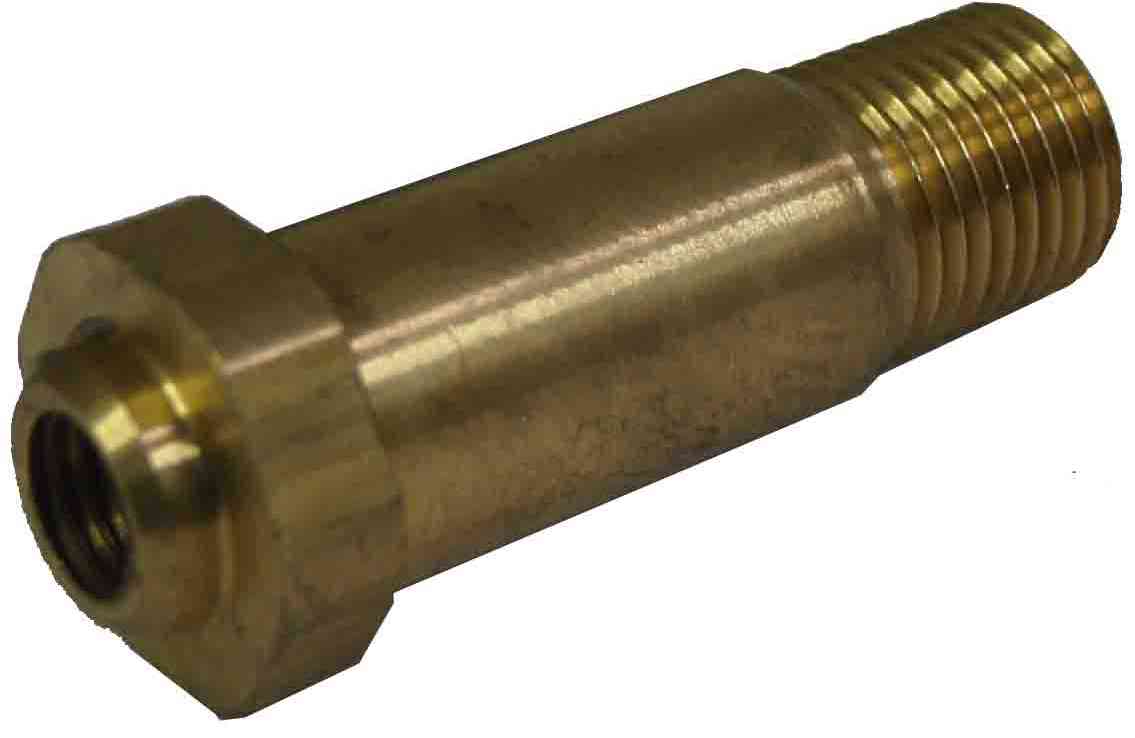

730003

Spigot Pestigas/Insectigas 1/8"

Material : Brass

Includes RB38 Filter & RB39 Retaining Nut

Type 40 & 42

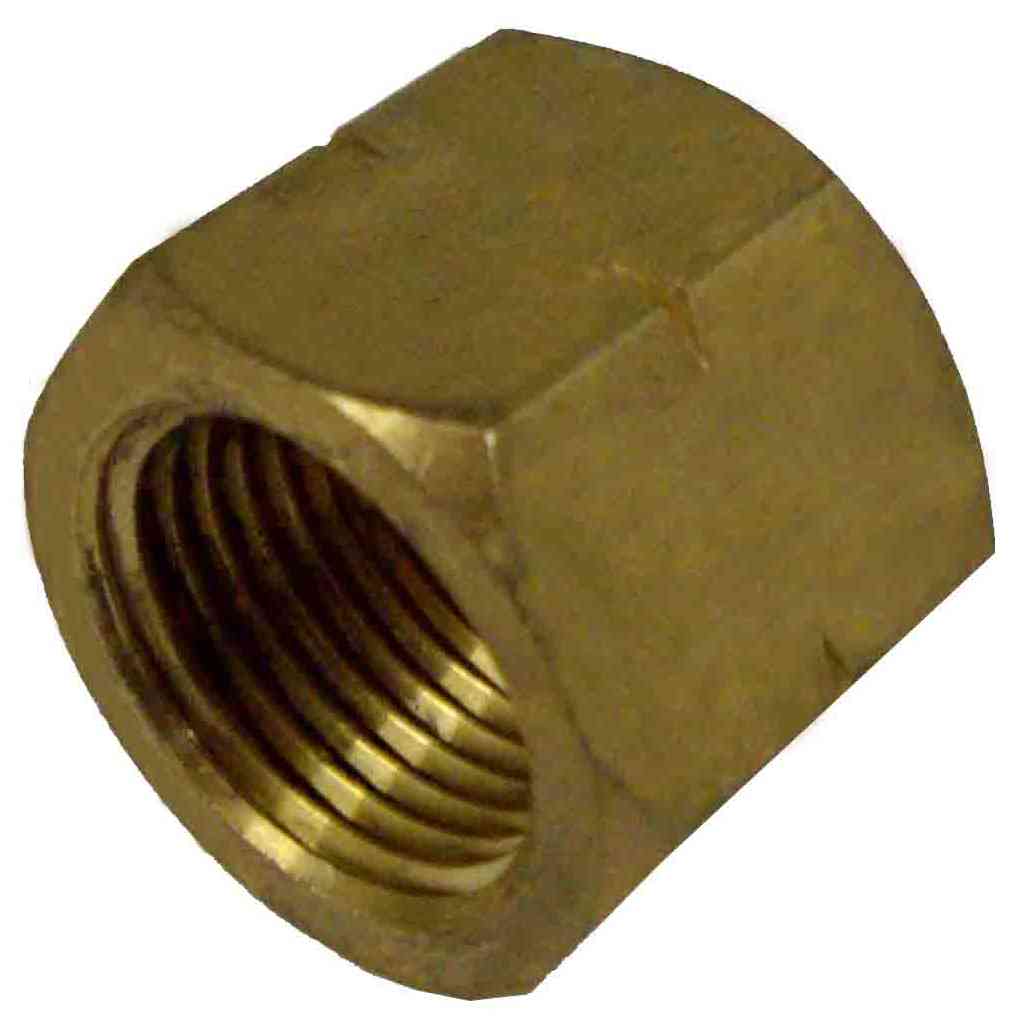

730004

Brass Nut Pestigas

Material : Brass

Left Hand Thread, Type 42

730005

Brass Nut Insectigas

Material : Brass

Left Hand Thread, Type 40

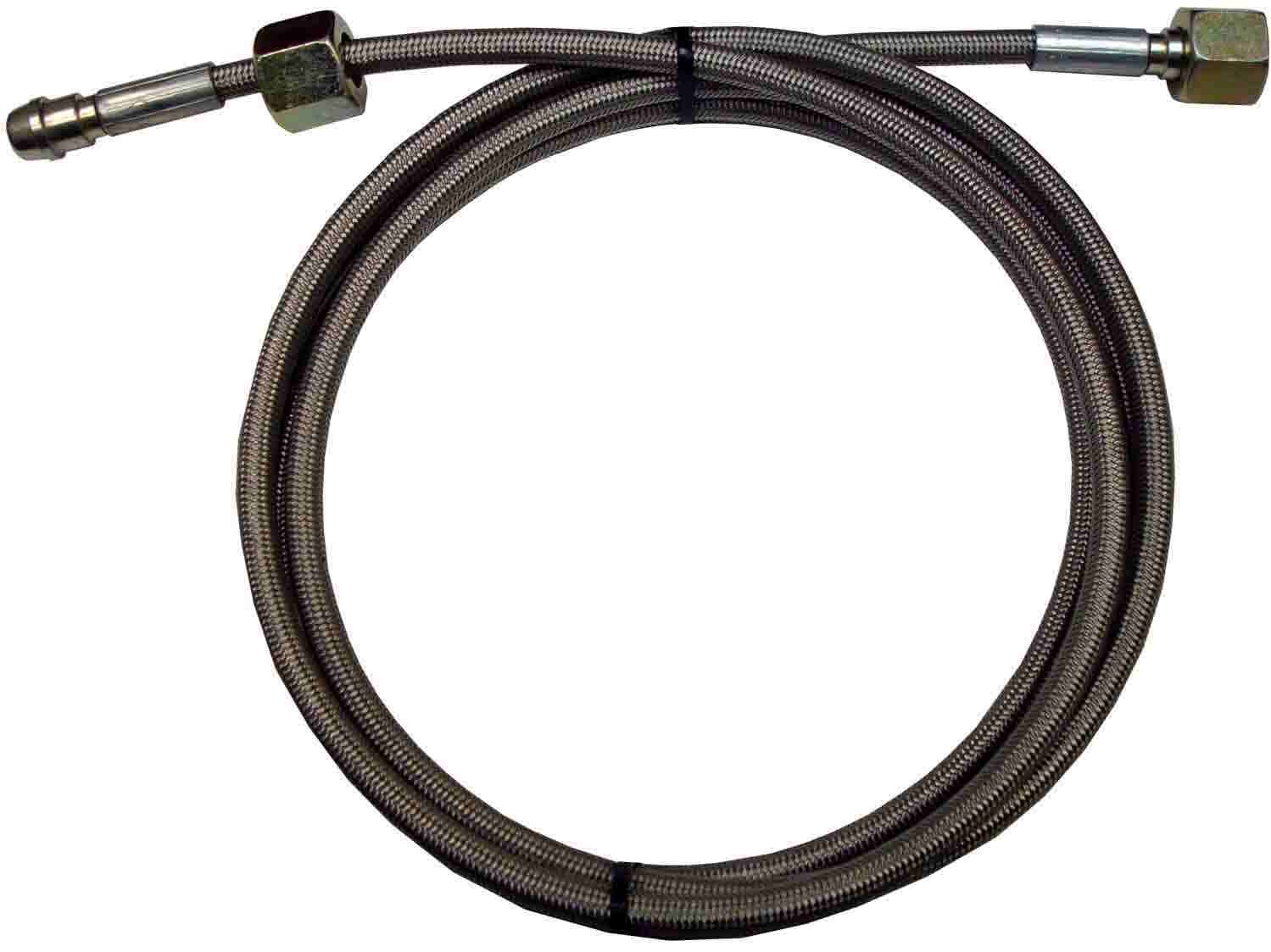

730006

Envirosol Hose 2m X 5/32" ID

Material : Stainless Steel Braided Teflon

Ends :  " BSPP Female Swivel

p2

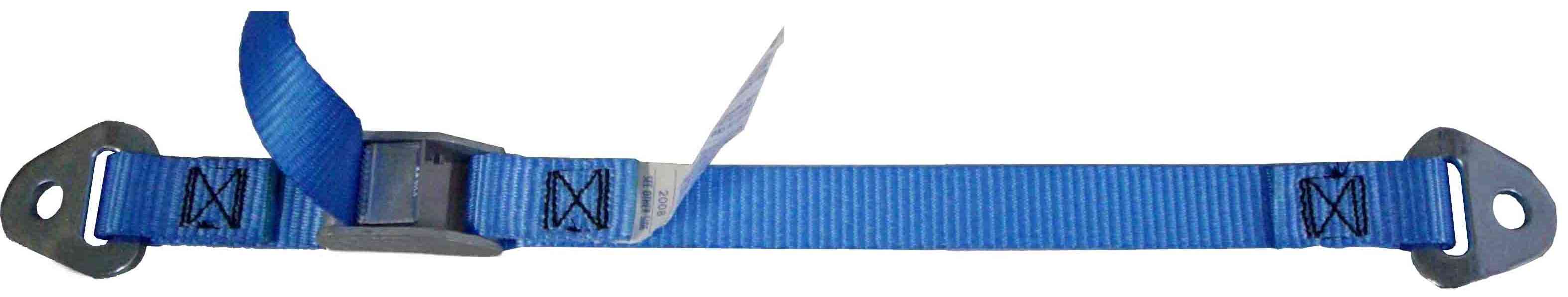

730008

Cylinder Securing Strap

Material : Steel Plated Ends, Single Ply Polyester Flat

Webbing, Self Locking Quick Release Buckle

730012

Brass Male Connector 1/4" BSPP x 1/4" BSPT

Material : Brass

Connects Hose #730006 to Envirosol Gun #736679

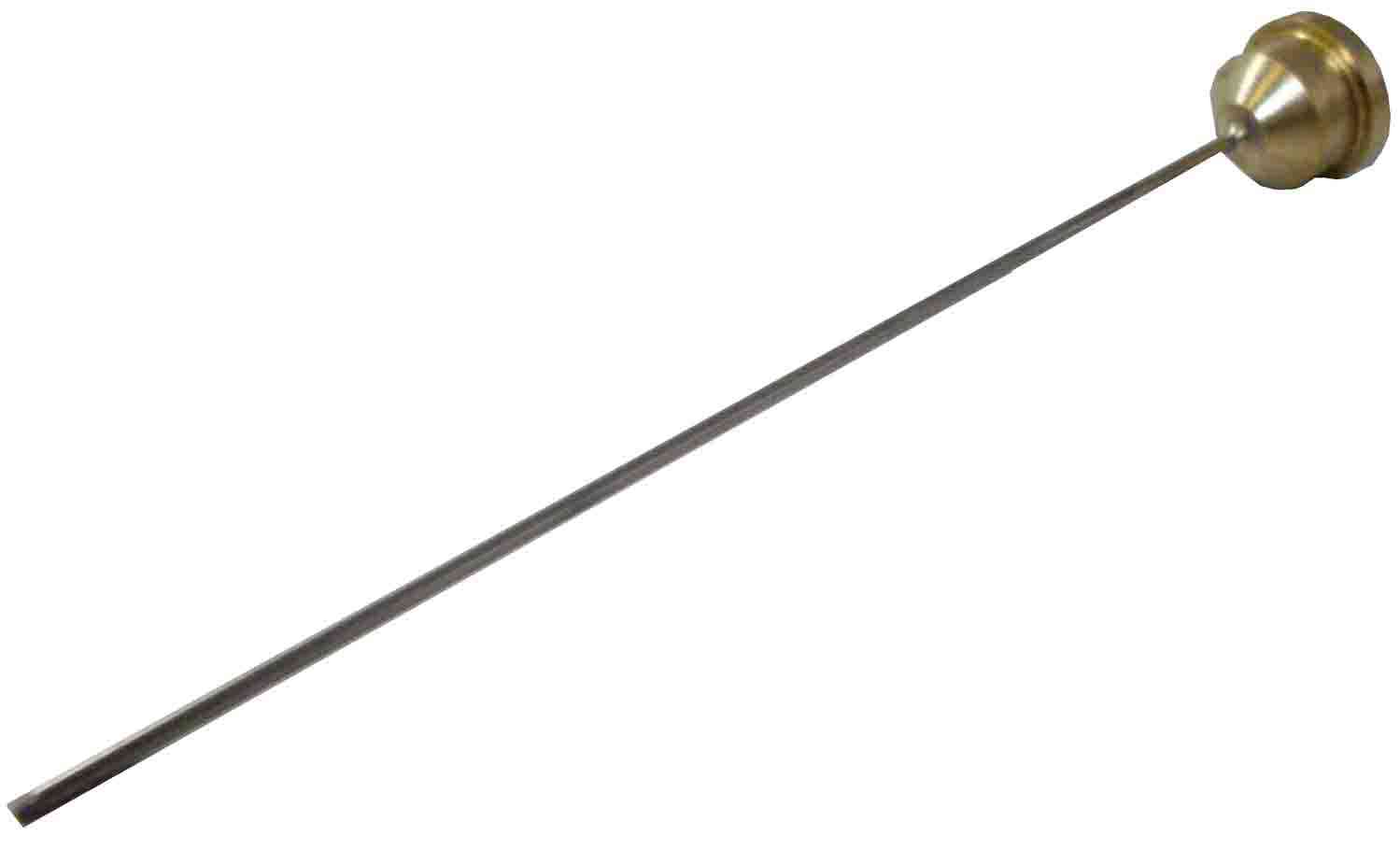

730013

Nozzle Crack & Crevice

Material : Brass Body, Stainless Steel Tube

Nominal Flow Rate : 16.5g/s

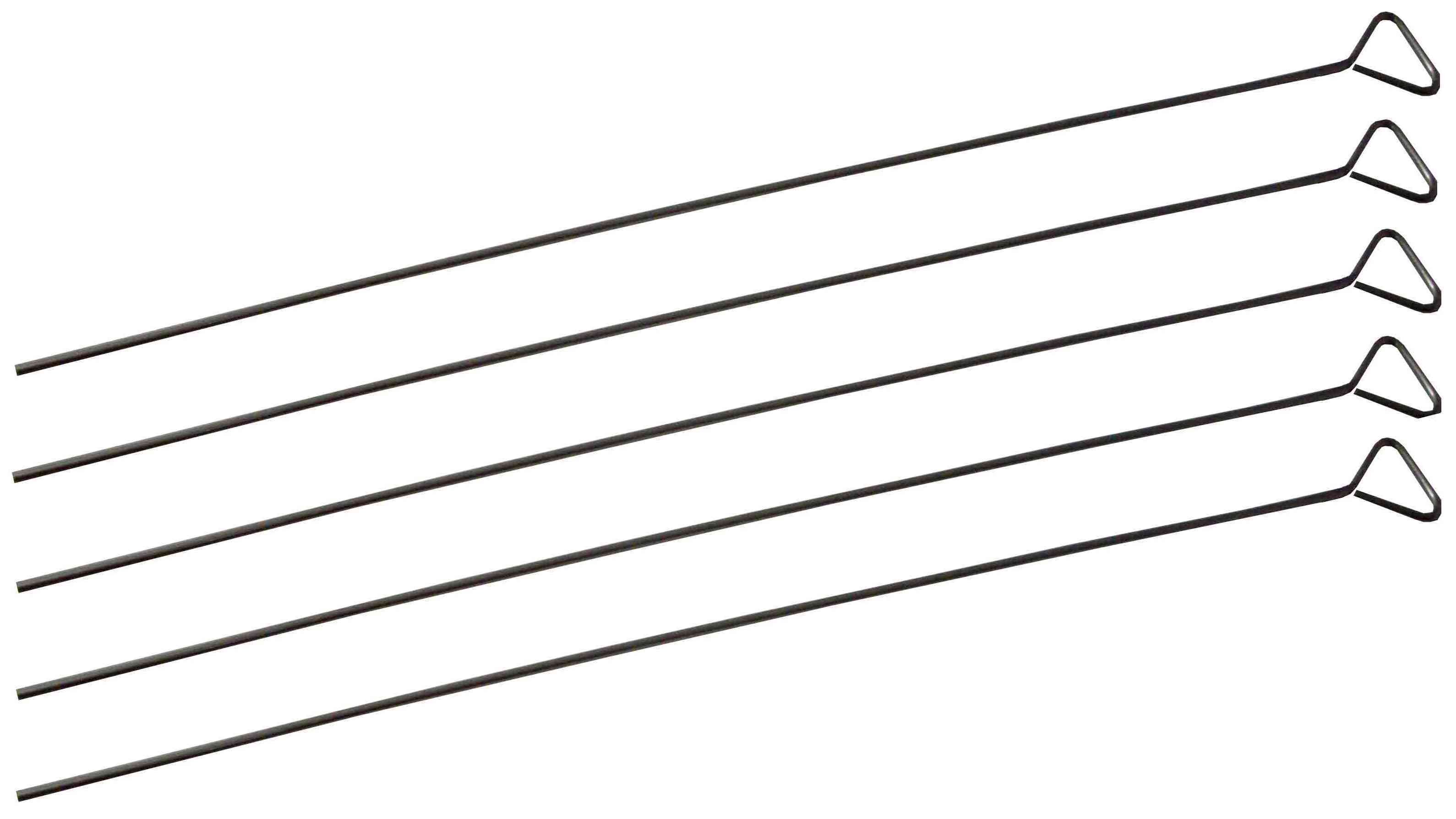

730014

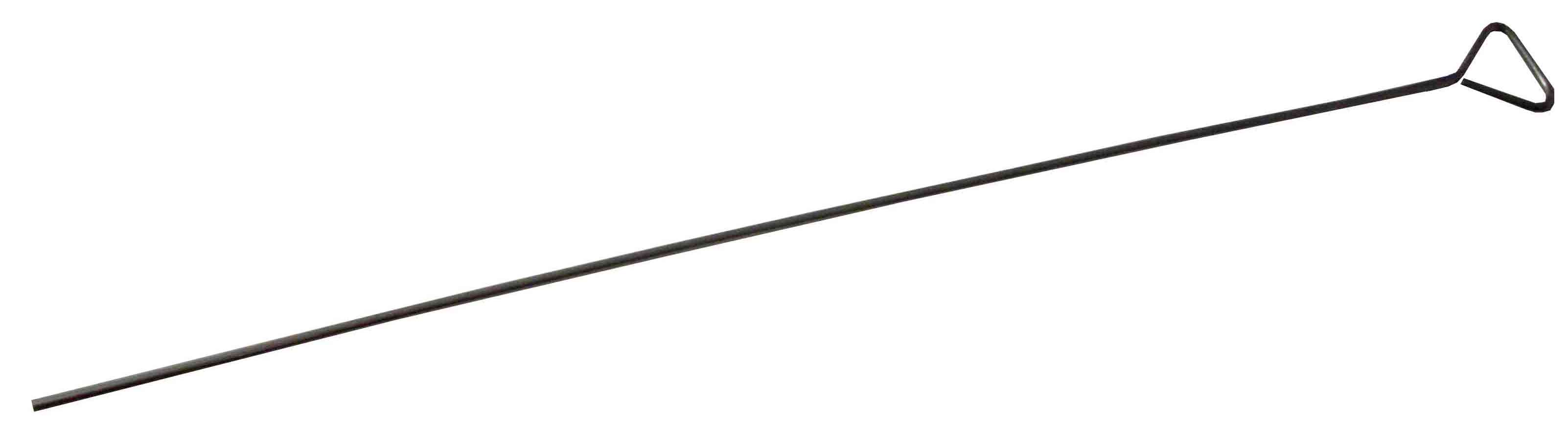

Crack & Crevice Insert [Pack of 5]

Material : Stainless Steel 0.9mm Wire

Reduces Gas Flow Rate of Nozzle #730013 to 6g/s

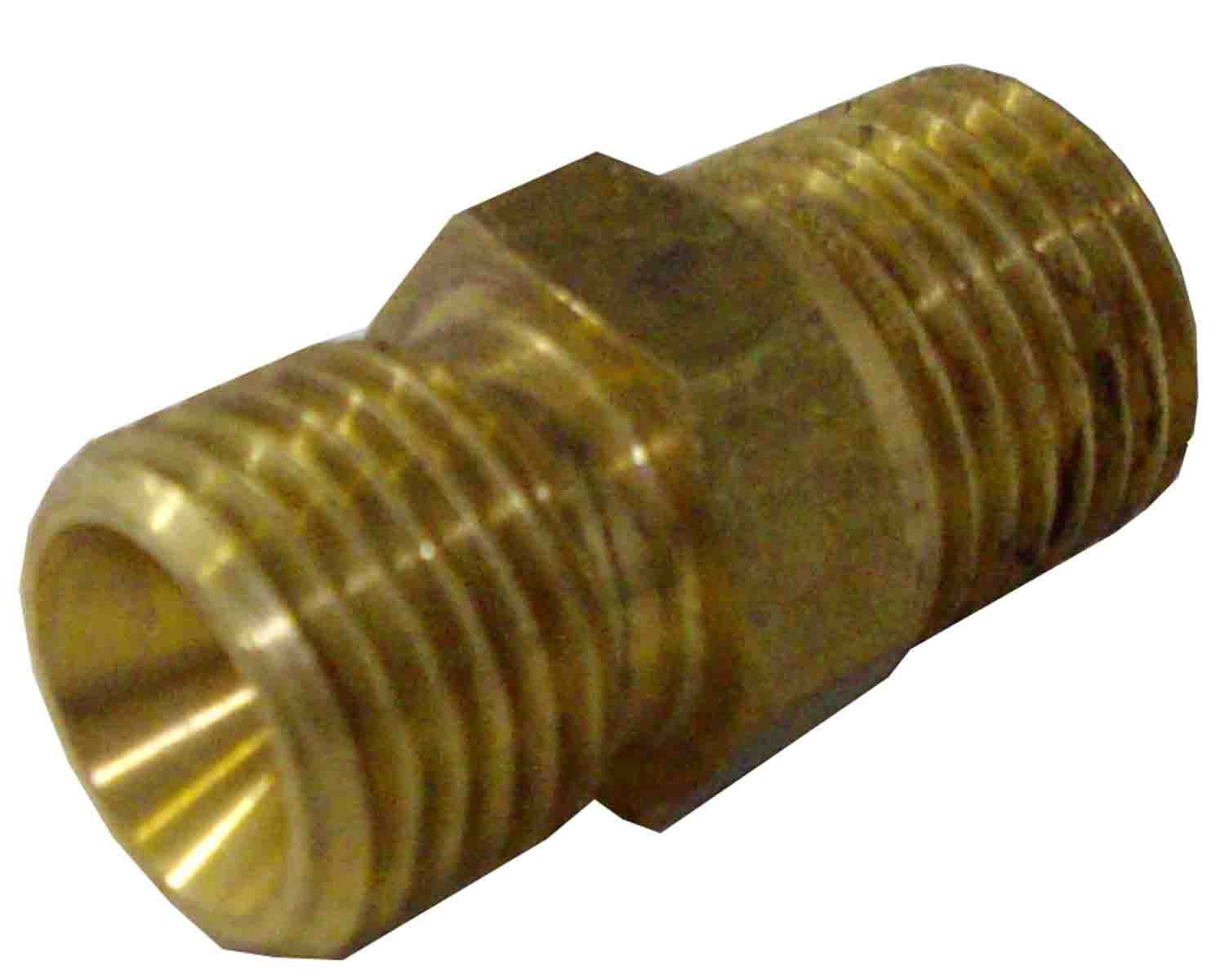

730015

Brass Male Connector 1/4" BSPP x 1/8" BSPT

Material : Brass

Connects Hose #730006 to Solenoid Valve #730016

730016

Solenoid Valve 240V x 3/64 Orifice

Material : Nickle Plated Brass Body

Ports : " BSPT Female  (SCXD264D9 12-9940)

Protection Rating : IP65 Weatherproof Housing

Power Rating : 240VAC 50Hz

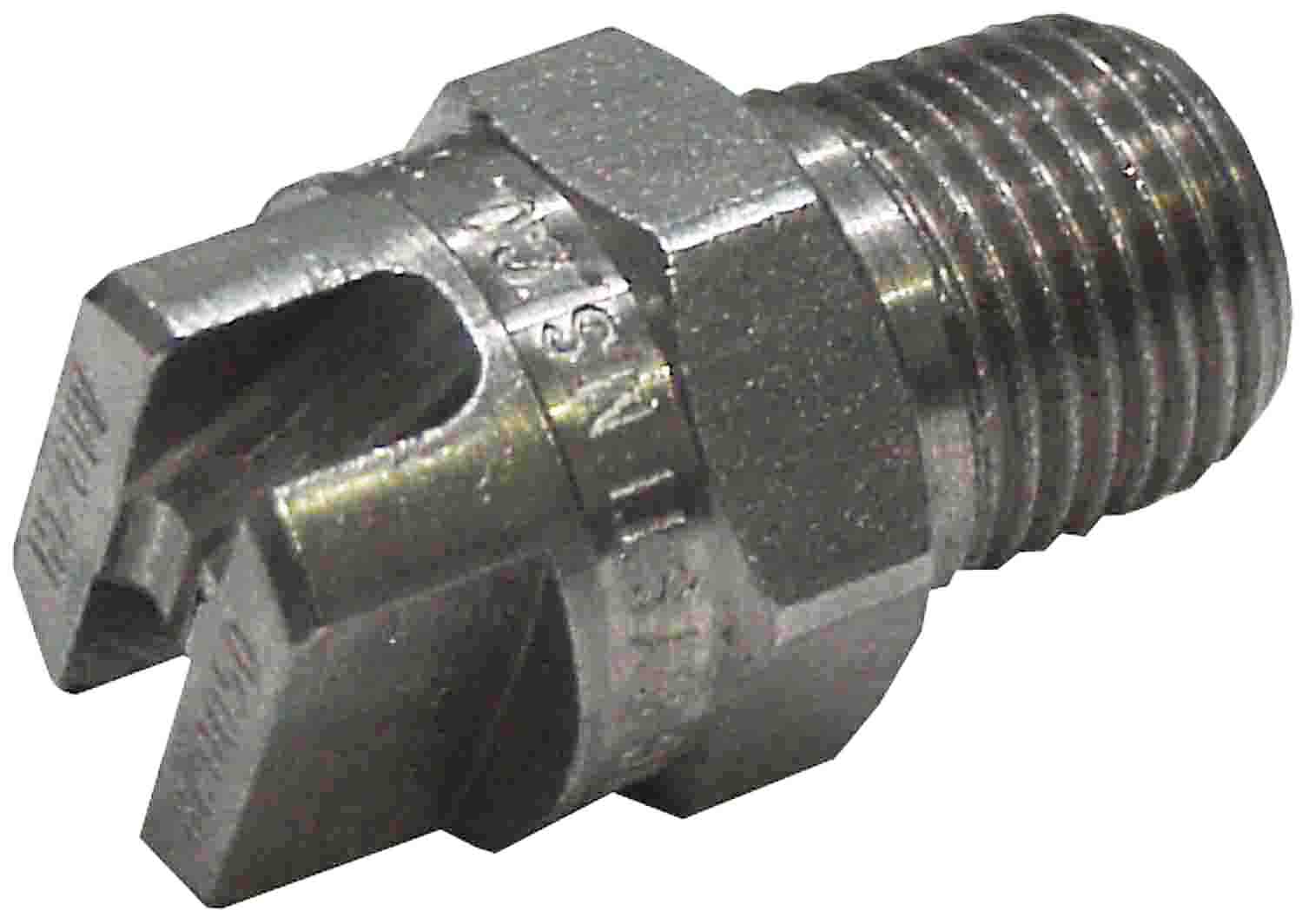

730020

Nozzle 1/8" NPT

Material : Stainless Steel

Nominal Flow Rate : 6 g/s

p3

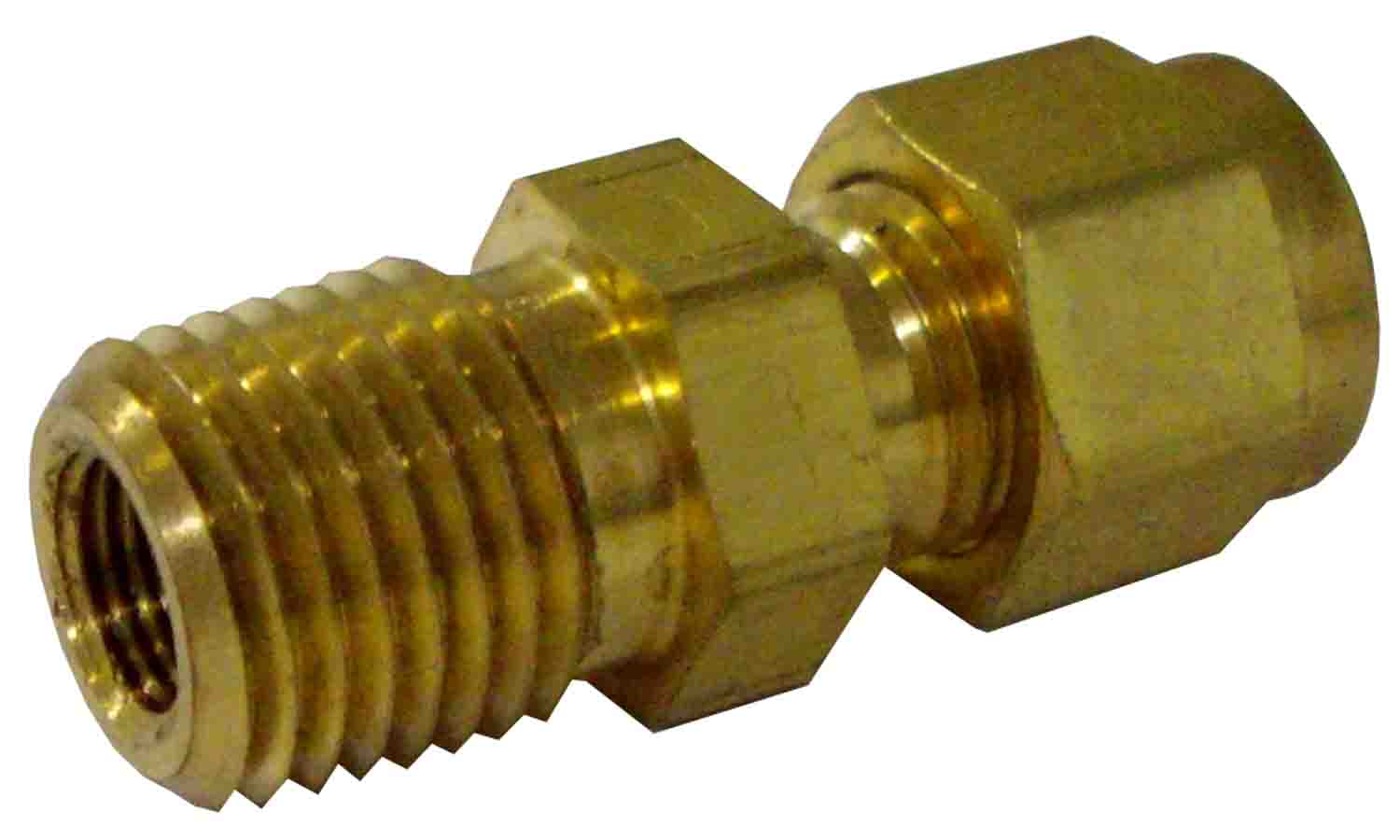

730024

Tubefit Nozzle Adapter

Material : Brass

Connects Nozzle #730025 to 1/4” Aluminium Tube

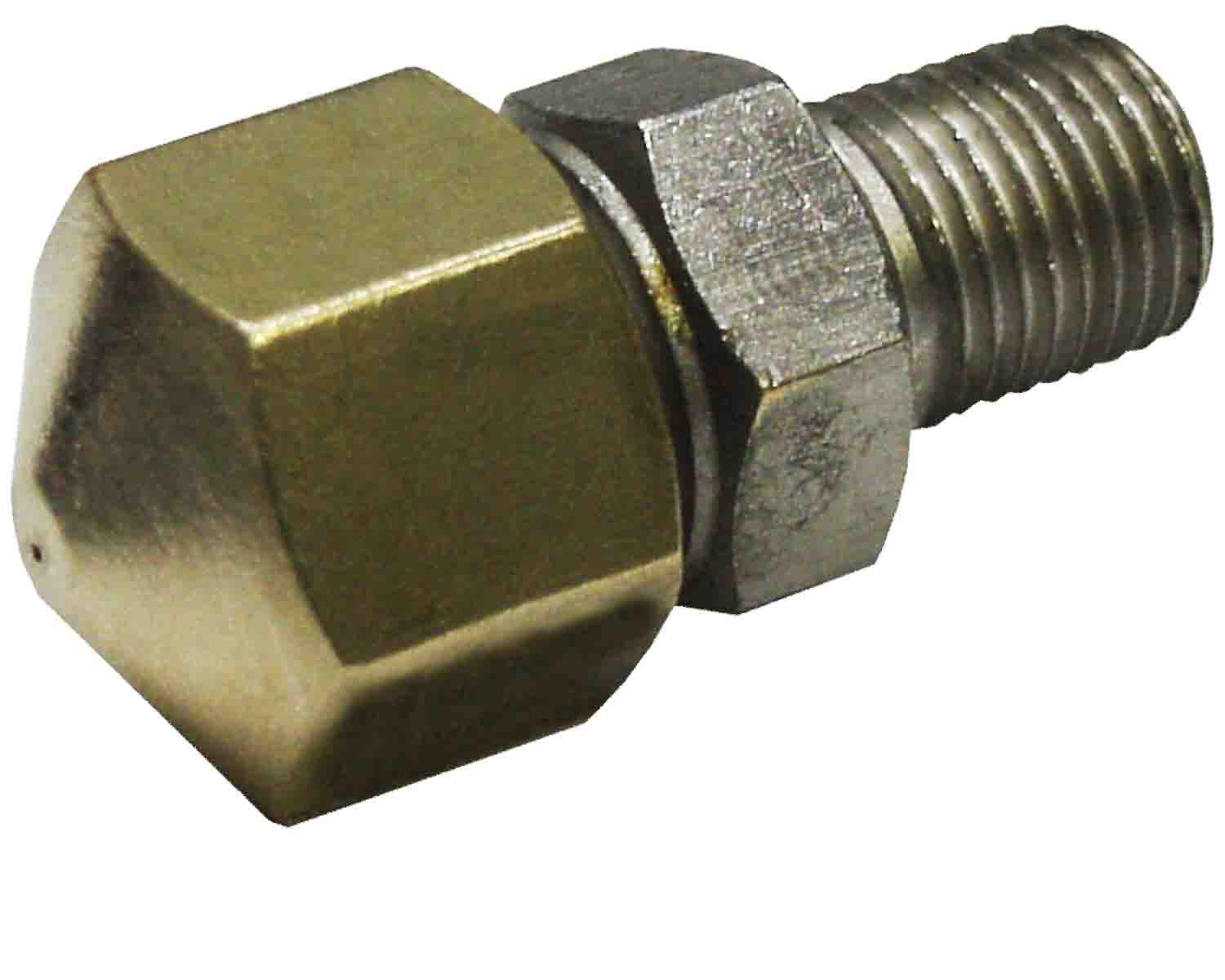

730025

Nozzle Fixed System

Material : Unplated Brass

Includes : #736724 Valve Nozzle Core

Nominal Flow Rate : 9 g/s

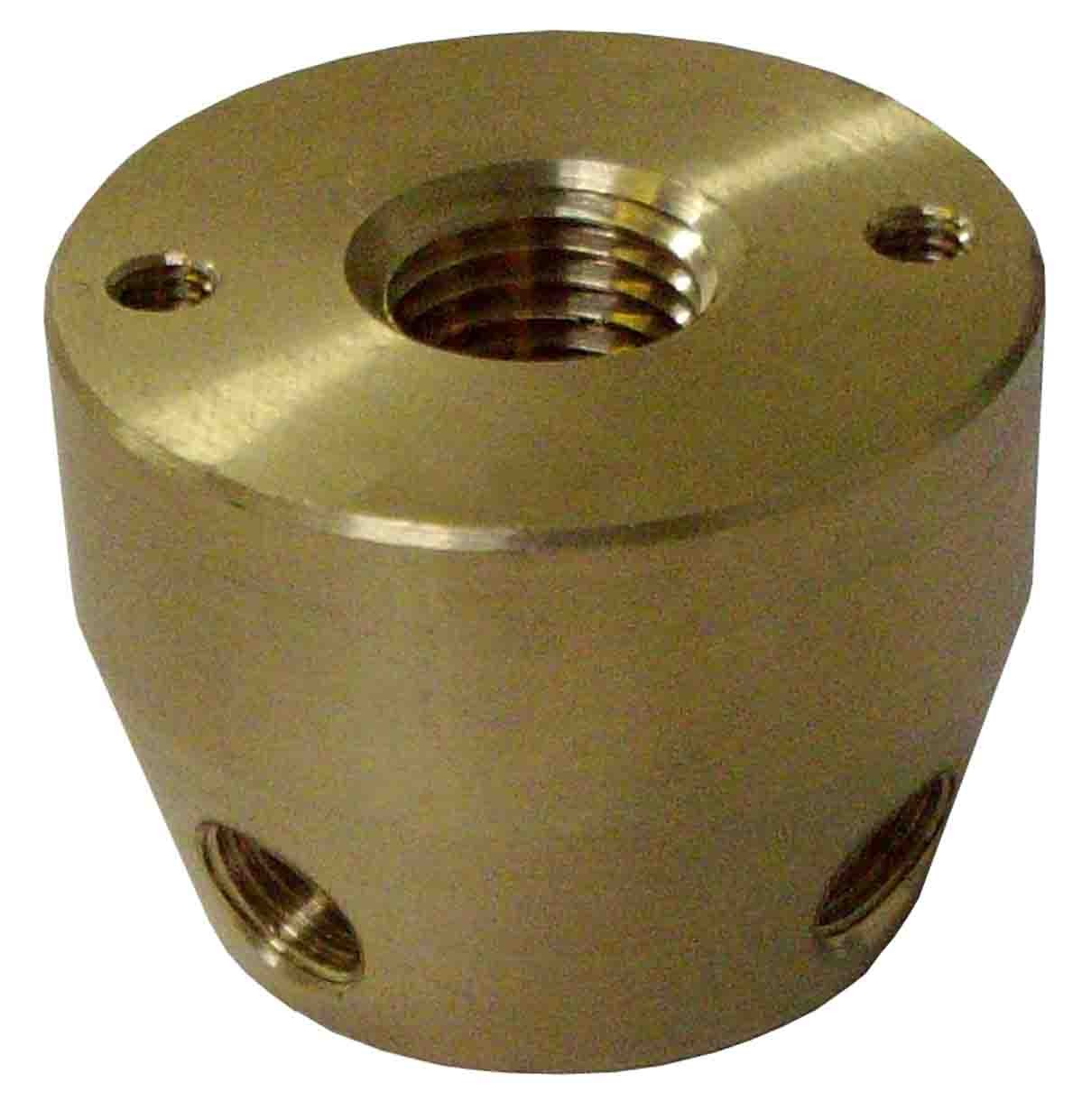

730026

Nozzle Block [4-Way]

Material : Unplated Brass

Used To Mount 4 Nozzles #730025

c/w 2off x Screws M4 x 10Lg

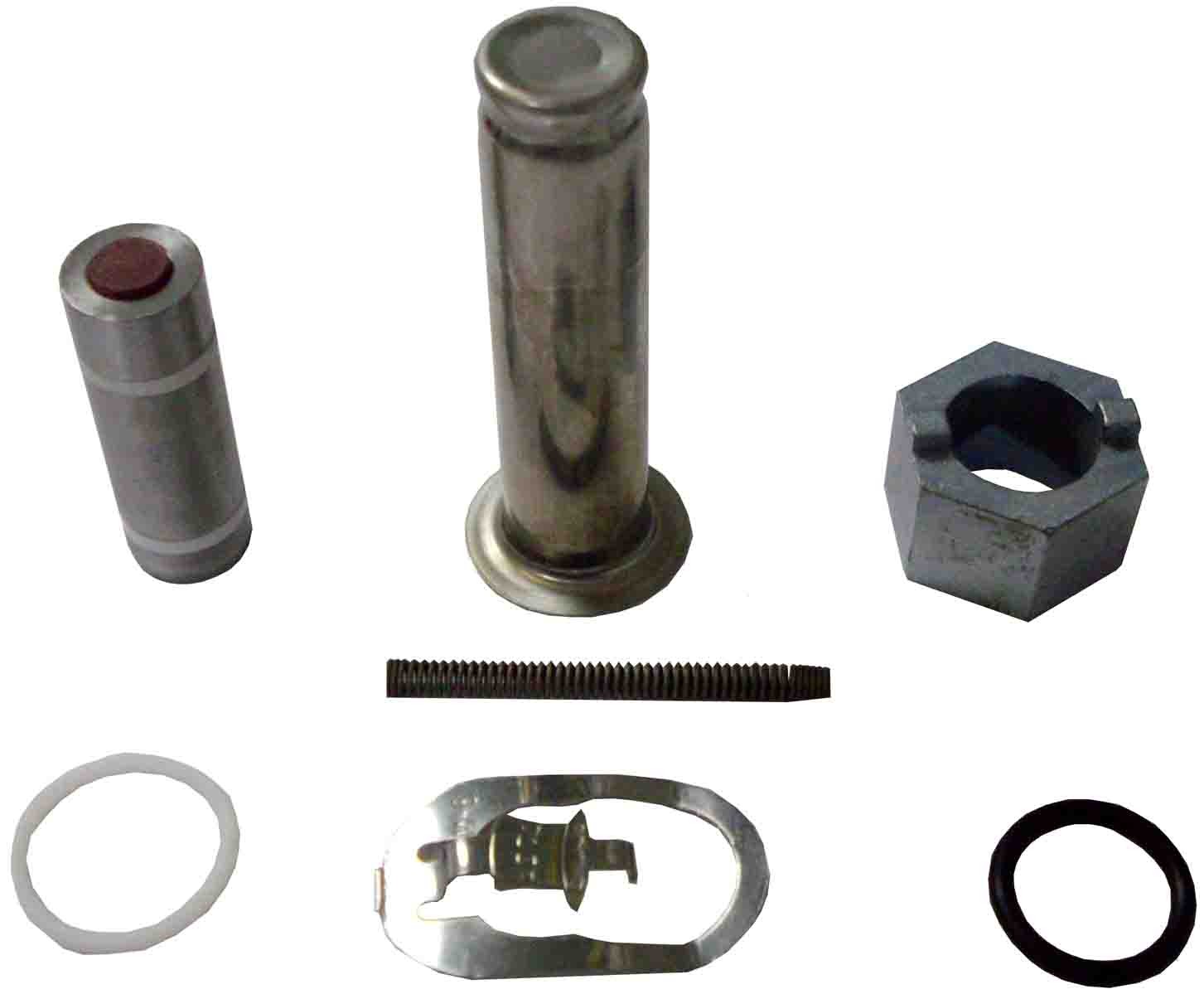

730031

Solenoid Valve Overhaul Kit

Material : Stainless Steel & Teflon Wetted Parts, Steel Plated Socket

Use : To Upgrade and Repair Solenoid Valve #730016

Includes : Core Tube, Spring, & Assembly,  Body Gasket, Socket Spanner, Retaining Clip

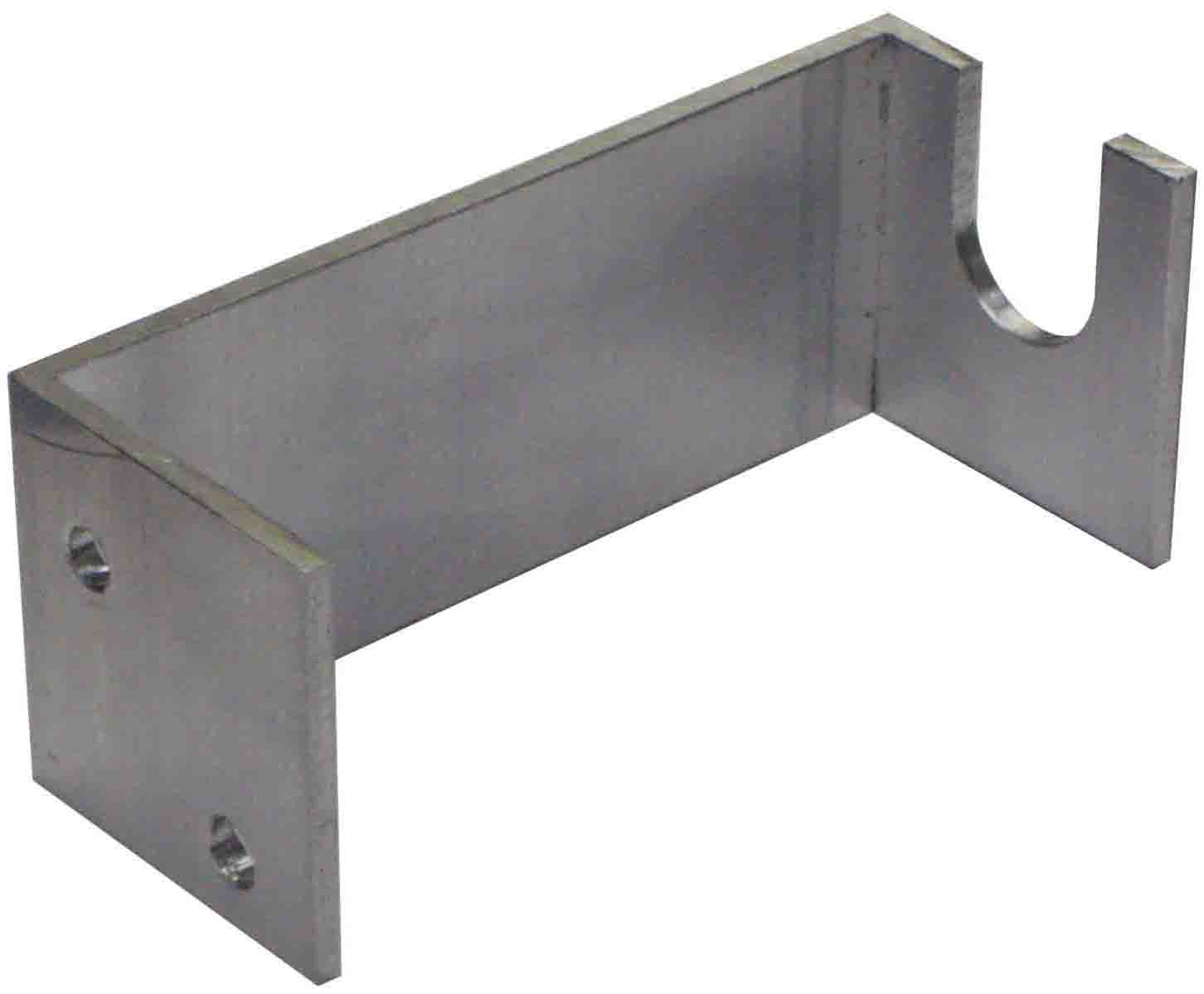

730033

Solenoid Bracket 1/8"

To Suit : Solenoid #730016

Material : Anodised Aluminium

730034

1/4" Aluminium Tube 30m Lg

Annealed Aluminium 1/4" OD x 1.2mm Wall

Suitable For Envirosol Gases, & Low Pressure

ECO2Fume Gas. Not Suitable For ECO2Fume Liquid.

Weight 1.4kg/30m Roll, Burst Pressure of 30 mPa

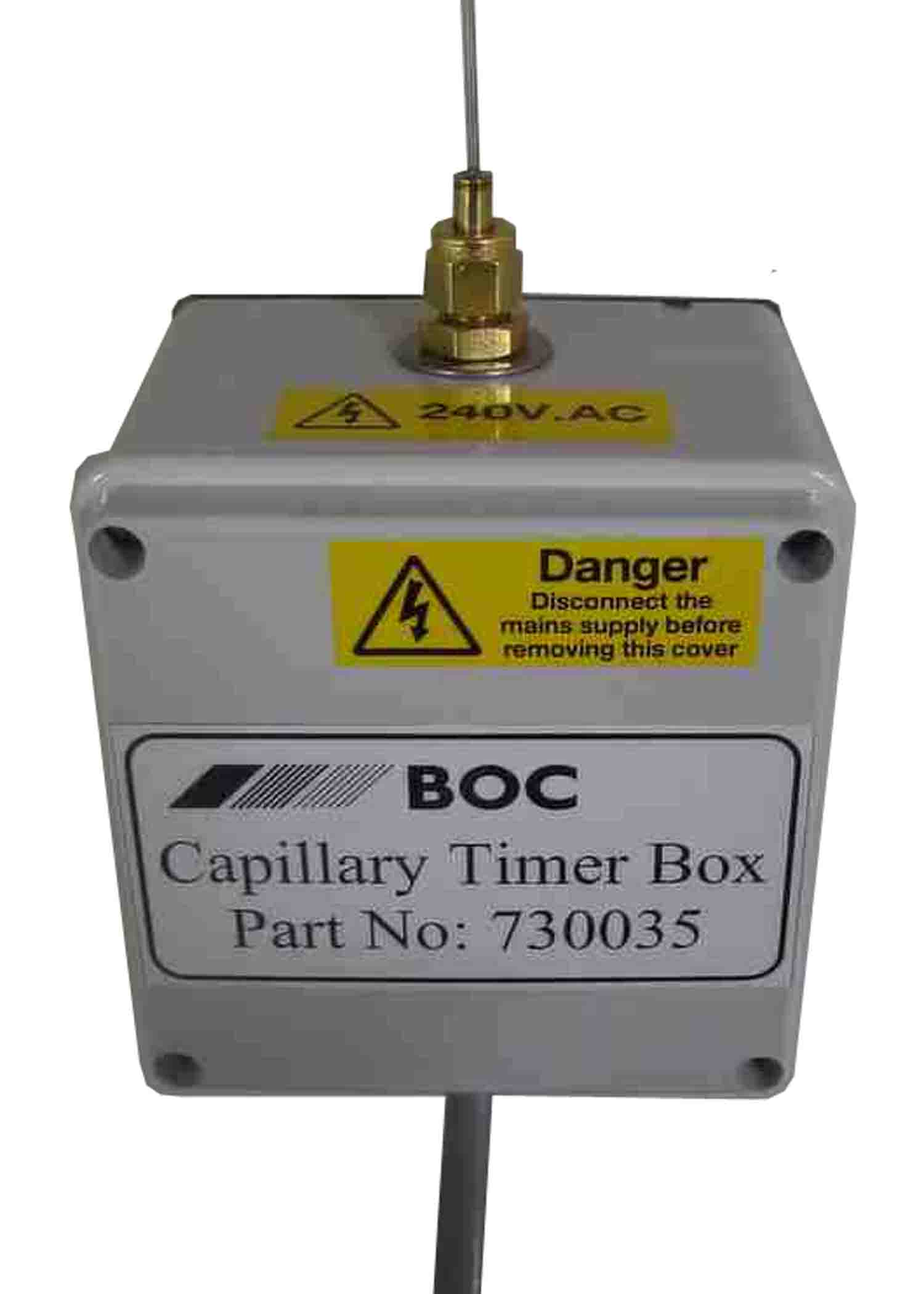

730035

Capillary Timer Box 24VDC

730036

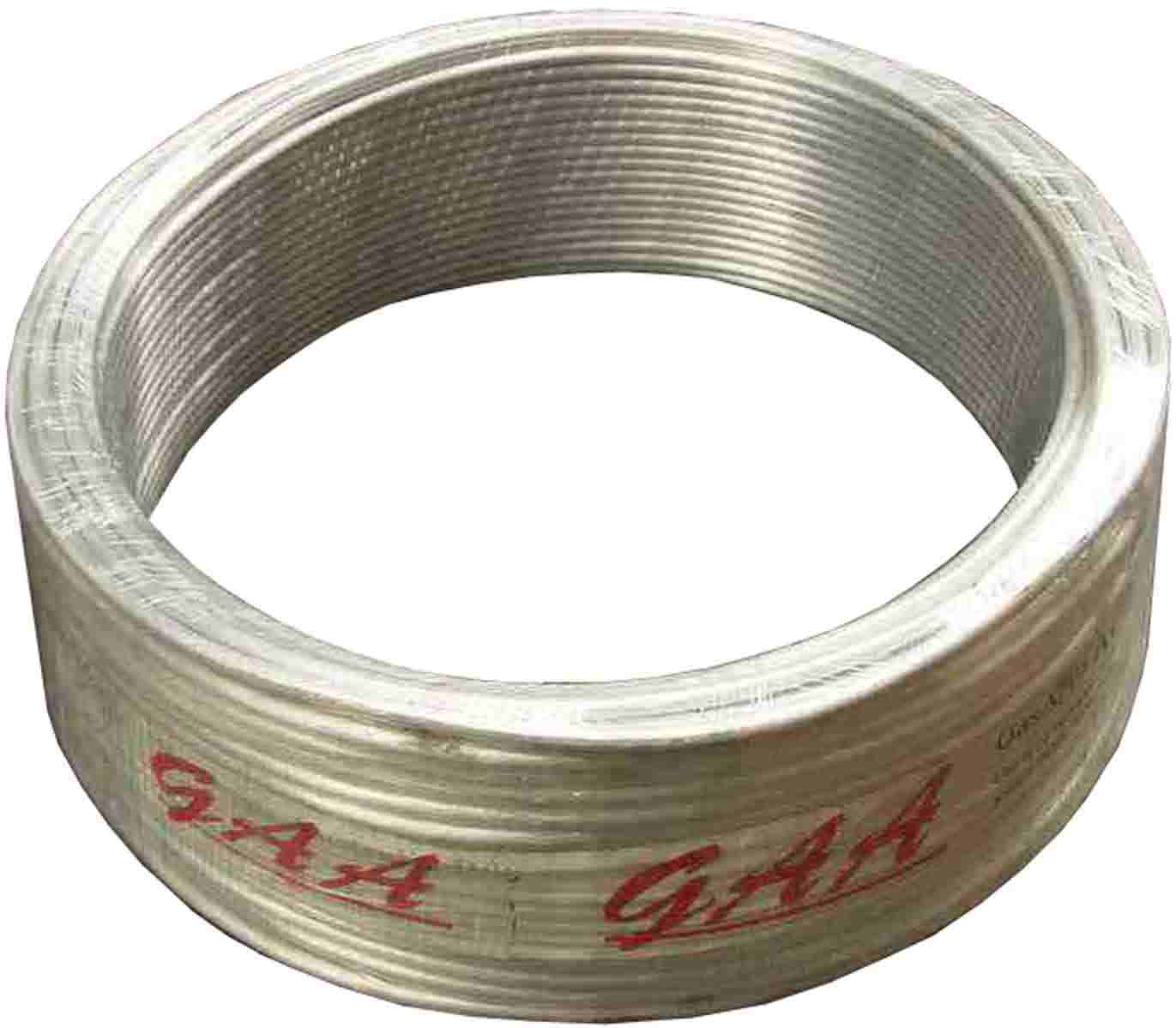

1/4" Aluminium Tube 100m Lg   [4.6kg]

Annealed Aluminium 1/4" OD x 1.2mm Wall

Suitable For Envirosol Gases, & Low Pressure

ECO2Fume Gas. Not Suitable For ECO2Fume Liquid.

Weight 4.6kg/100m Roll, Burst Pressure of 30 mPa

p4

731001

Dose Fill Connector Pestigas

Material : Brass

Use : Refilling Envirosol Dose Gun with Pestigas

Includes : Nut #73004, Spigot #730002, Washer #RG134

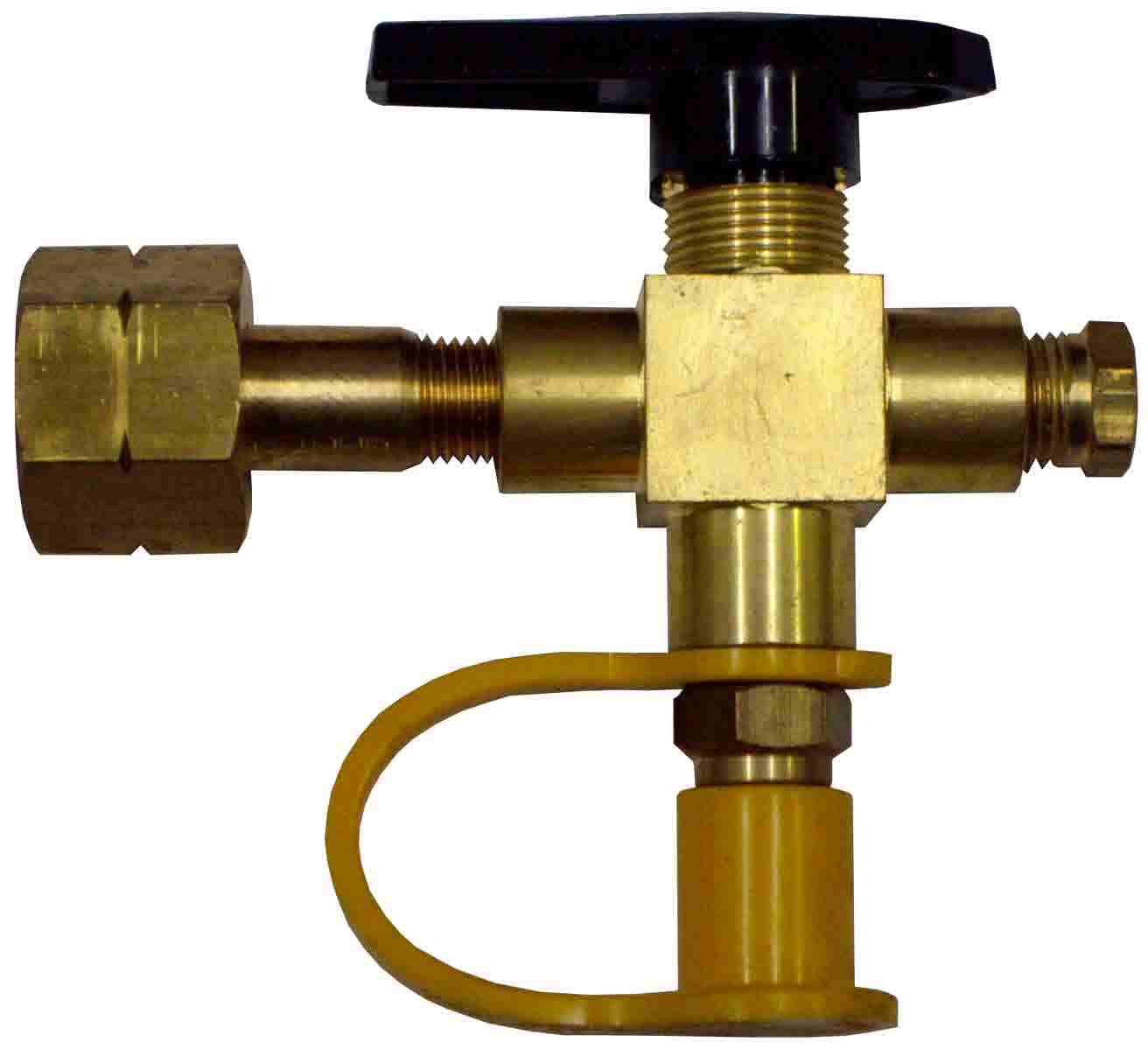

731002

Dose Fill Connector Insectigas

Material : Brass

Use : Refilling Envirosol Dose Gun with Insectigas

Includes : Nut #730004, Spigot #730002, Washer #RG134

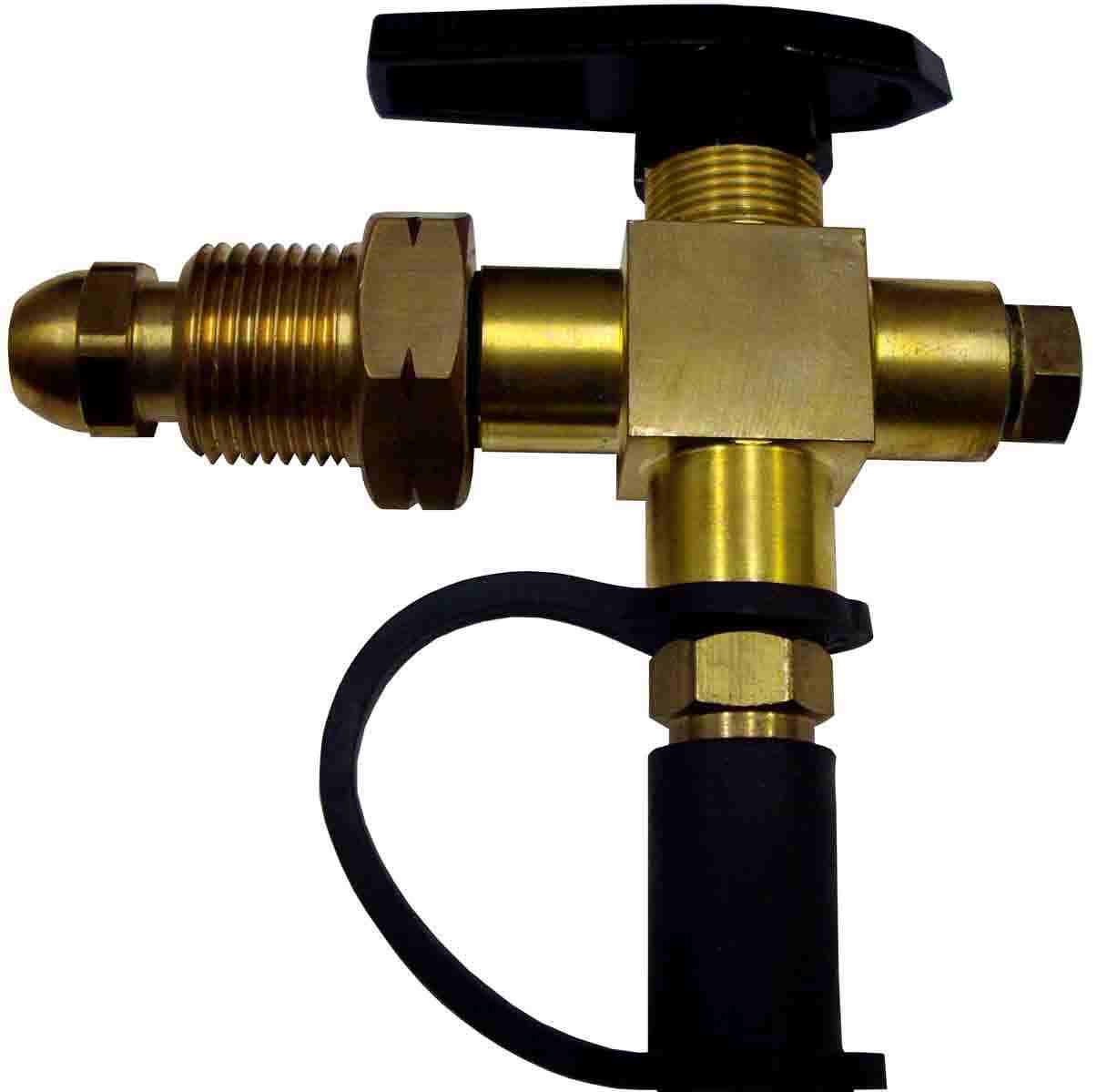

731003

Dose Fill Connector Deodourgas

Material : Brass

Use : Refilling Envirosol Dose Gun with Deodourgas

Includes : Nut #302625, Spigot #730000

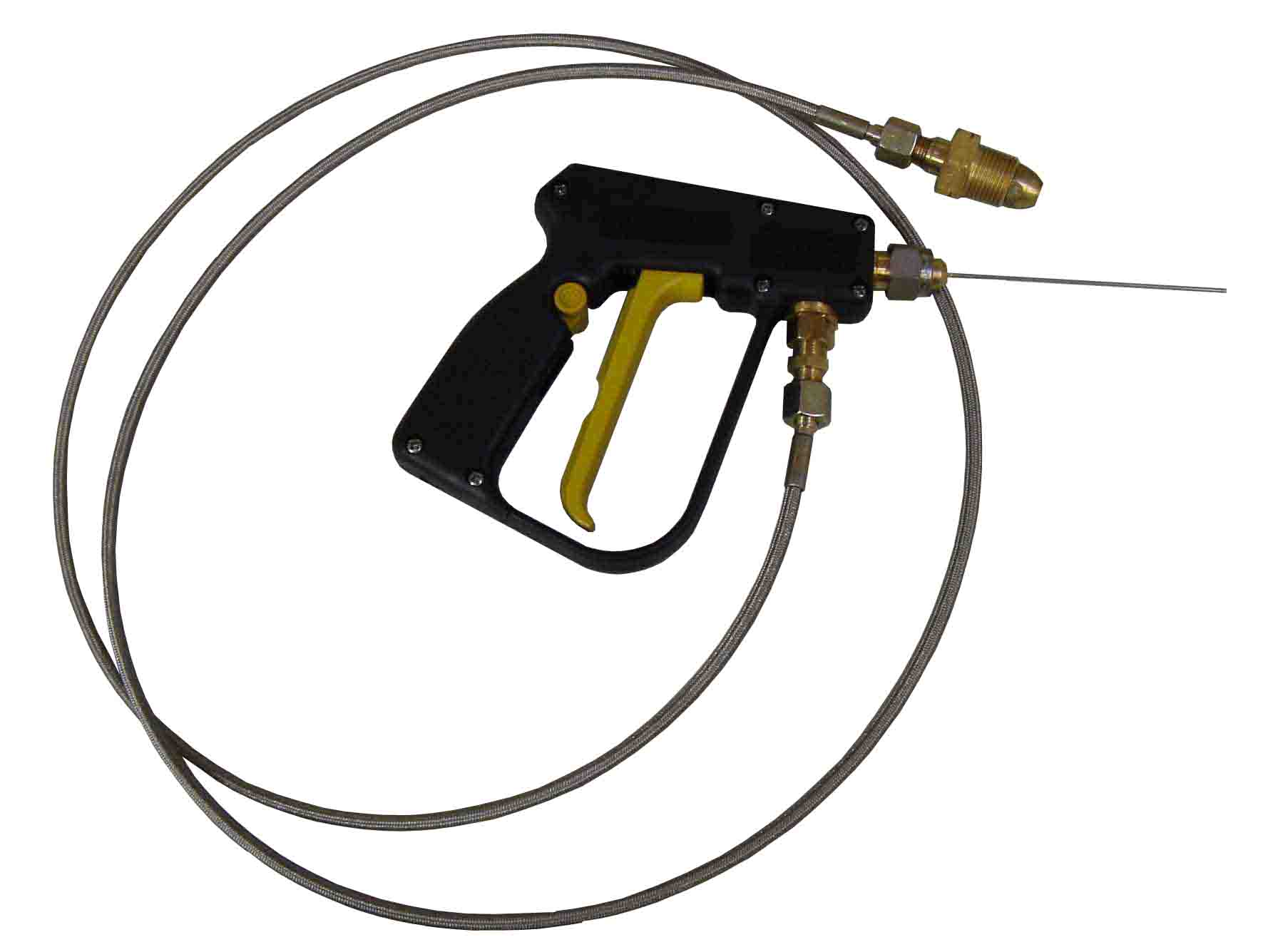

731020

Bactigas Auto Hand Gun Kit

Includes Gun, 2m Hose, Nut & Spigot

Nozzle [3 g/s], Crack & Crevise, Pack of 5 Nozzle Inserts. Also suitable for Deodourgas & Ripegas

736459

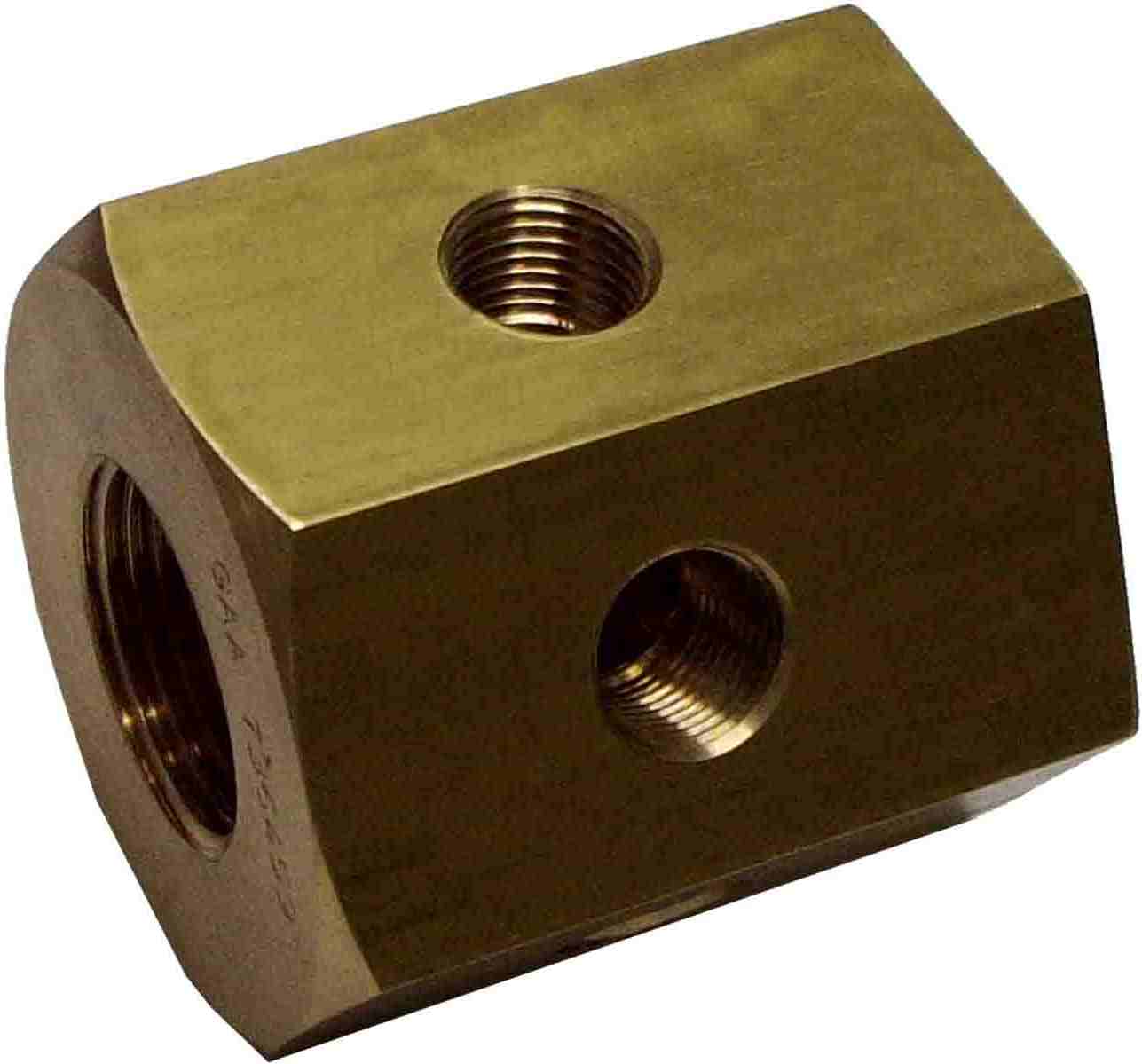

Brass Hex Manifold Block 6 Point

Material : Brass

Use : Connecting 6 Envirosol Hoses,

Includes : Hex Block c/w 2off x Mounting Screws

Note : Filter #736460 Can Be Fitted Into This Housing

p4

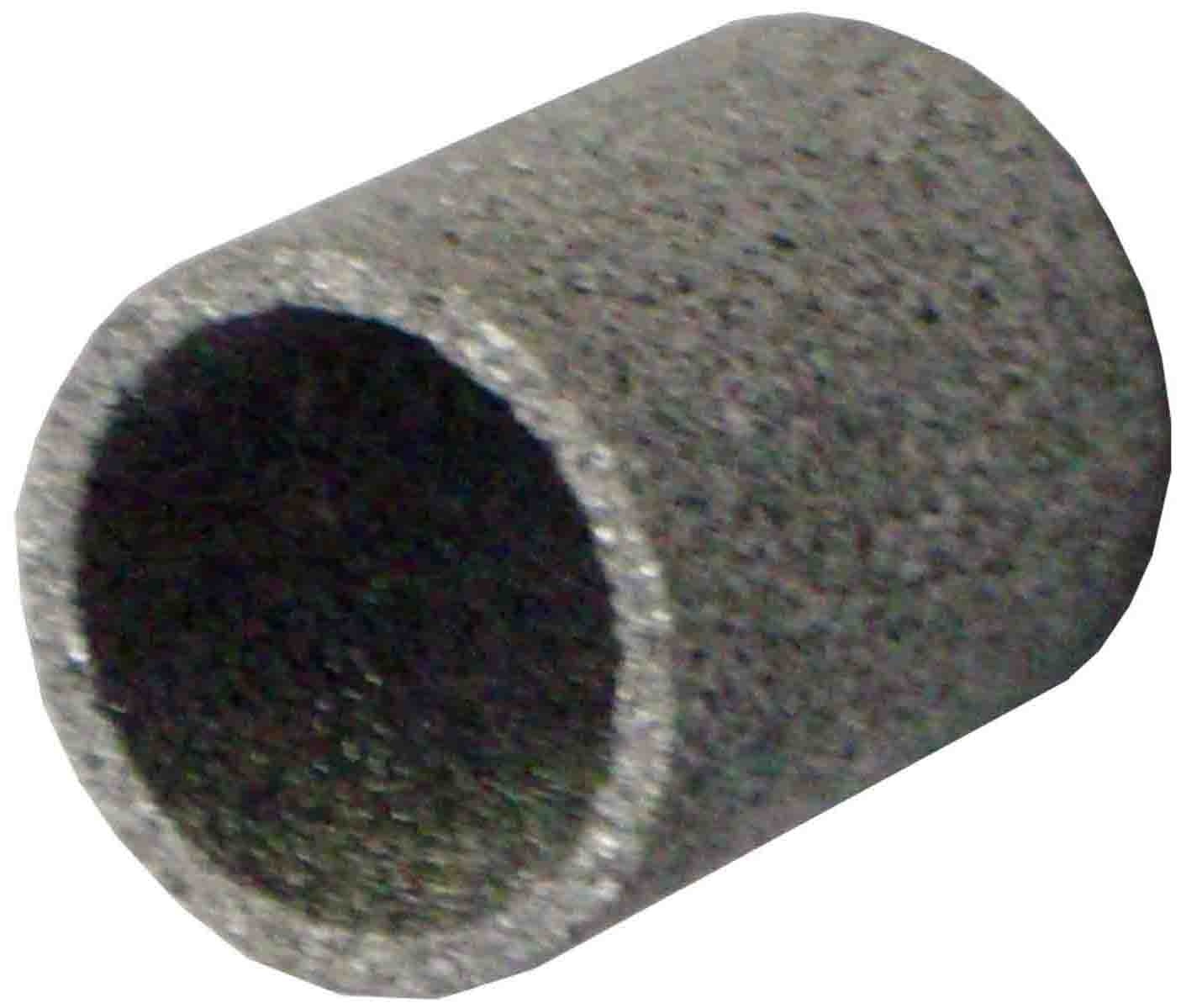

736460

90 Micron S'Steel Filter Element

Material : Sintered Stainless Steel

Use : With Manifold #736459 or Filter Housing #736698

Includes : Filter Element Only

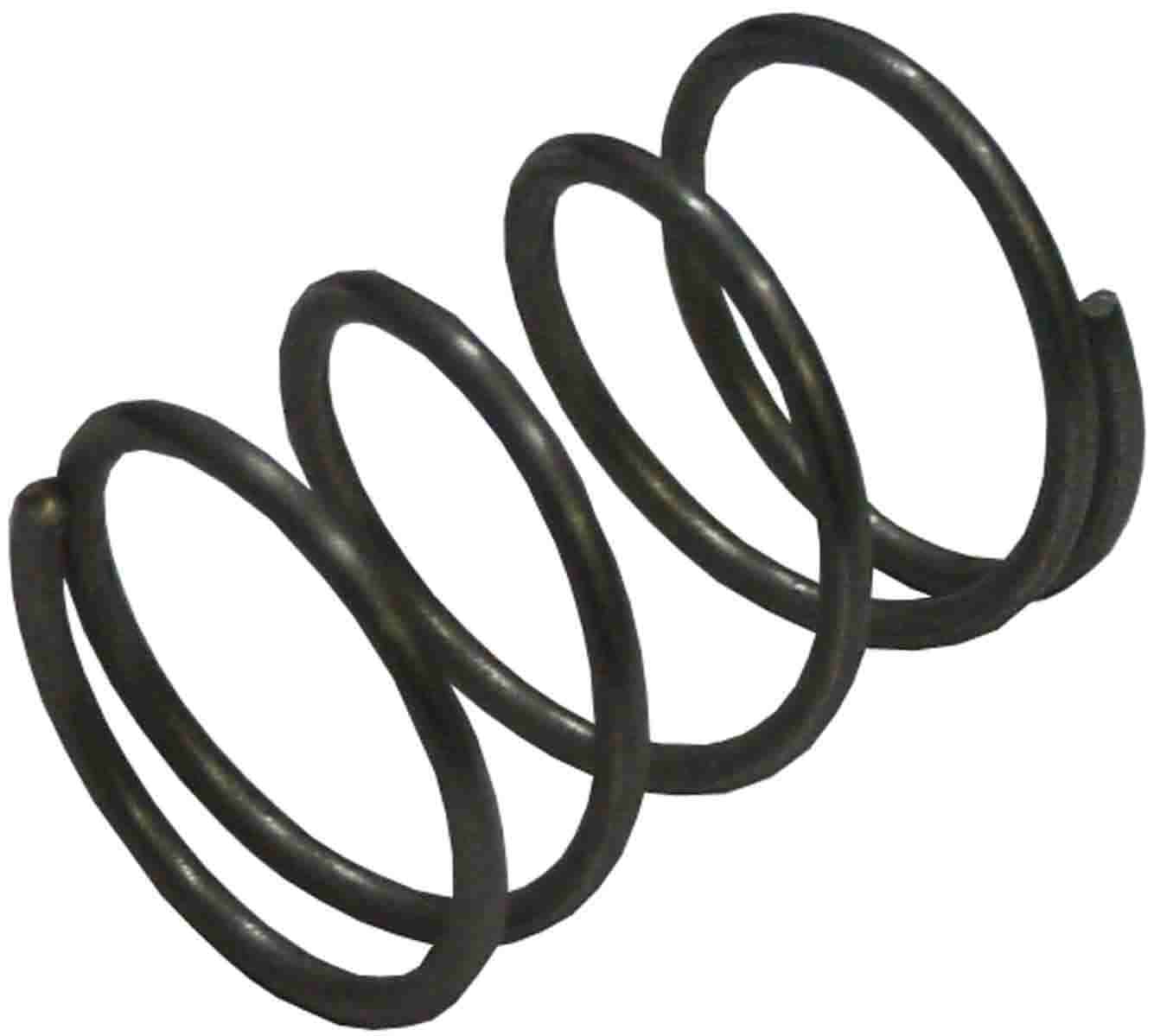

736461

Filter Element Retaining Spring

Material : Stainless Steel %%c1/2" x 3/4" Lg x 0.042" Wire

Use : Secures Sintered Filter #736460 in Manifold #736459

Includes : Spring Only

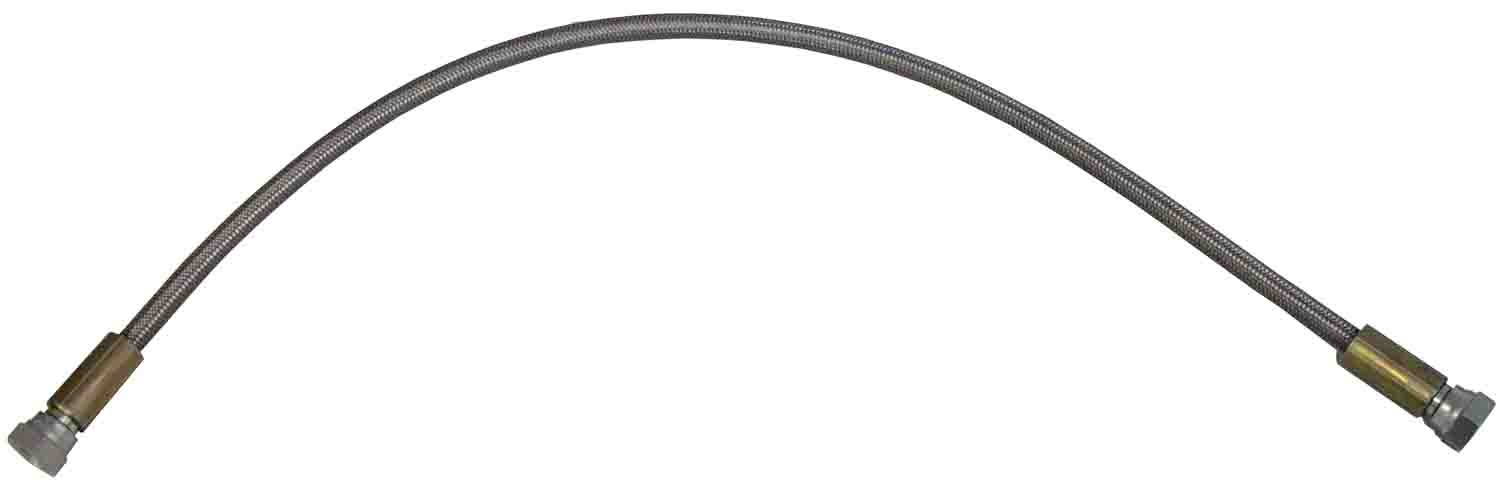

736588

Envirosol Hose 1/4"OD X 610mm Lg

Material : Stainless Steel Braided Teflon

Ends : 1/4" BSPP Female Swivel Both Ends

p5

736620

Gun Nozzle Seal

Material : Nylon, 10 ID, 15 OD, 1.2 Thick

Use : Nozzle To Envirosol Gun Sealing Washer

Includes : Spring Only

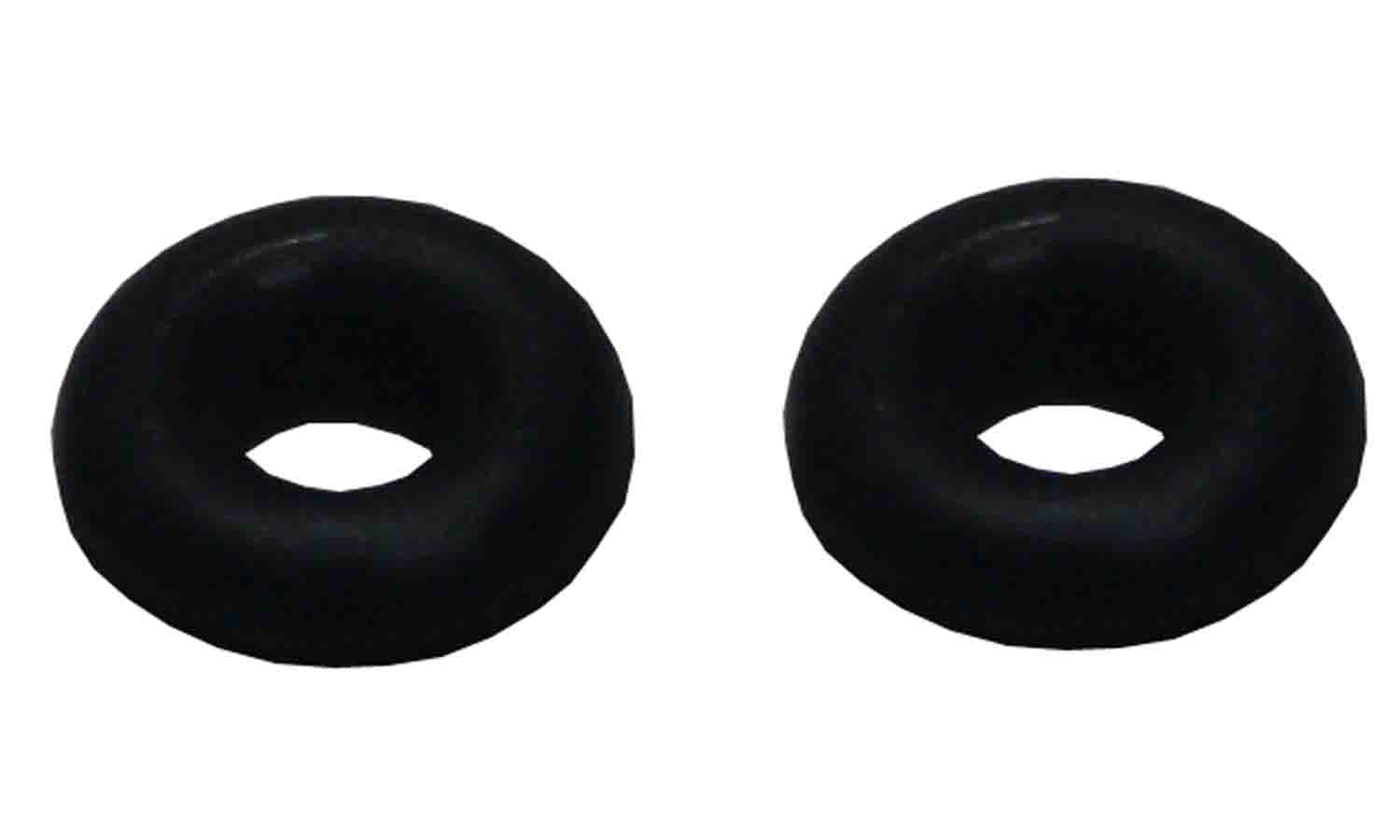

736630

Seal For Envirosol Gun

Material : EPDM Rubber

Use : Replacement Seals For Envirosol Gun #736679

Includes : Two "O" Rings Only

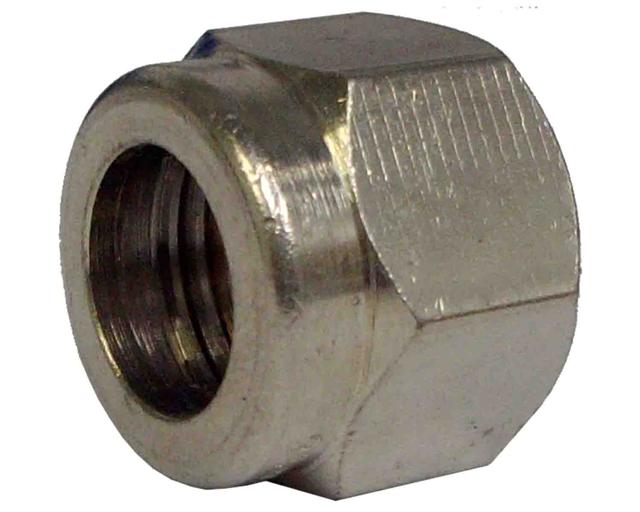

736633

Retaining Cap Steel Nickle Plated

Material : Nickle Plated Brass

Use : Replacement Cap For Envirosol Gun #736679

Includes : Cap Only

736635

Pestigas Gun Kit

Includes Gun, 2m Hose, Nut & Spigot

Nozzle #736685 [3 g/s]

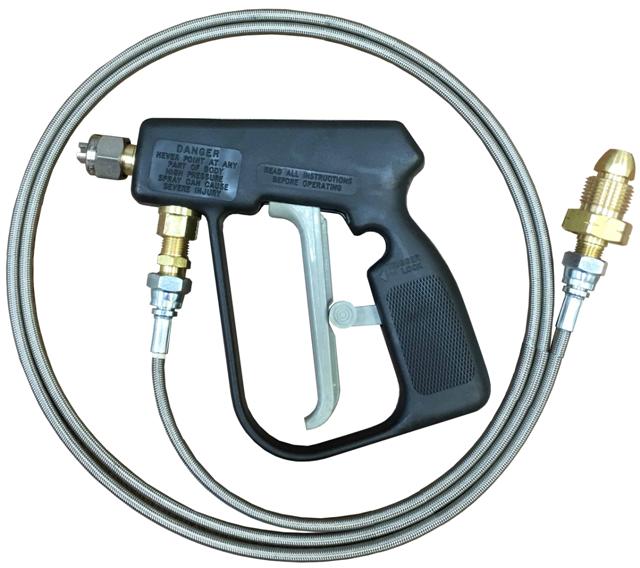

736636

Deodourgas/Bactigas Gun Kit

Includes Gun #736679, 2m Hose #730006, Nut & Spigot #736675

Nozzle  #736686 [17 g/s]



736638

Space Control Module MKIII

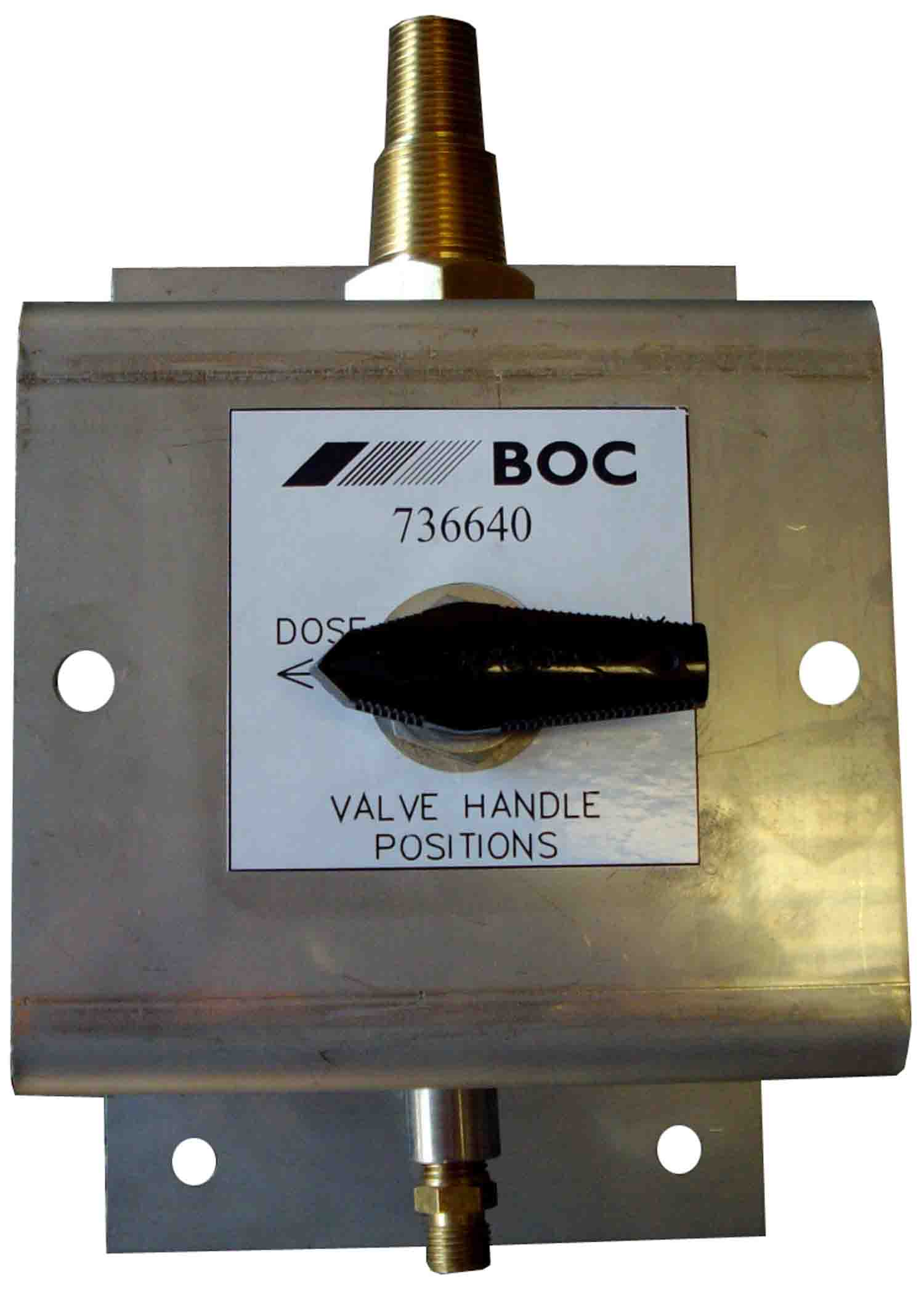

736640

Manual Space Control Module

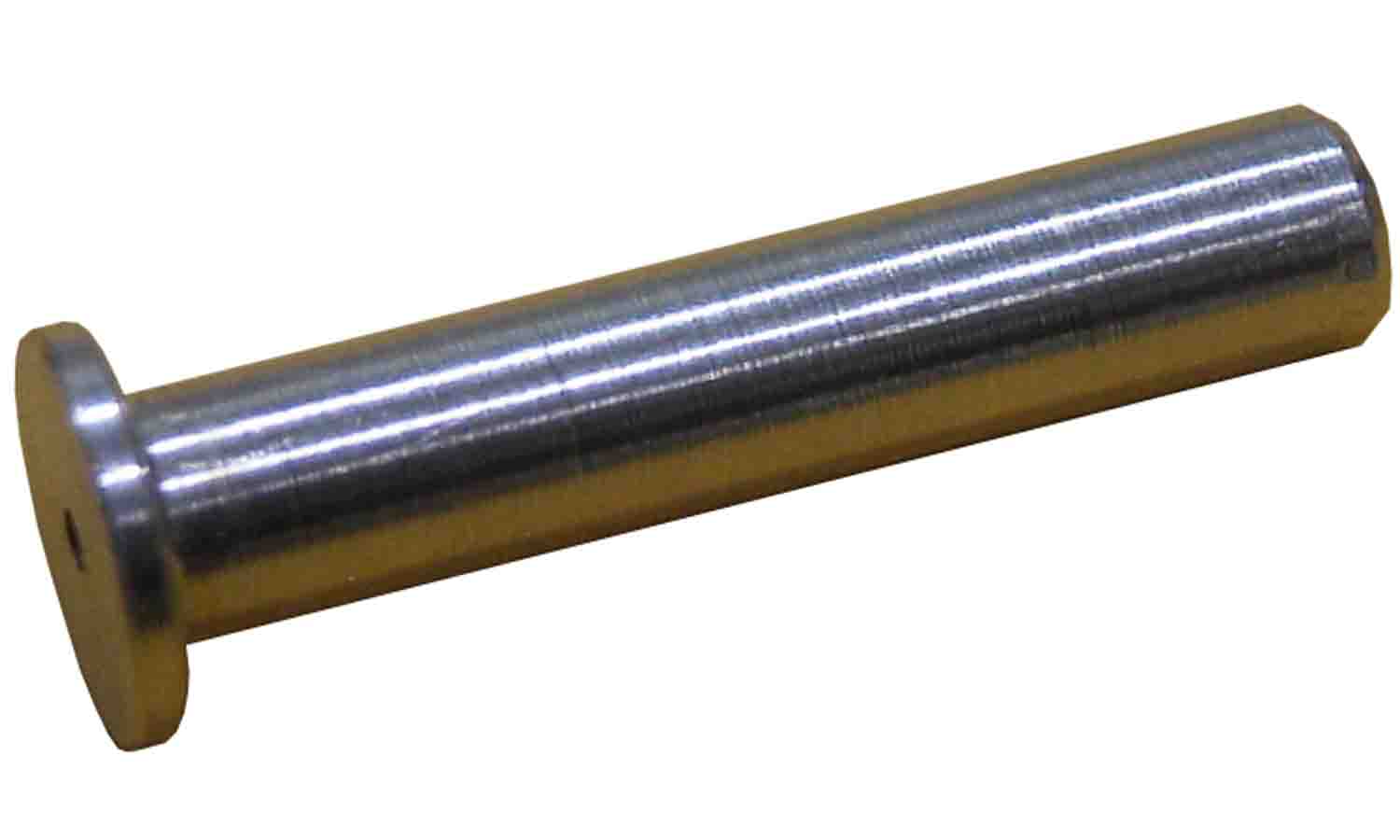

736648

Restrictor 1.0mm

Material : Non Plated Brass

Use : Is Swaged on to (via a Swagelok Fitting) the end of " Aluminium

Tube to Restrict the flow of liquid into a Dose Cylinder #737362.

Should be Inserted into the Supply Port Fitting of the 3-Way Ball Valve

Includes : Restrictor Only

p5

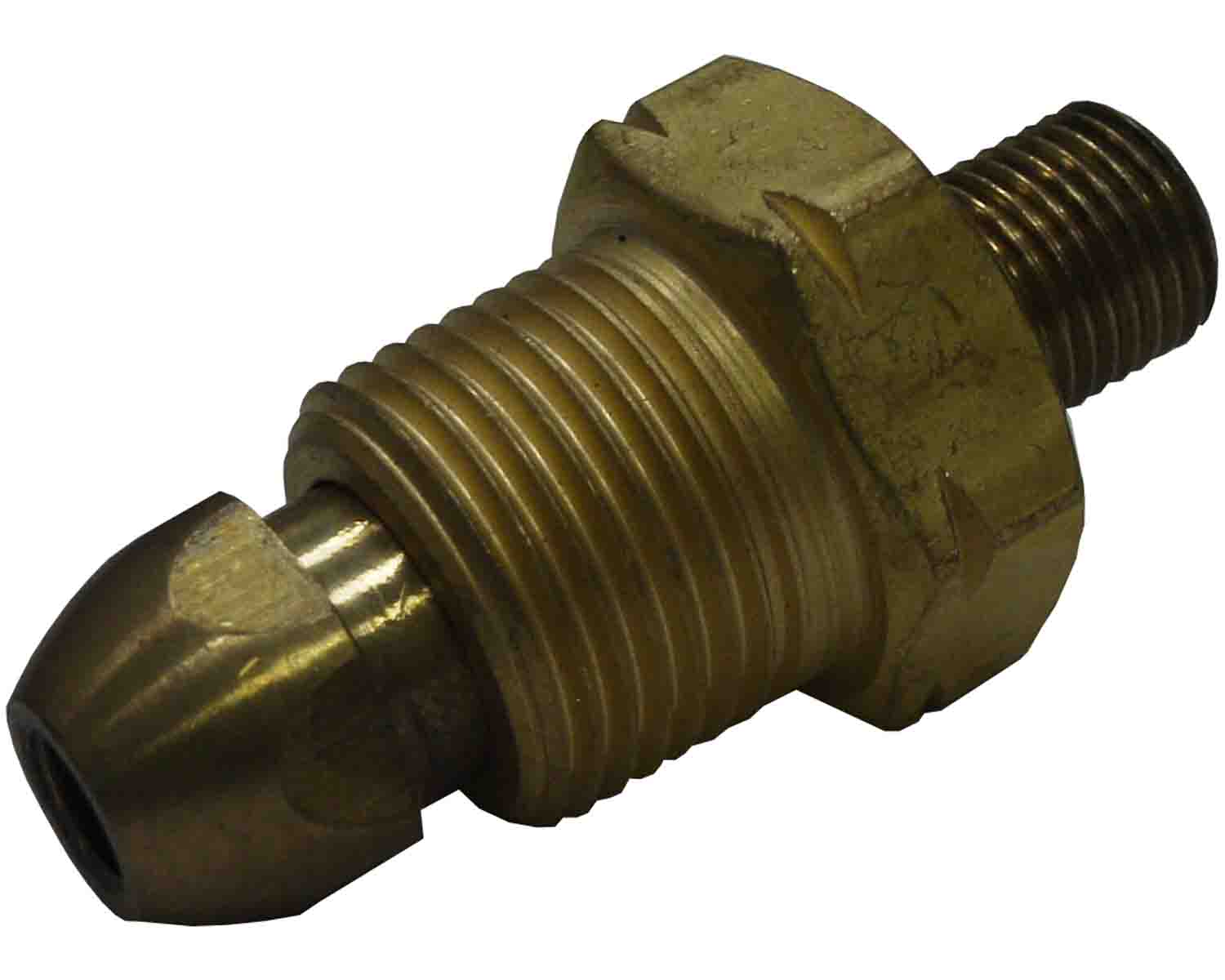

736675

Deodourgas/Bactigas Nut & Spigot

Material : Non Plated Brass

Use : Connects Hose#730006 or #736588 to a Deodourgas Cylinder

Includes : Nut #302625 & Spigot #730000 Only

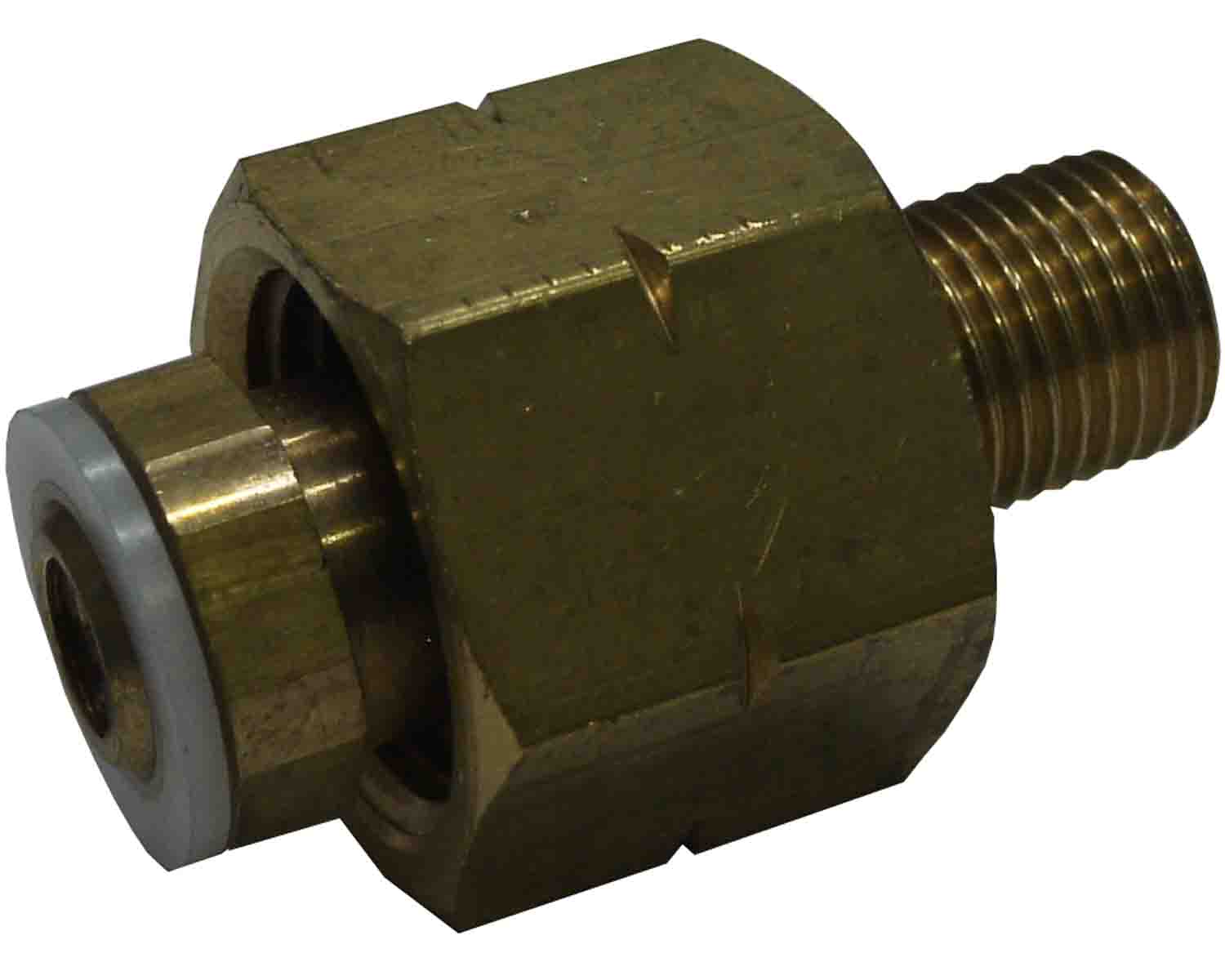

736676

Pestigas Nut & Spigot

Material : Non Plated Brass

Use : Connects Hose#730006 or #736588 to a Pestigas Cylinder

Includes : Nut #730004, Spigot #730002 & Washer #RG134 Only

736677

Insectigas Nut & Spigot

Material : Non Plated Brass

Use : Connects Hose#730006 or #736588 to a Insectigas Cylinder

Includes : Nut #730005, Spigot #730002 & Washer #RG134 Only

p6

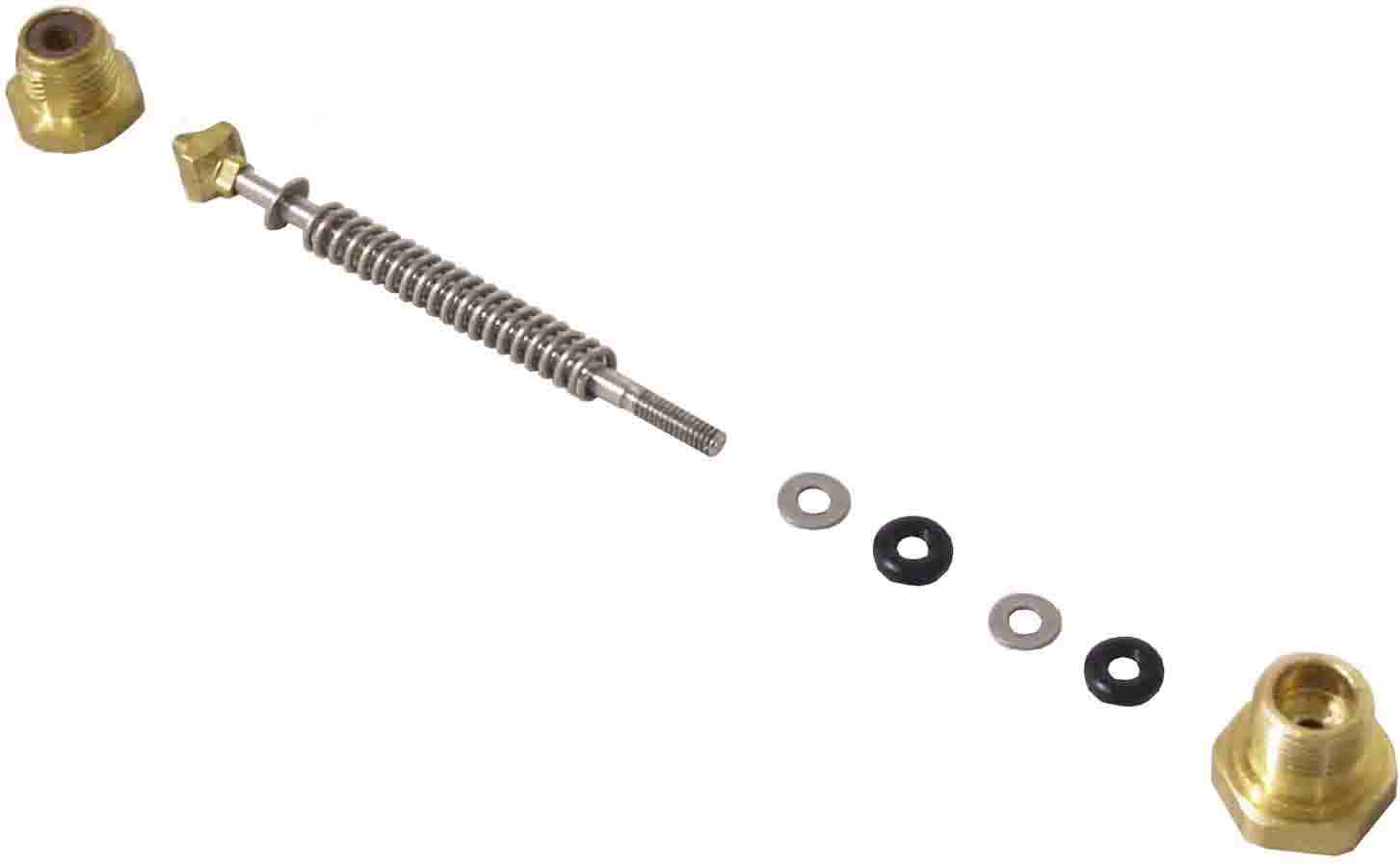

736678

Envirosol Gun Recondition Kit

Material : Stainless Steel & Brass

Use : To Upgrade and Repair Envirosol Gun #736679

Includes : Front Seal #737125, Spindle, Spindle Spring

              2off Washers, 2off "O" Rings & Back Cap

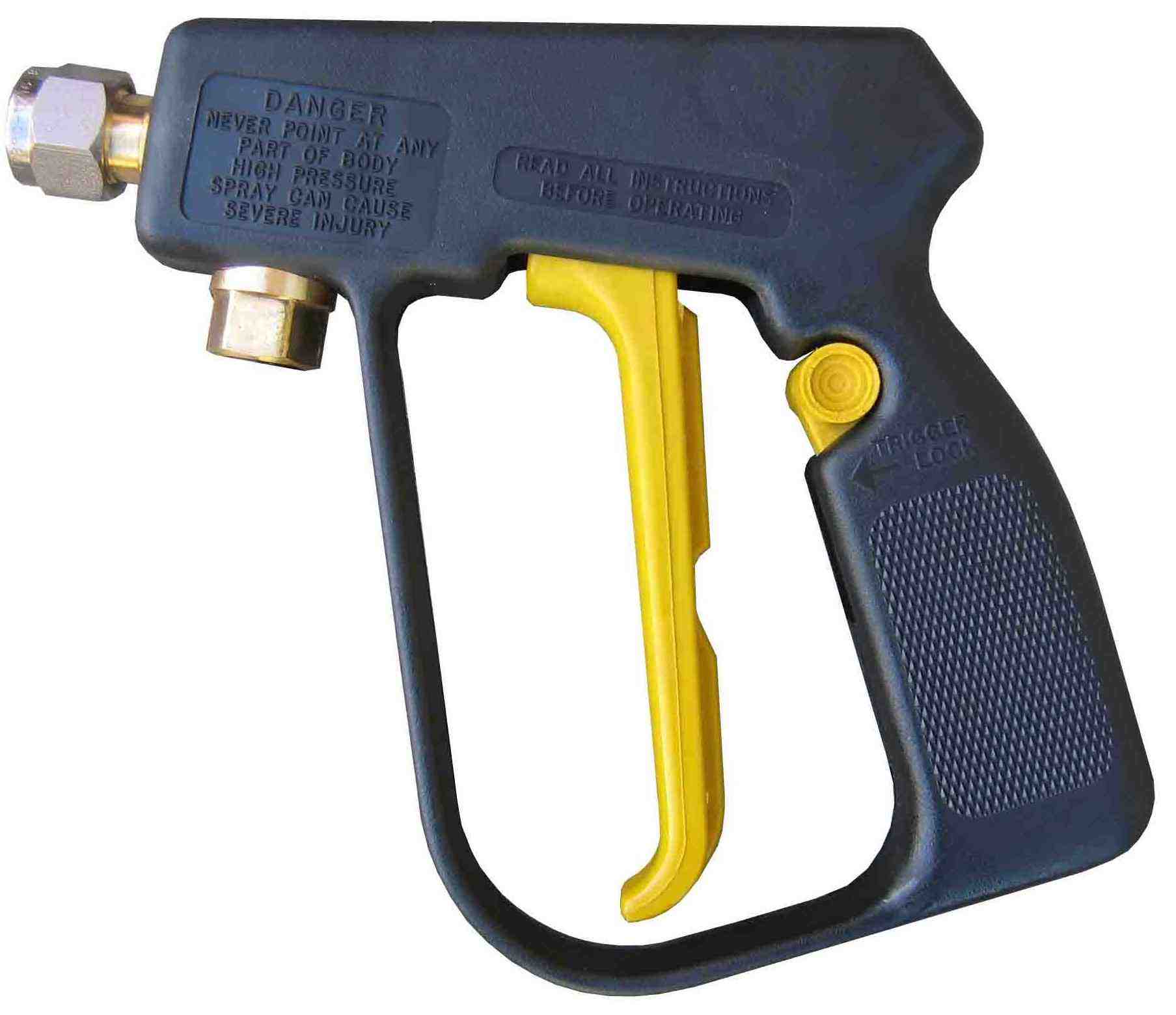

736679

Envirosol Hand Gun

Material : Brass Housing, Plastic Casing

Use : Insectigas, Pestigas, Deodourgas, Bactigas Dispensing

Includes : GunJet30, Seal Kit #736630, Nozzle Cap #736633

                Nozzle Seal #736620

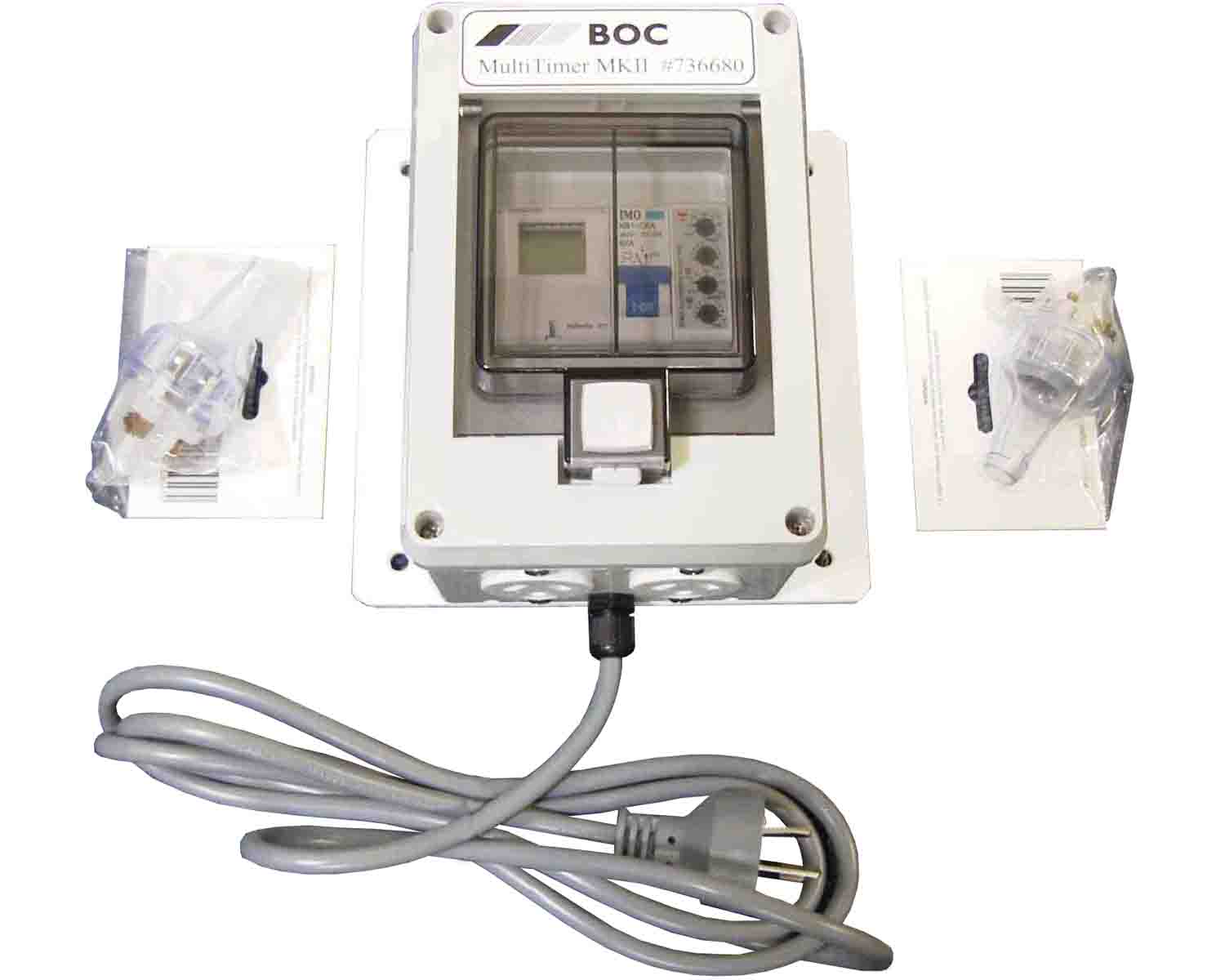

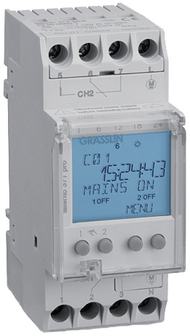

736680

Solitaire Timer (MultiTimer)

This kit is supplied with a digital weekly timer #737238 & a recycle timer. The unit is designed to pulse two solenoid valves & is programmable from 0.1s to 300h. It is supplied with 4 rear mounting holes, 2m Power lead & 2 solenoid plugtops.

736682

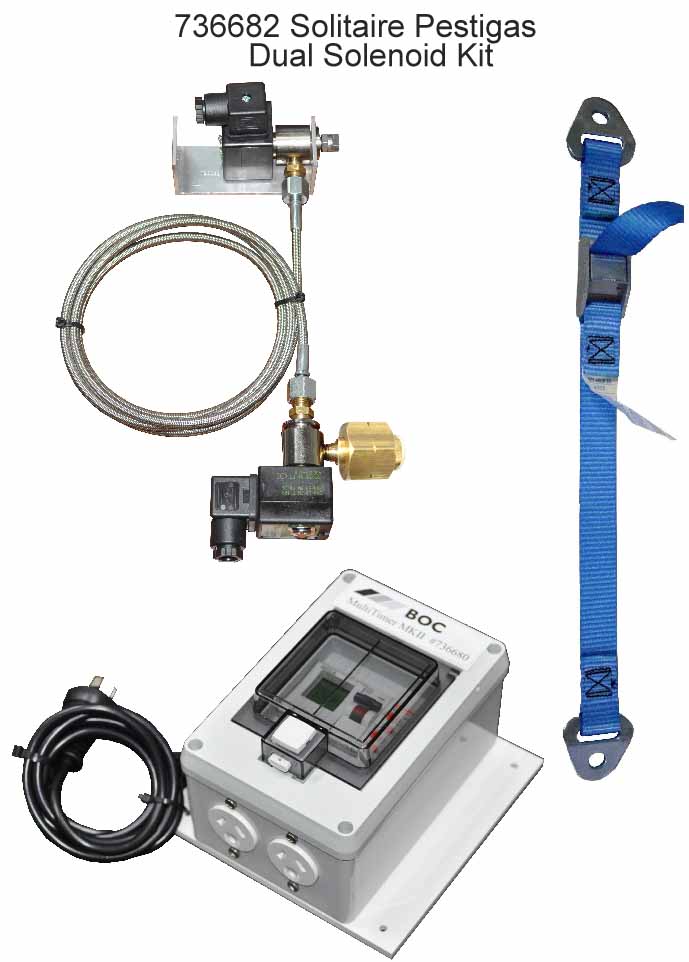

Solitaire Pestigas Dual Solenoid Kit

Is supplied with a Multitimer #736680, two Solenoid Valves #730016, 2m Hose #730006, Nozzle #730020, Strap # 730008 & Fittings

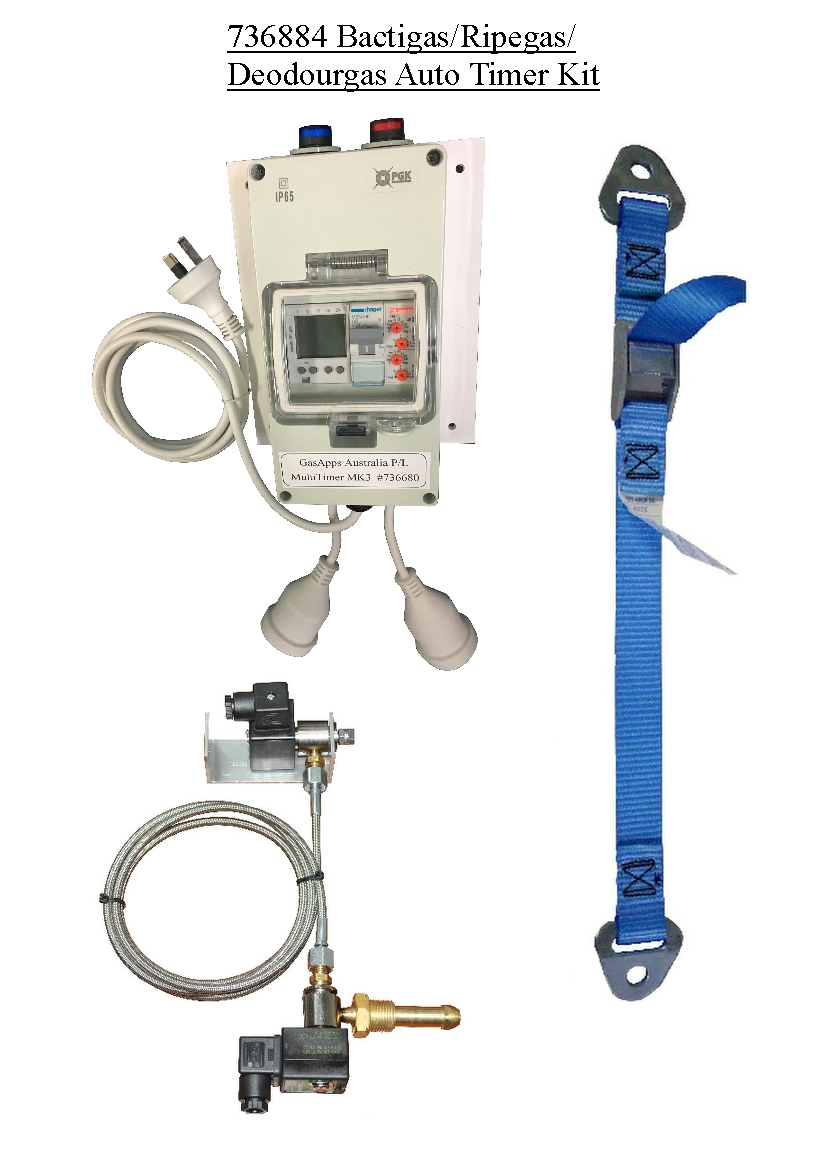

736684

Solitaire Deodourgas Dual Solenoid Kit

Is supplied with a Multitimer #736680, two Solenoid Valves #730016, 2m Hose #730006, Nozzle #730020, Strap # 730008 & Fittings. Also suitable for Bactigas & Ripegas

736685

Nozzle Insectigas/Pestigas   (3 g/s)

Material : Stainless Steel

Use : On Envirosol Hand Gun #736679 for Insectigas & Pestigas

Nominal Flow Rate : 3.0 g/s

p6

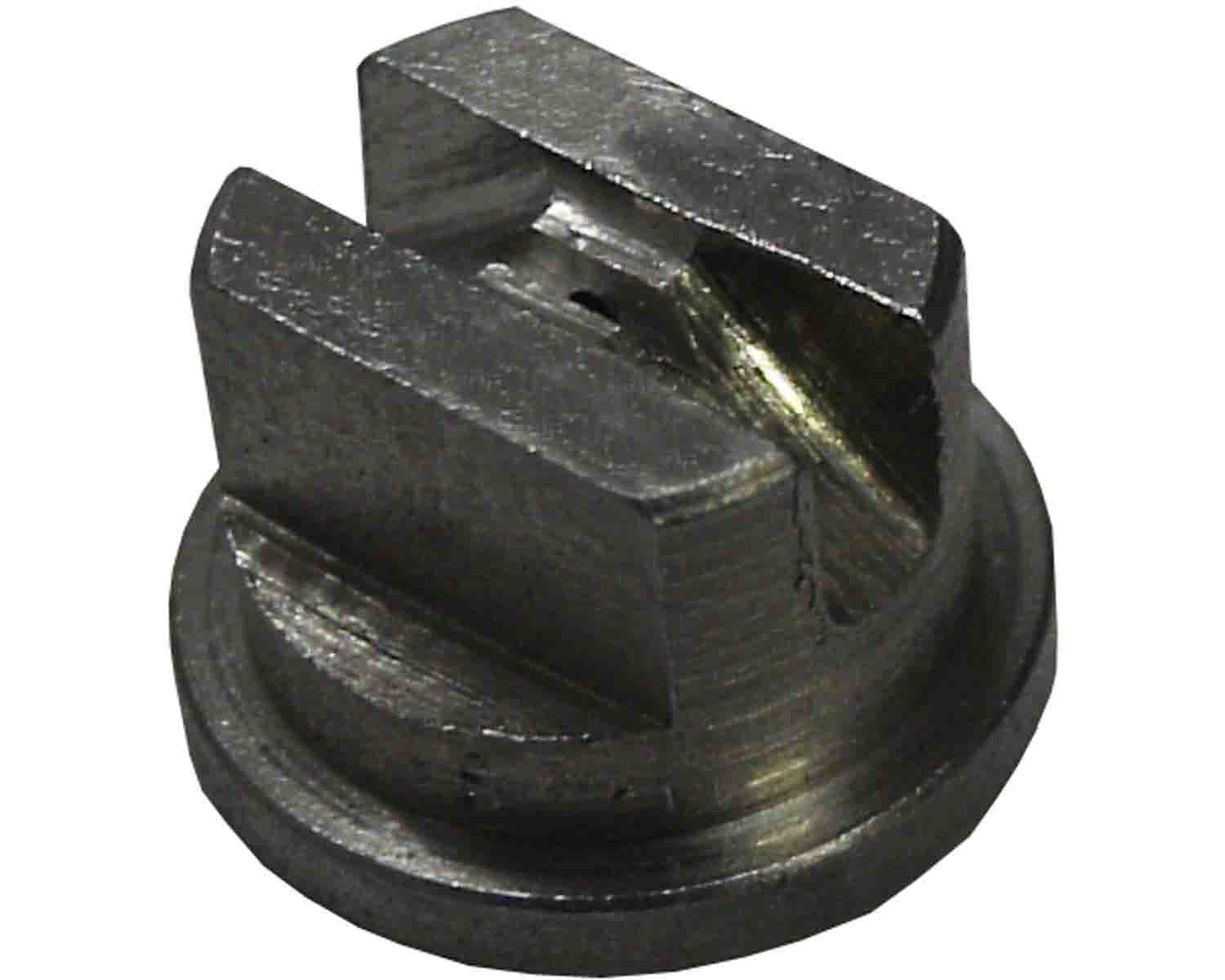

736686

Nozzle Deodourgas   [17 g/s]

Material : Stainless Steel

Use : On Envirosol Hand Gun #736679 for Deodourgas & Bactigas

Nominal Flow Rate : 17.0 g/s

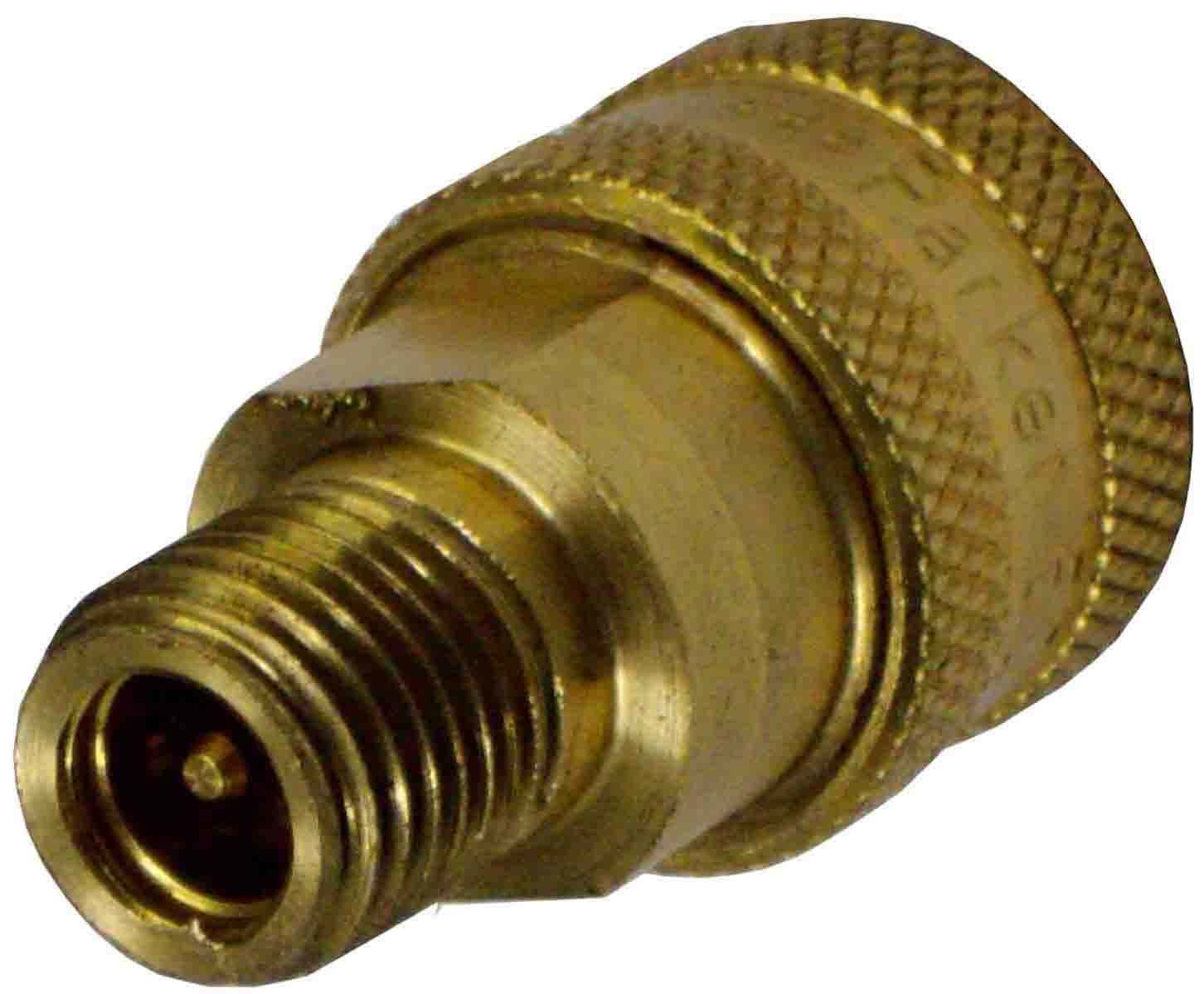

736702

Dose Gun Quick Release Coupling (EPR)

Material : Brass Housing, EPR "O" Rings

Use : To Charge Envirosol Dose Cylinder

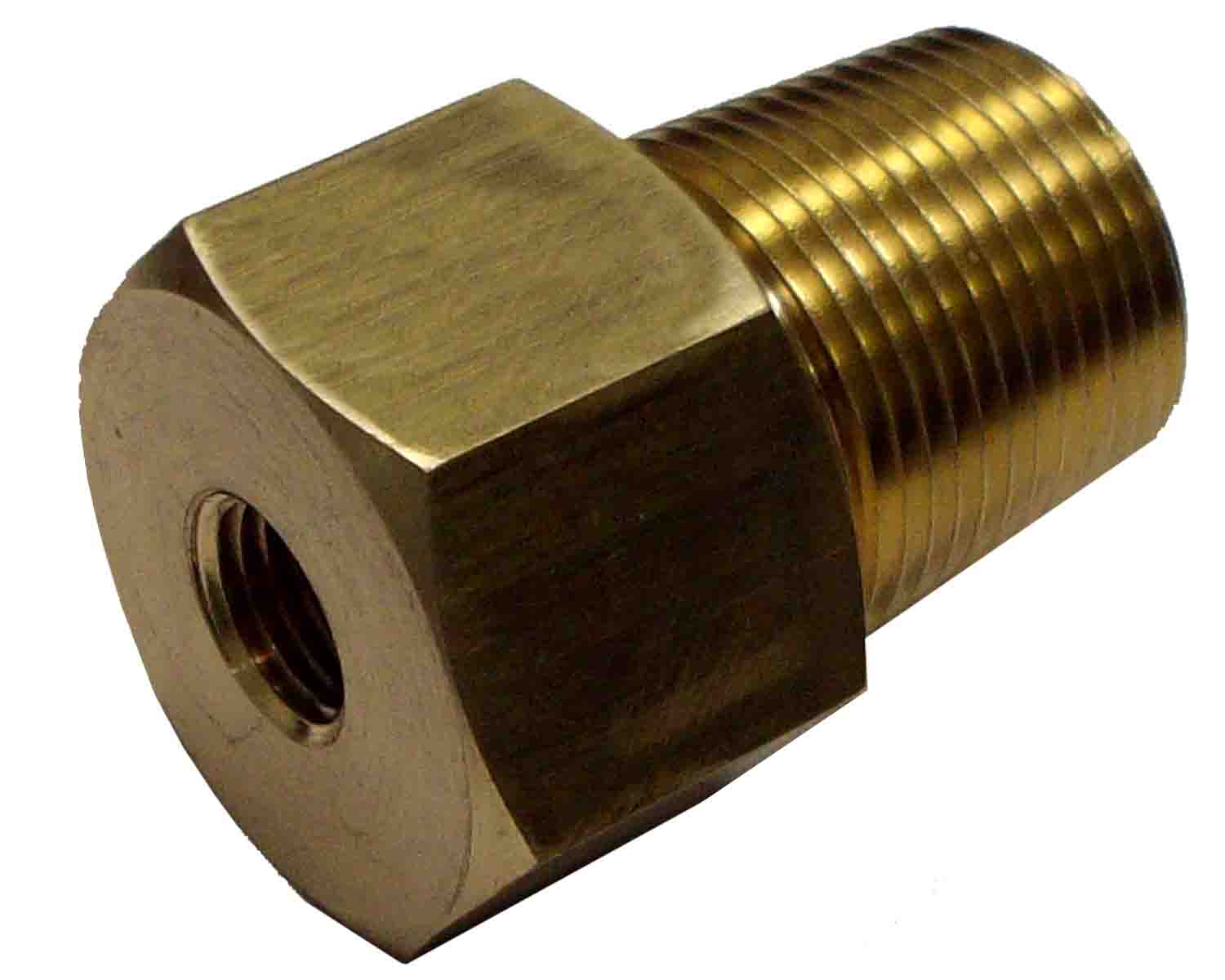

736710

Dose Cylinder Adaptor C

Material : Unplated Brass

Use : Allows 1/4" Fitting to Be Connected to C Size Dose Cylinder

736711

Dose Cylinder Adaptor D, E & G

Material : Unplated Brass

Use : Allows 1/4" Fitting to Be Connected to

         D, E & G Size Dose Cylinder

p7

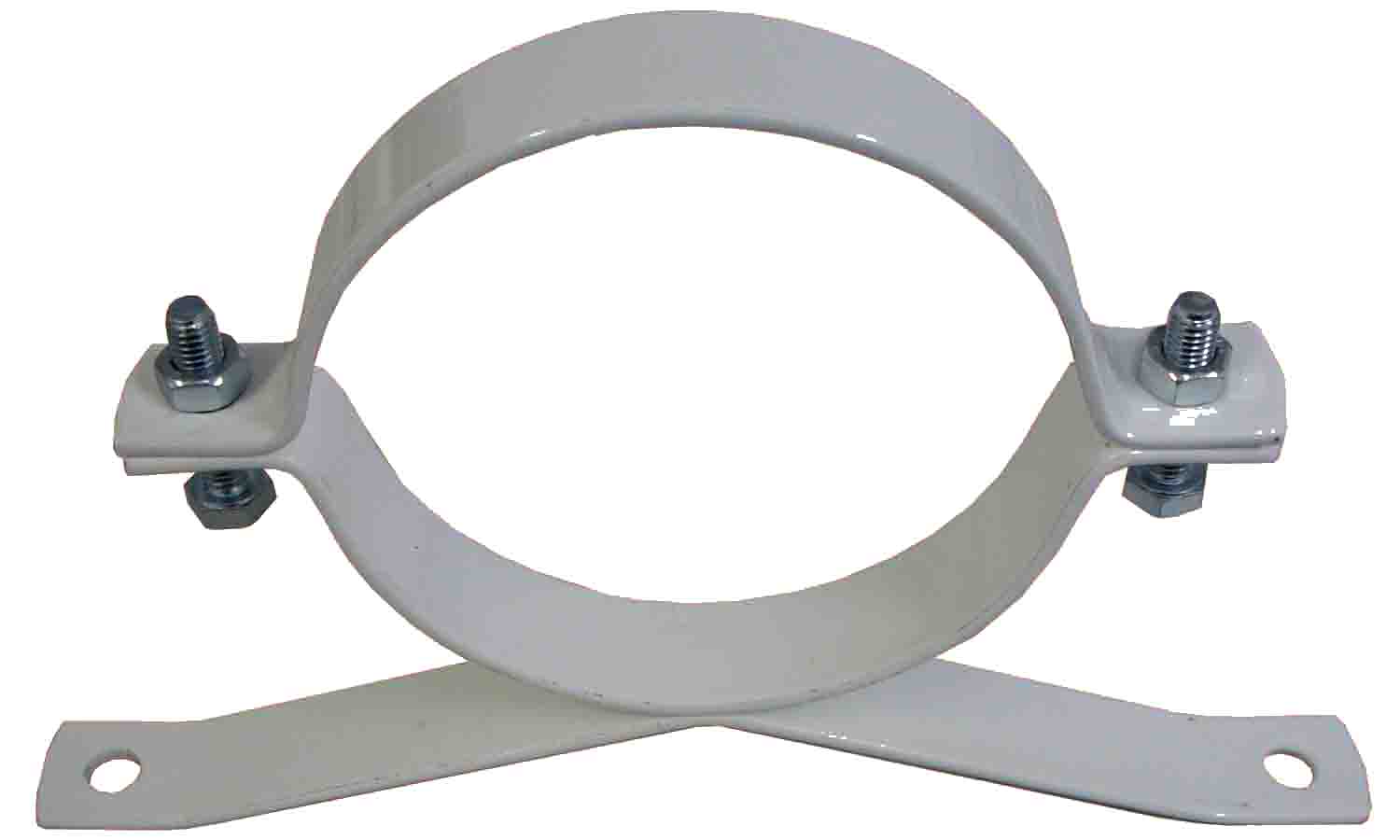

736715

Dose Cylinder Mounting Bracket C

Material : White Powder Coated Steel

Use : To Support "C" Size Envirosol Dose Cylinder

A = 180, B = 250, C = 150, D = 117, E = 25

736716

Dose Cylinder Mounting Bracket D

Material : White Powder Coated Steel

Use : To Support "D" Size Envirosol Dose Cylinder

A = 245, B = 290, C = 263, D = 175, E = 25

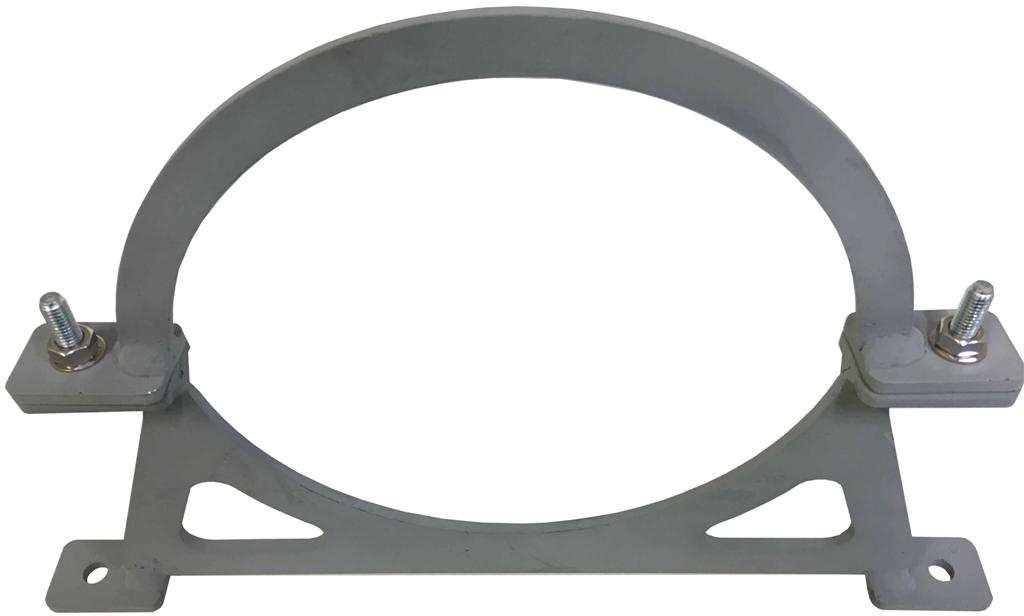

736717

Dose Cylinder Mounting Bracket E

Material : White Powder Coated Steel

Use : To Support "E" Size Envirosol Dose Cylinder

A = 310, B = 390, C = 354, D = 215, E = 40

736718

Dose Cylinder Mounting Bracket G

Material : White Powder Coated Steel

Use : To Support "G" Size Envirosol Dose Cylinder

A = 340, B = 410, C = 374, D = 250, E = 40

736719

Brass Union Tee 1/4"

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube

Includes : Body, 3off Nuts, 3off Ferrule Sets

736720

Brass Union 1/4"

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube

Includes : Body, 2off Nuts, 2off Ferrule Sets

736722

Brass Female Connector 1/4" x 1/8" NPT

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube 1/8" NPT ML Thread

Includes : Body, 1off Nut, 1off Ferrule Set

p8

736723

Brass Back and Front Ferrule 1/4" (Pack 10 Set)

Material : Unplated Brass

Use : Replacement Ferrule Set for All " Tube Fittings

Includes : Back and Front Ferrule Only

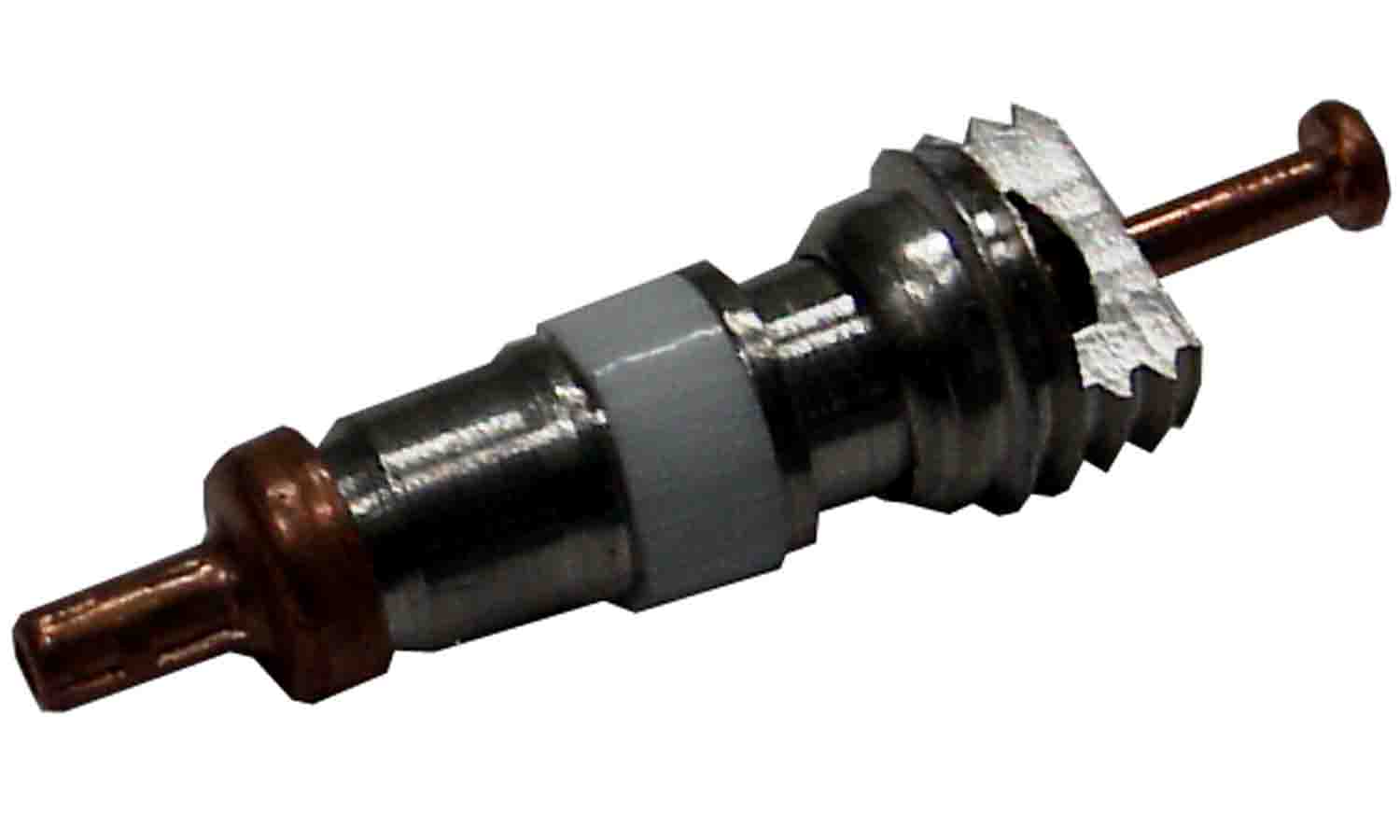

736724

Valve Nozzle Core

Material : Plated Brass Body c/w Teflon Seat and Seal

Use : Replacement Valve for Nozzle #730025

Includes : 1 off Valve Only

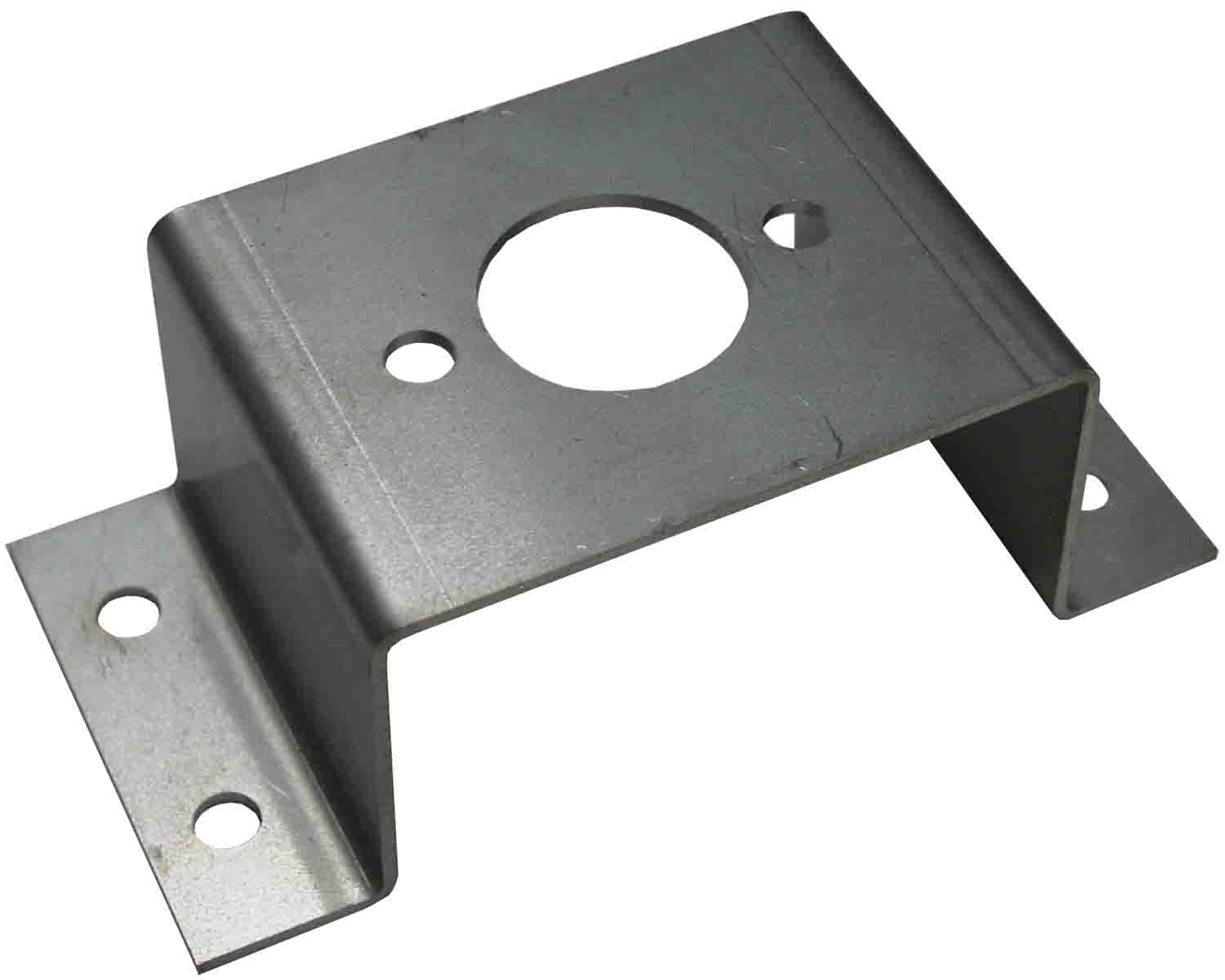

736725

Nozzle Block Mounting Bracket

Material : 2mm Aluminium

Use : Suitable for Mounting of Nozzle Block #730026

Includes : 1 off Bracket Only

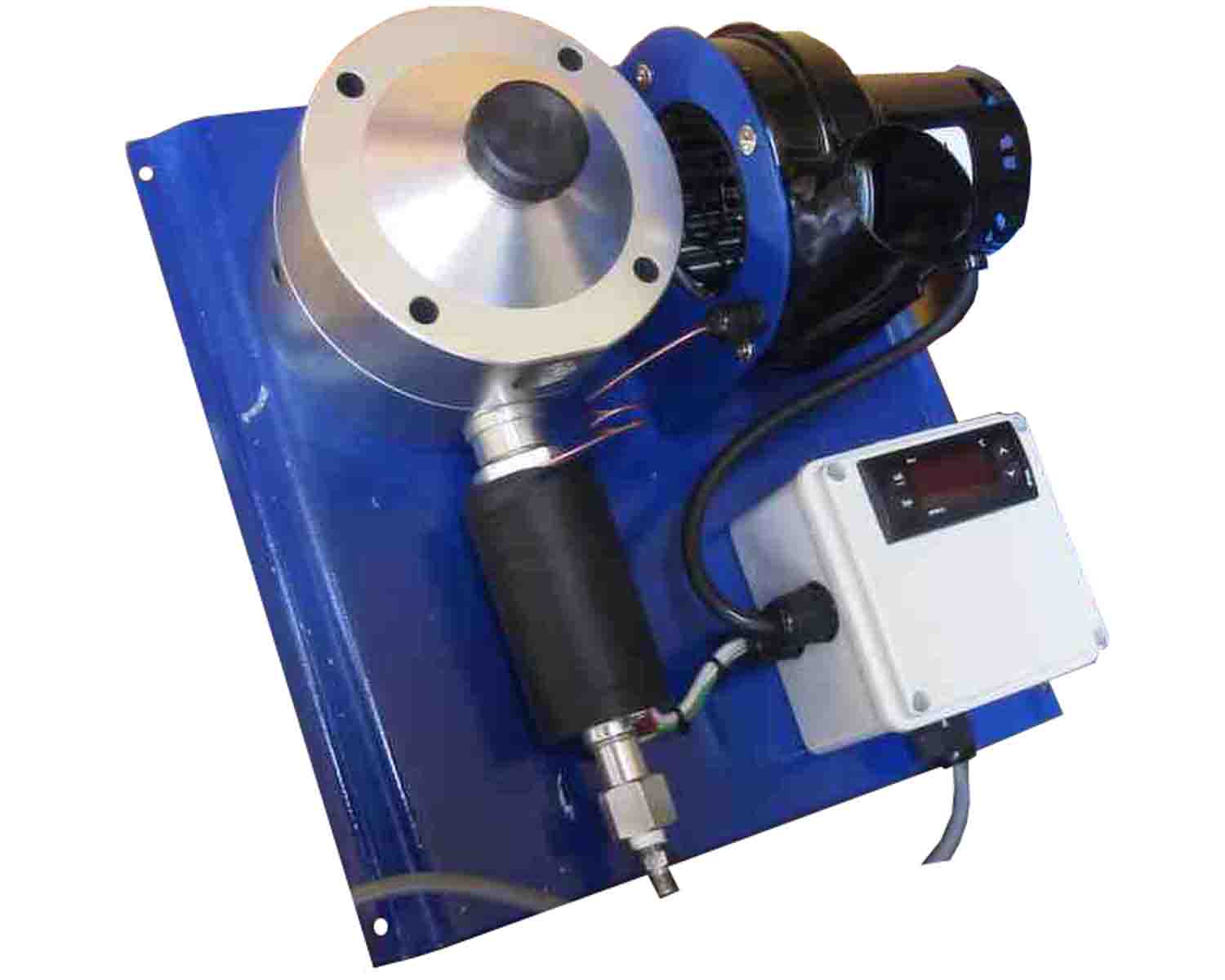

736858

Bactigas Heater Regulator c/w Blower

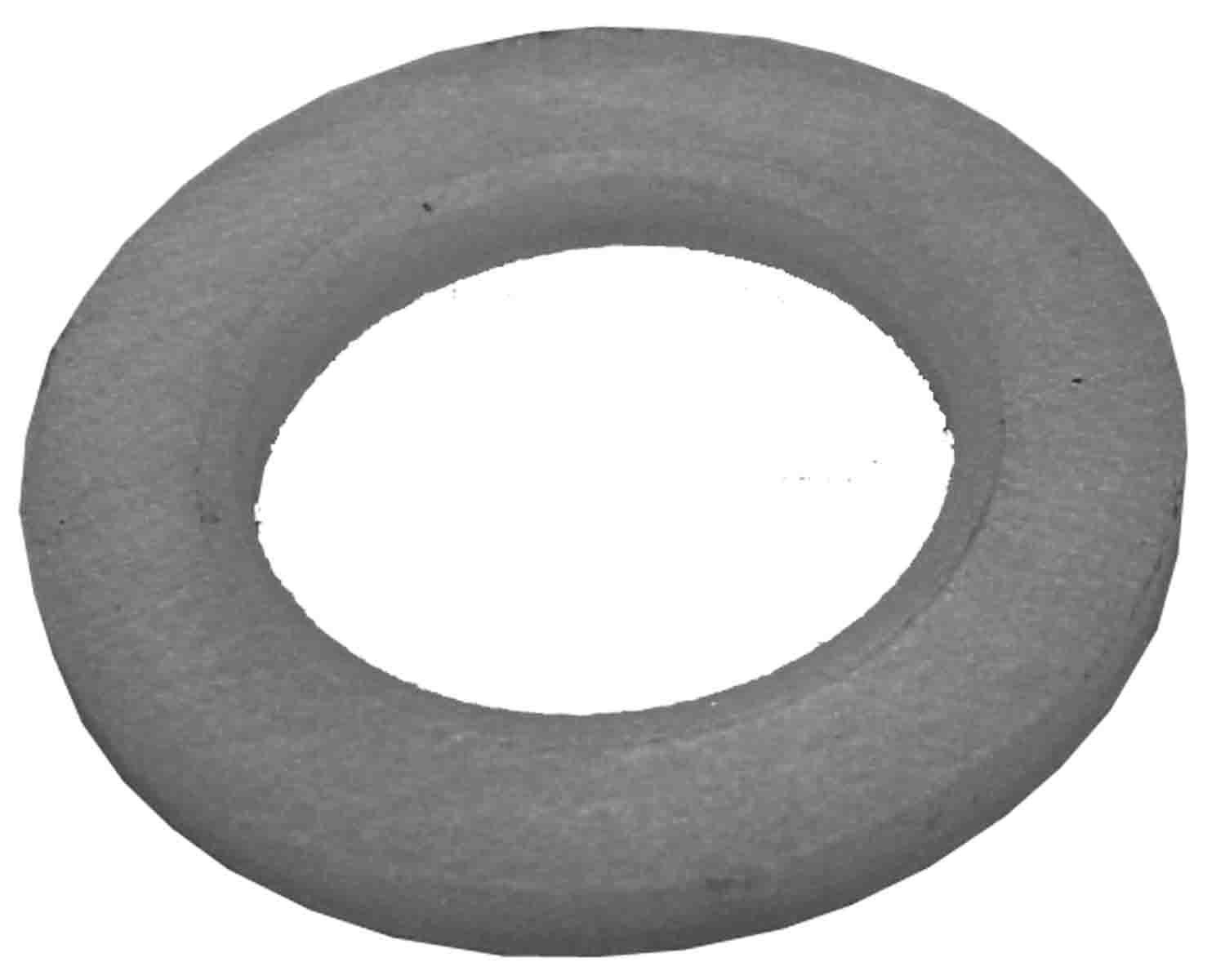

736867

Spigot to Cylinder Nylon Washer RG134

Material : Nylon

Use : InsectiGas and PestiGas Spigot Seal

Size : 11.1 ID x 18.3 OD x 1.5 Thick

Includes : 1 off Washer Only

p8

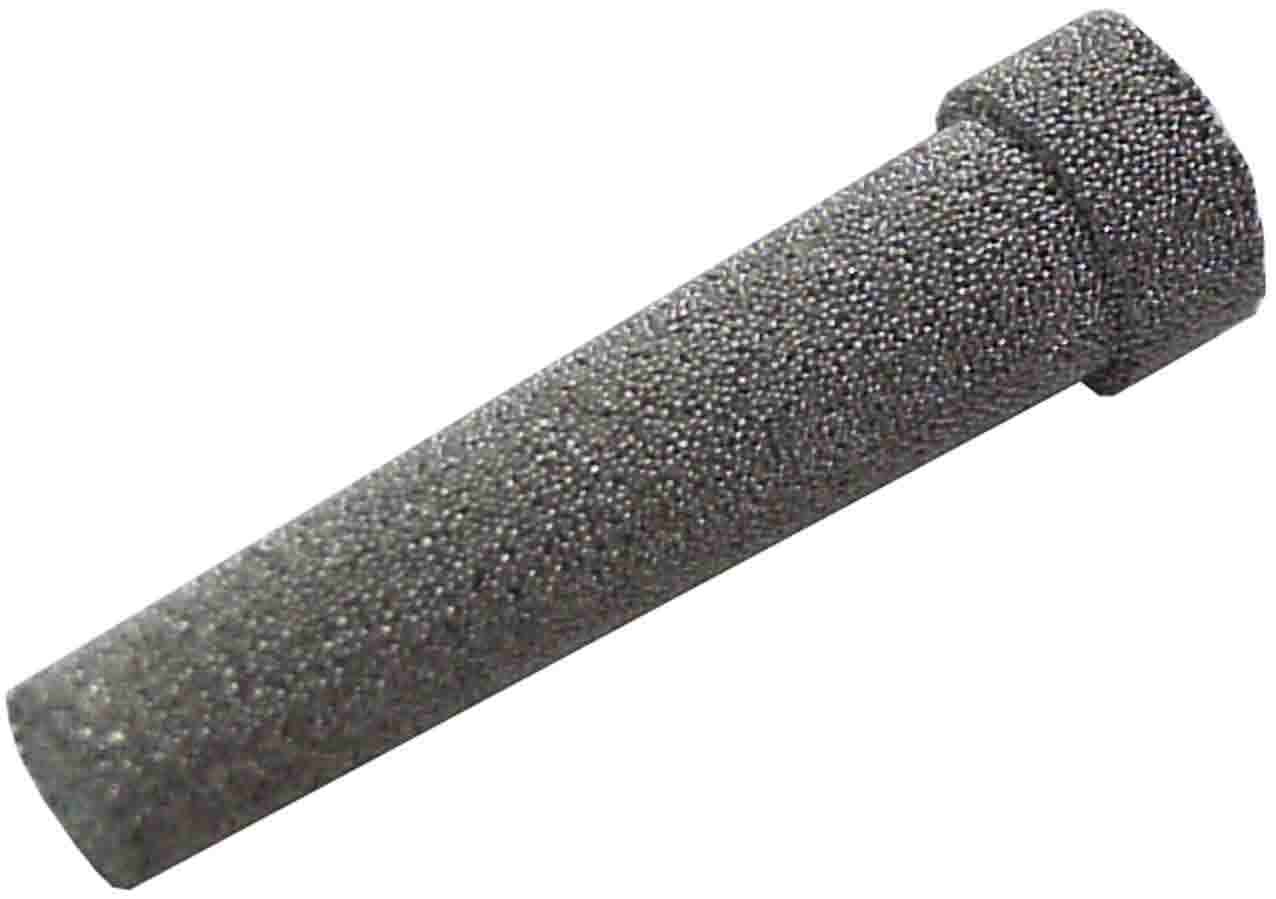

736890

Spigot Filter RB38

Material : Copper-nickel Sintered

Use : Is Fitted Into All Spigots #730002 & #730003

        Can Also be In Spigots #730000 & #730001

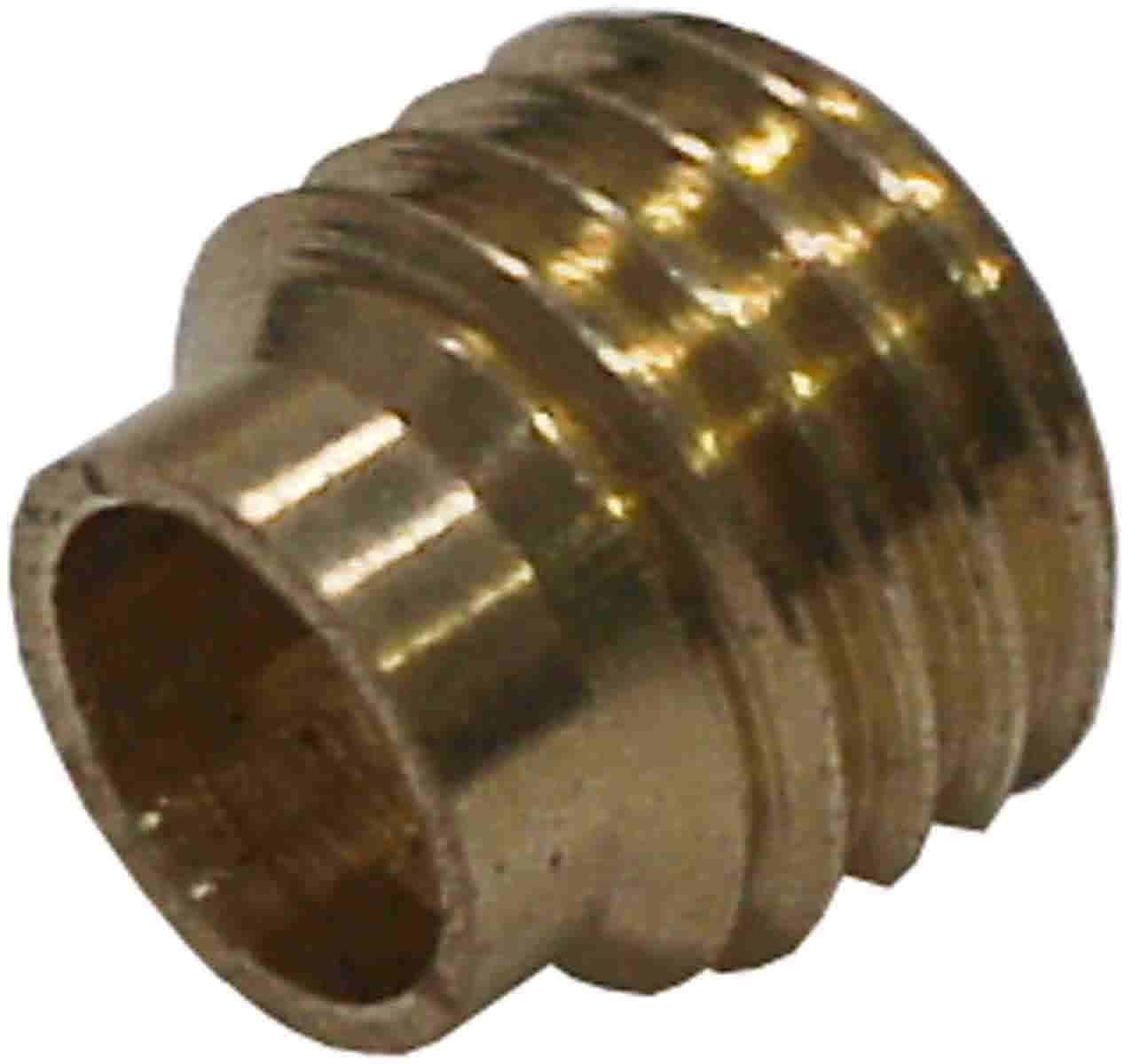

736891

Filter Retaining Screw RB39

Material : Unplated Brass

Use : To Secure Spigot Filters #736890

736897

Brass Male Connector 1/4" Tube x 1/8" NPT

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube 1/8" NPT FM Thread

Includes : Body, 1off Nut, 1off Ferrule Set

p9

736898

Brass Reducing Hex Nipple 1/4 x 1/8 BSPT

Material : Unplated Brass

Use : General Purpose Reducing Nipple

Weight : 19g

736899

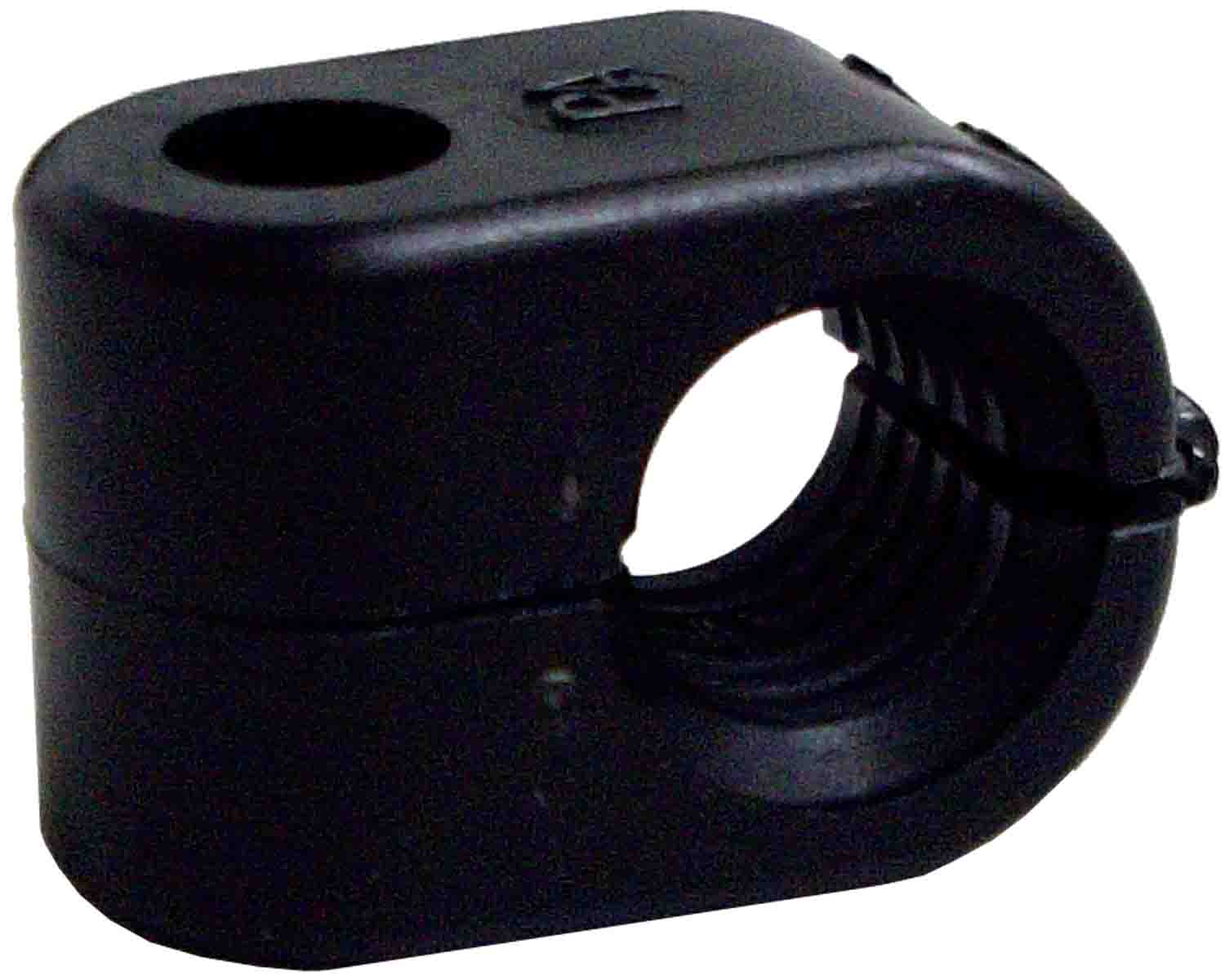

Light Series 1/4" Pipe Clamp Single Hole (Pack of 40)

Material : PolyPropylene

Use : To Support " OD Tube

Includes : Pack of 40

737014

Co2 Cylinder Nut - Type 30

Material : Brass Unplated

Use : Connect To CO2 Cylinder Outlet Thread

Includes : Cylinder Nut Only

737040

Space controller MKIII 12 Volt Actuator/Valve 1/4"

737049

Wall Mounted Manifold Assembly

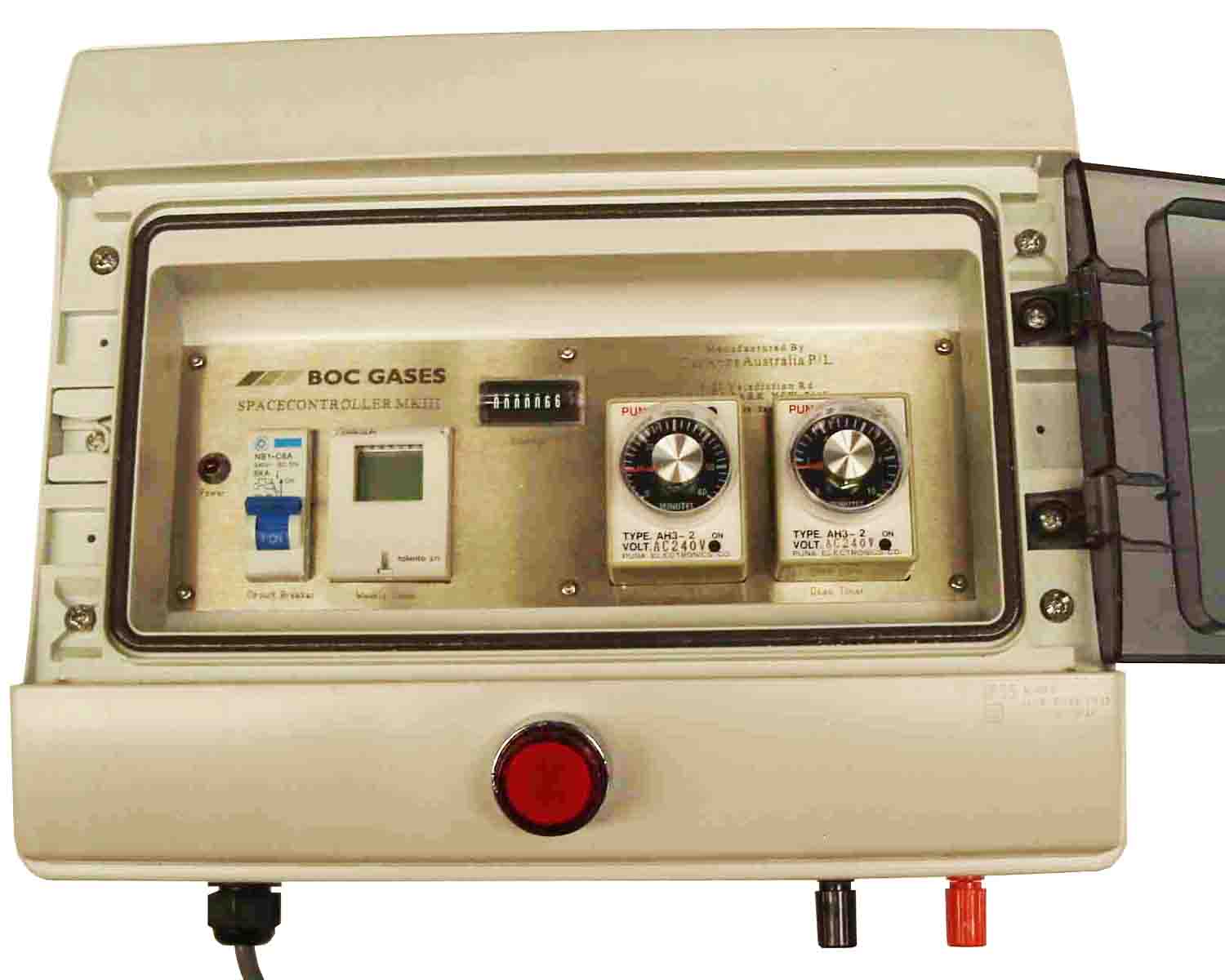

737055

Control Box For Space control Module MKIII

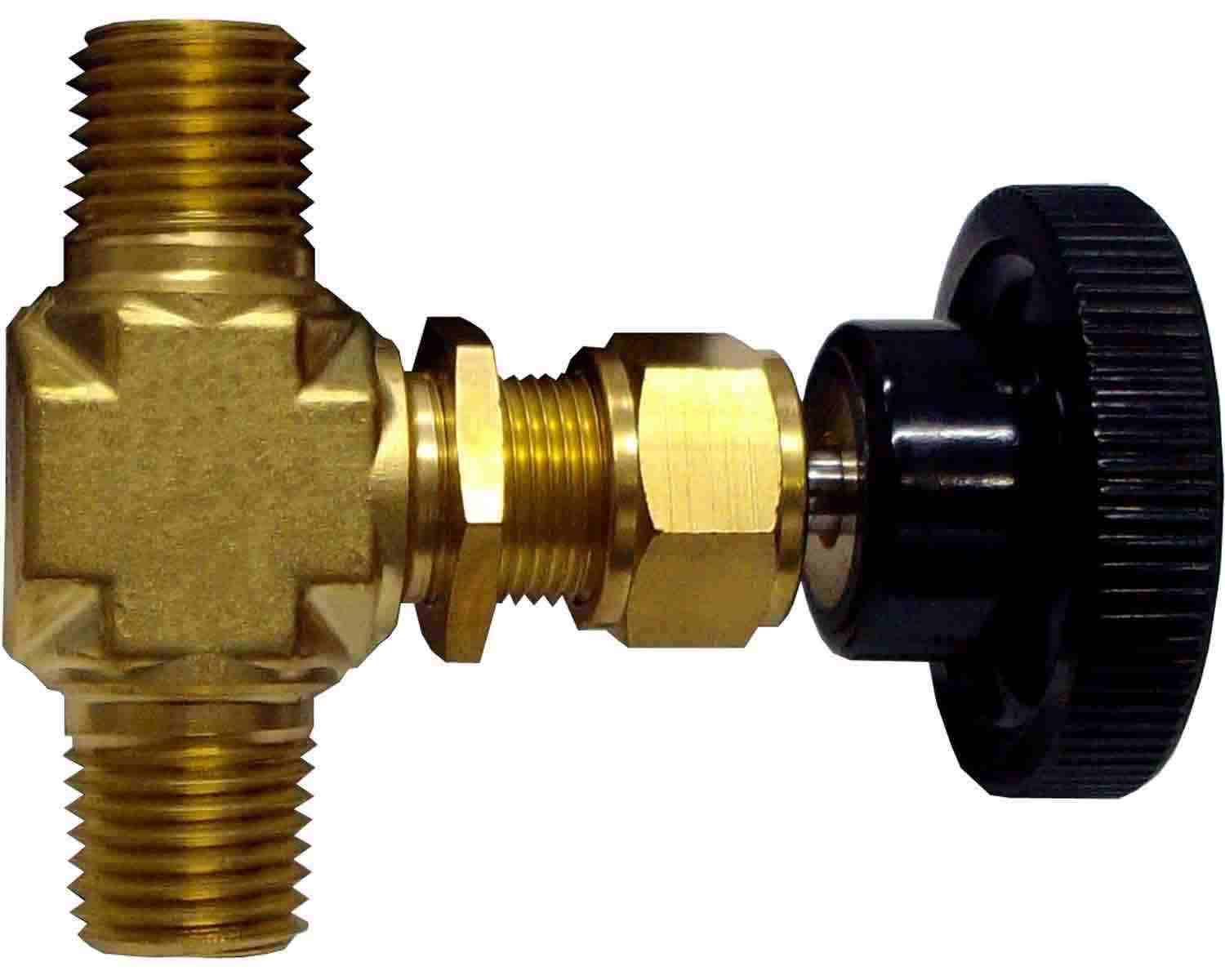

737078

Brass Needle Valve 1/4" NPT Male, Kel-F

Material : Brass Body, Kel-F Stem Seat

Use : Used On Spacecontroller Manifold Block

        To Pressurise and De-pressurise the System

Ports : 1/4" Nale NPT

p9

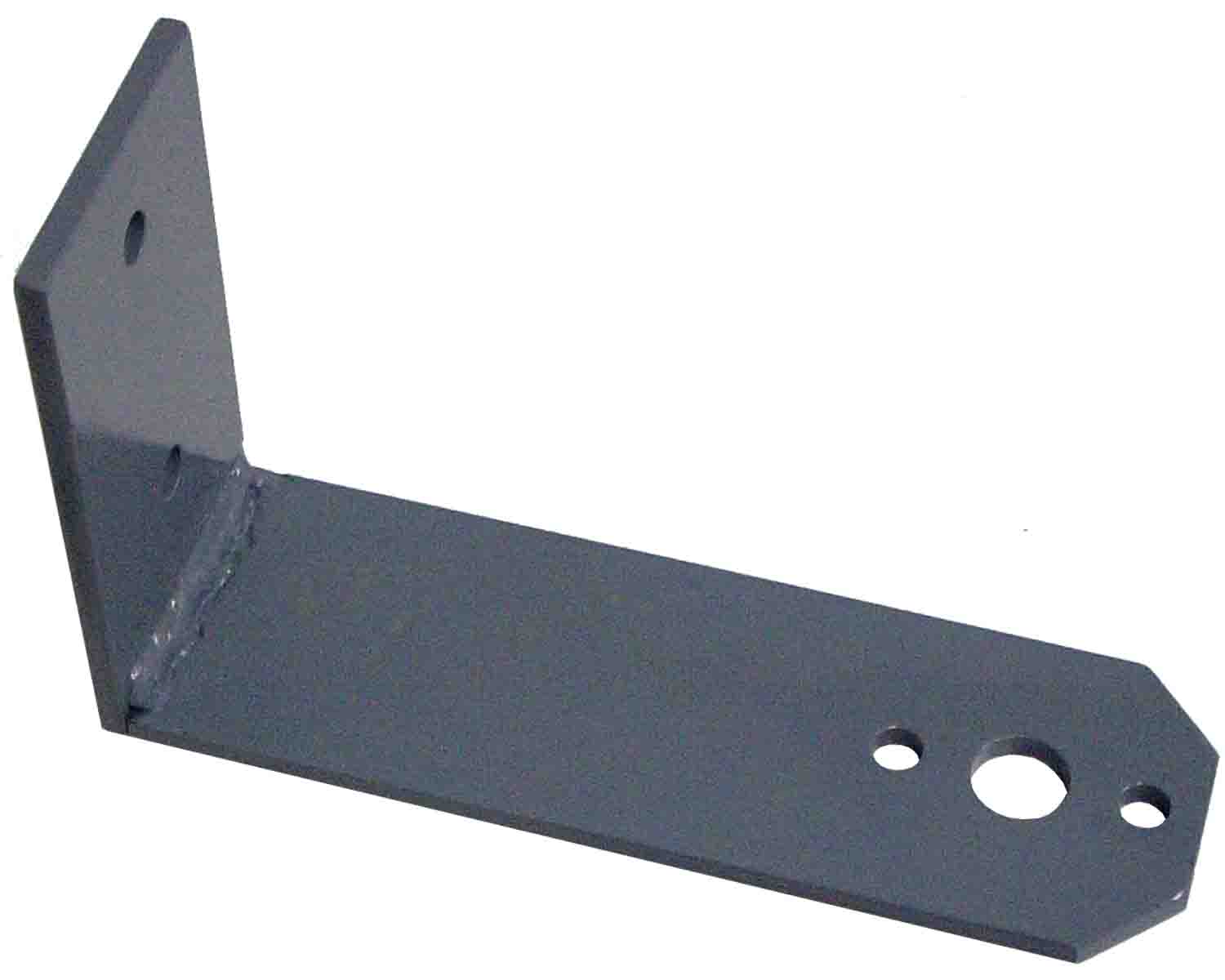

737082

Hex Manifold Wall Mounting Bracket

Material : Mild Steel, Red Powdered Coated

Use : Wall Mounting The Hex Manifold Block #736459

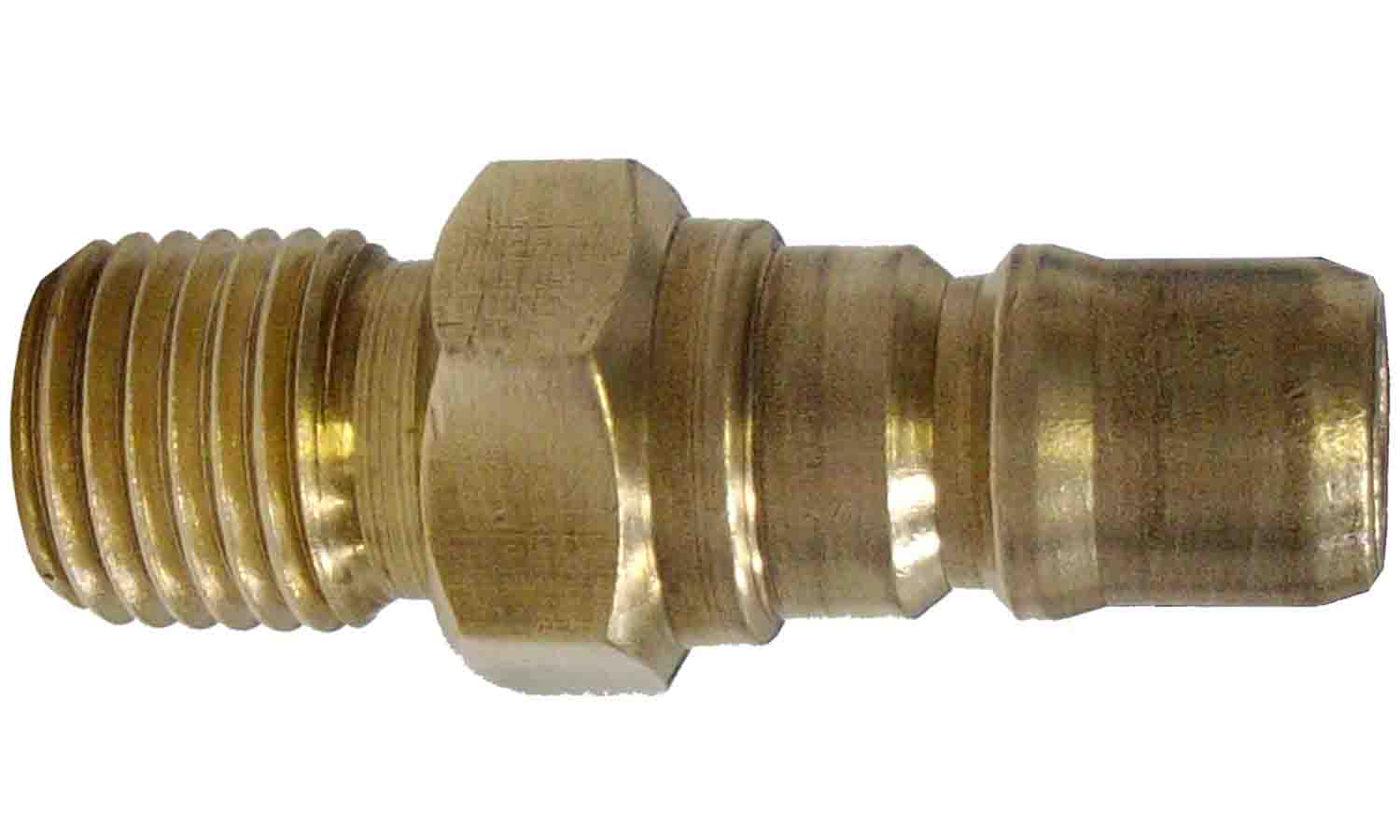

737093

Dose Gun Male Quick Connector

Material : Brass Unplated

Use : Connect Dose Gun To Fill Connector

737106

1/4" BSPT Brass Plug

Material : Unplated Brass

Use : Blocks Off Spare Ports On The Hex Manifold #736459

p10

737107

Spring Retaining Bush 3/4" x 1/4"

Material : Unplated Brass

Use : Connects Needle Valve #737078 To The Hex Manifold #736459, It Also Supports The Spring #736461, & Filter Element #736460 Inside The Hex Manifold

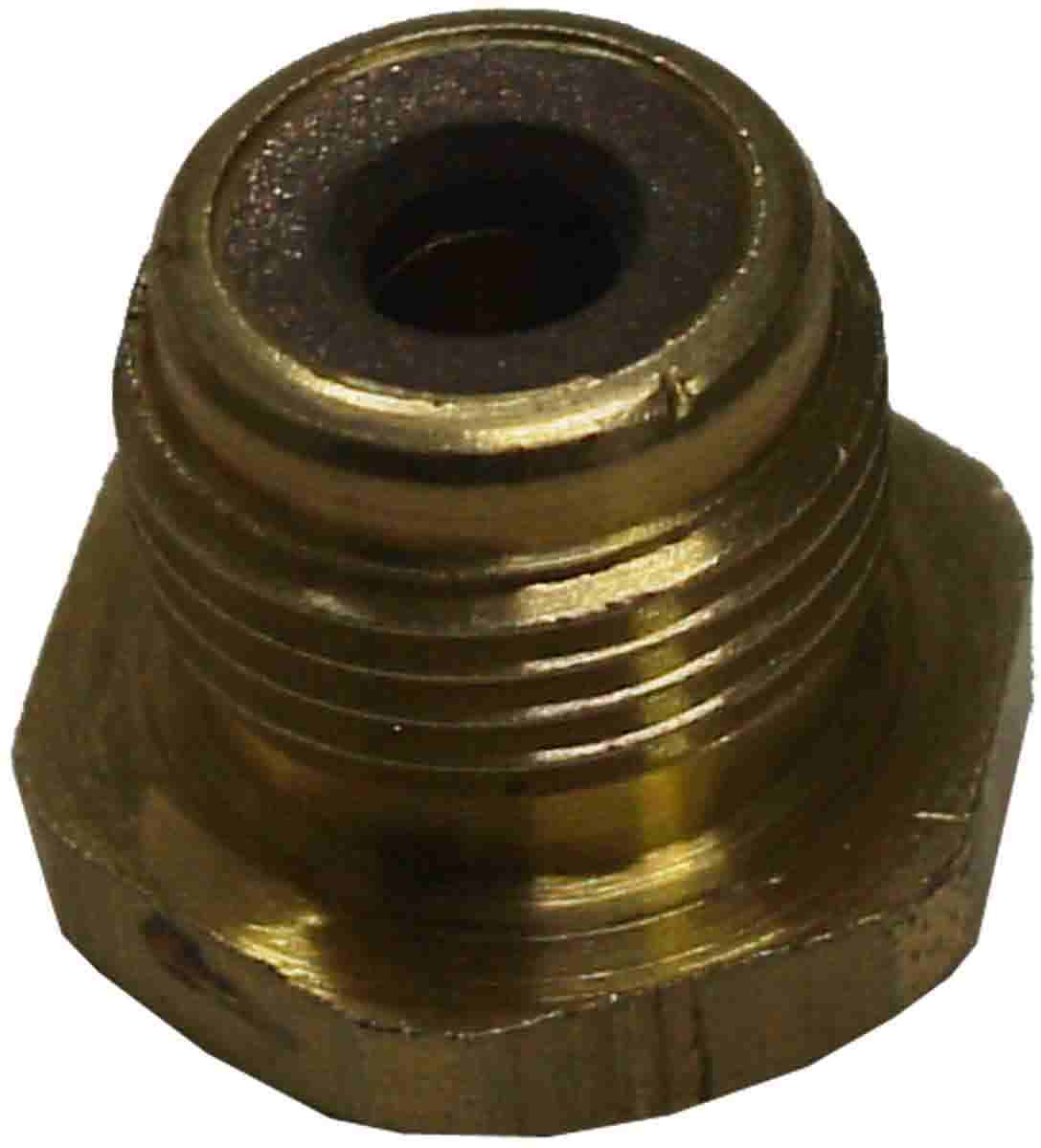

737125

Envirisol Gun Front Seal

Material : Unplated Brass & Teflon

Use : Replacement Front Seal For Envirosol Hand Gun #736679

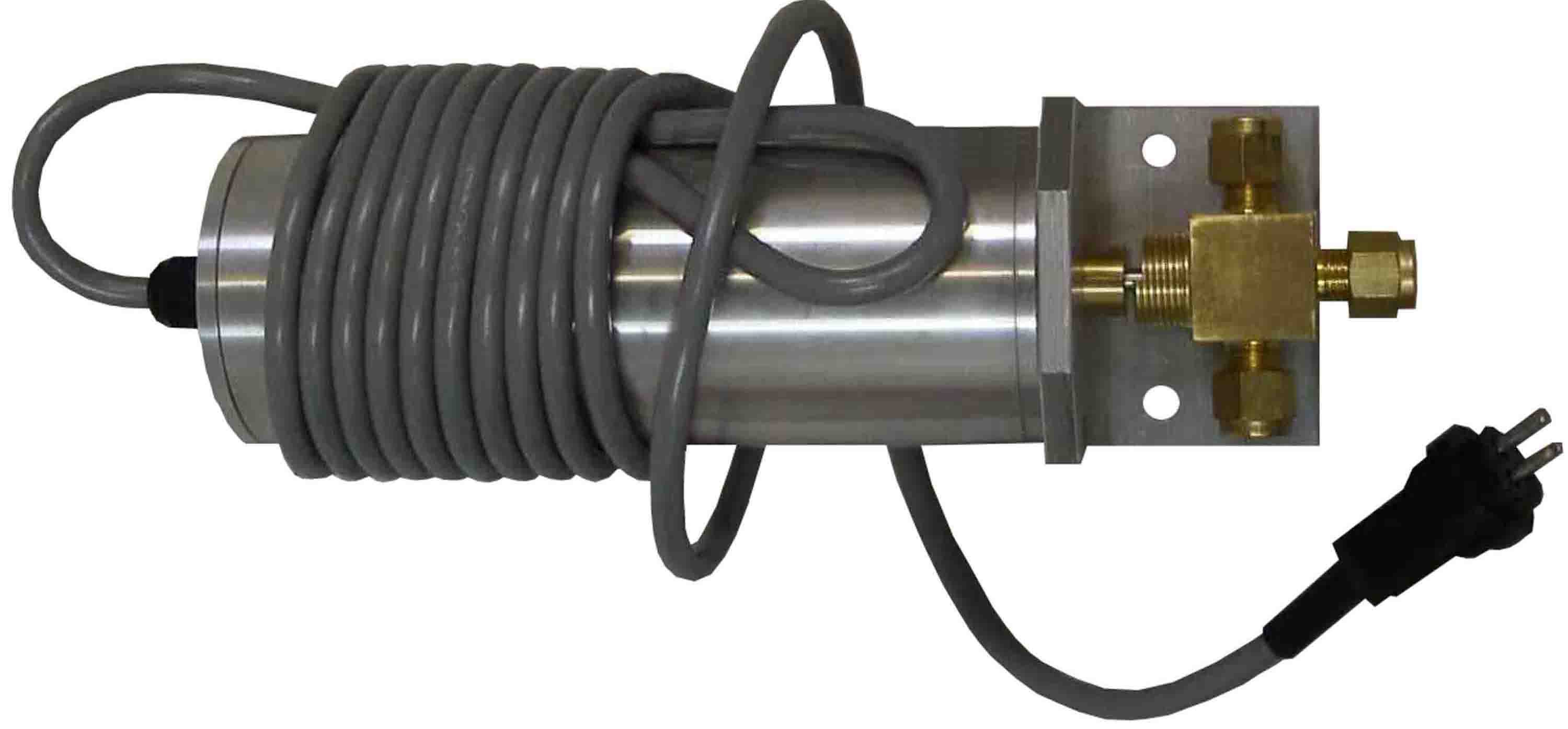

737136

Space controller MKIII 12 Volt Actuator/Valve 3/8"

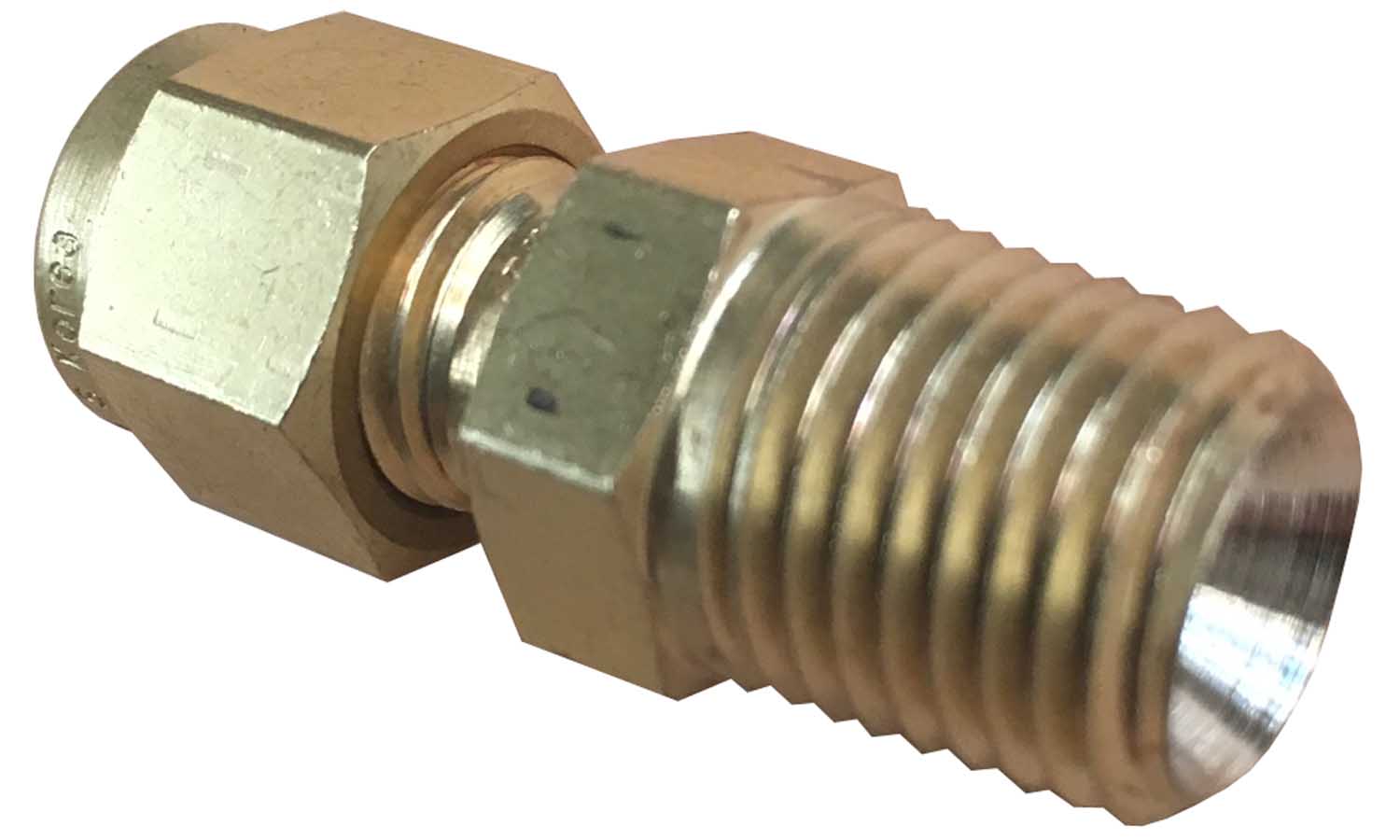

737138

Brass Male Connector 1/4" BSPP/60 x 1/4" OD Tube

Material : Unplated Brass

Use : This Single Fitting will Connect 1/4" OD Aluminium

        Tube #730034 & #730036 Directly to Hoses

         #730006 or #736588

Includes : Body, 1off Nut, 1off Ferrule Set



p10

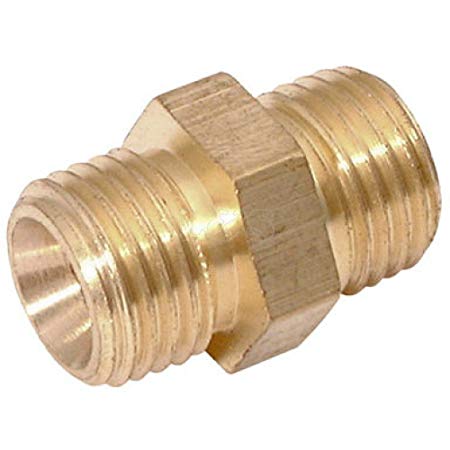

737162

Brass Double Seated Union 1/4" BSP/60 x 1/4" BSP/60

Material : Brass

Use : Connects Two Envirosol Hoses Together

Includes : Brass Fitting Only

Specification : 1/4" BSPP/60° Internal Cone Both Ends



737184

Brass Female Connector 1/4" x 1/4" NPT

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube 1/4" NPT ML Thread

Includes : Body, 1off Nut, 1off Ferrule Set

737186

Strobe Lamp Blue, 12/24VDC, IP65

Material : Blue Polycarbonate Lens

Use : To Indicate When Spacecontroller is Operating

Includes : Terminal Block & Mounting Base

Specification : 12/24VDC x 2W, IP65, -20 to +40°C, 1Hz Nominal

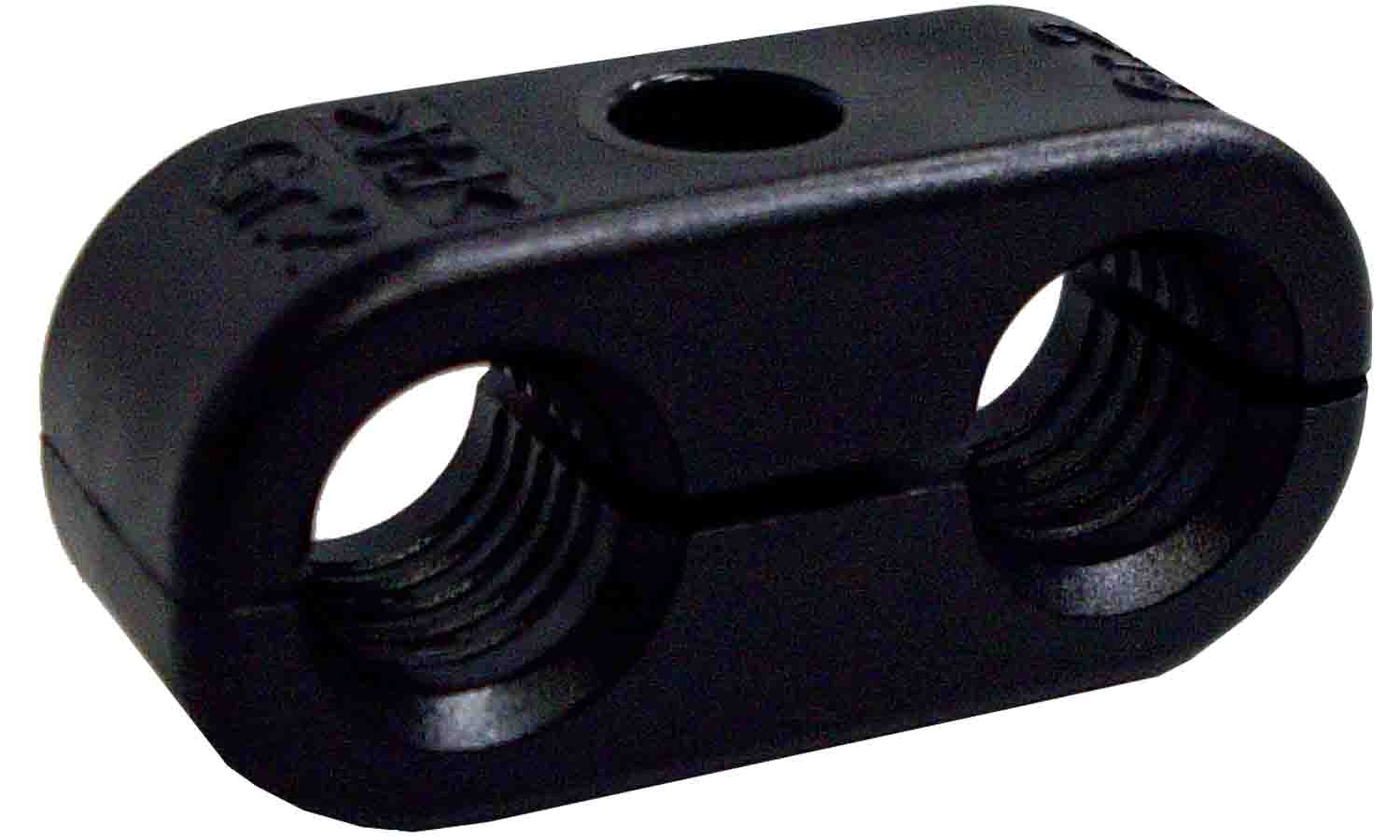

737187

Double Pipe Clamp, LNG Series, 2 x 1/4" Pipes

Material : PolyPropylene

Use : To Support 2off x " OD Tube

Includes : Pack of 20

p11

737212

Brass Bulkhead Female Connector 1/4Tube x 1/4"NPT

Material : Unplated Brass

Use : To Connect 1/4" OD Aluminium Tube 1/4" NPT ML Thread

         Can Be Anchored Off A Mounting Bracket

Includes : Body, 1off Nut, 1off Ferrule Set, Locknut

737213

Brass Male Branch Tee 1/4" x 1/4"NPT

Material : Unplated Brass

Use : To Connect 2off x 1/4" OD Aluminium Tube

          and I/4NPT Female Fitting

Includes : Body, 2off Nuts, 2off Ferrule Sets

737232

"40" Series 3 Way Brass Ball Valve 1/4" (Low Temperature)

Material : Unplated Brass

Use : 3-Position Valve Operation, [Left to Centre-OFF-Right To Centre]

Includes : Body, 3off Nuts & Ferrule Sets, Handle & Locknut

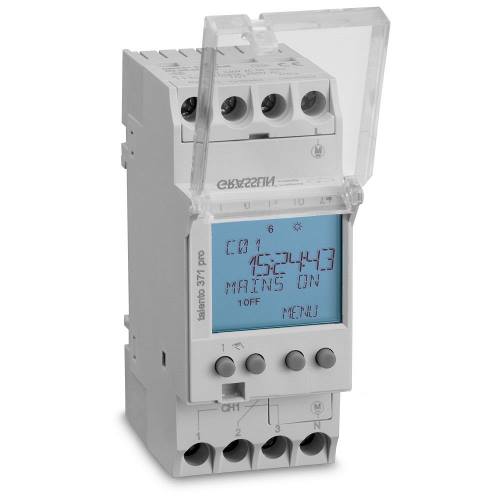

737238

Grasslin Digital Weekly Timer

1 changeover contact, 20 memory locations, 2 module widths (35 mm), Automatic summer time/winter time changeover, Non-volatile memory (EEPROM), Shortest switching time: 1 minute, Running reserve 3 years, lithium battery, Switching capacity 16 A/250 VAC

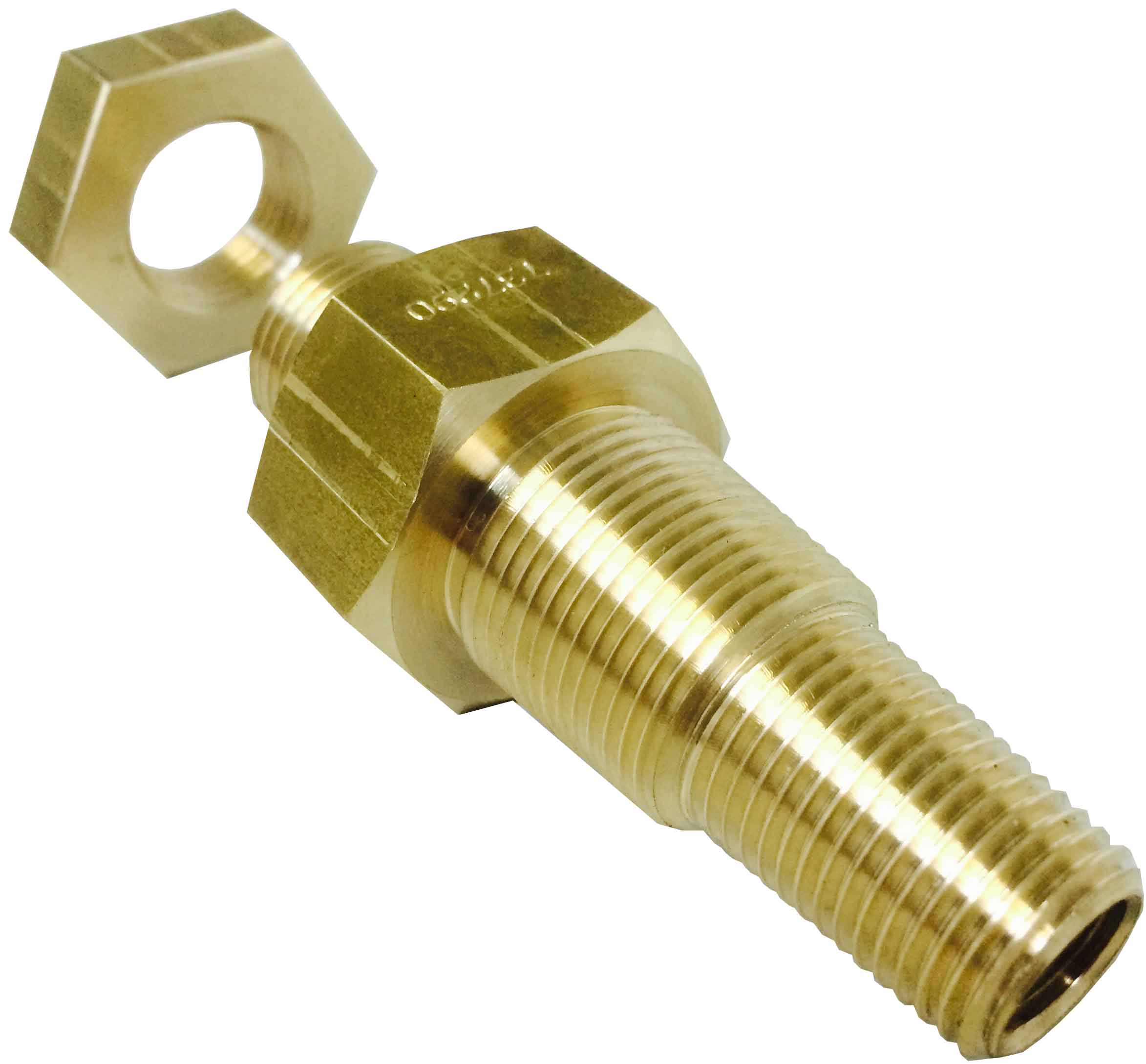

737290

Multisize Dose Cylinder Adapter

Material : 38mm A/F Hex Brass

Use : For Mounting two sizes of Dose Cylinders on Manual Spacecontroller

p11

737360

New "E" Size Dose Cylinder Steel

23.8L Water Capacity = 11.9Kg Envirosol Dose capacity

See Dose Cylinders for more information

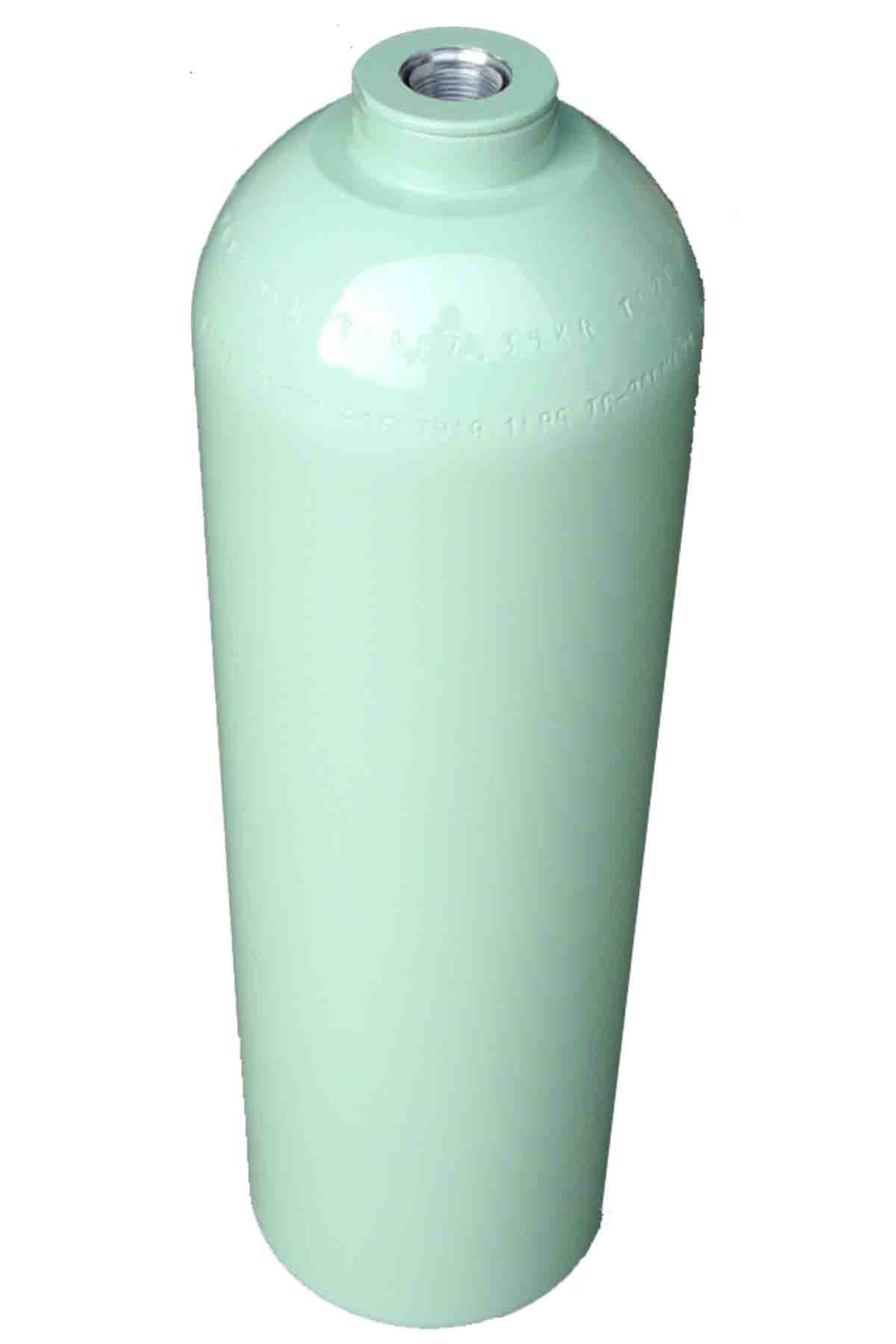

737361

New "F" Size Dose Cylinder Steel

34.3L Water Capacity = 17.2Kg Envirosol Dose capacity

See Dose Cylinders for more information

737362

New "D" Size Dose Cylinder Aluminium

10L Water Capacity = 5Kg Envirosol Dose capacity

See Dose Cylinders for more information

p12

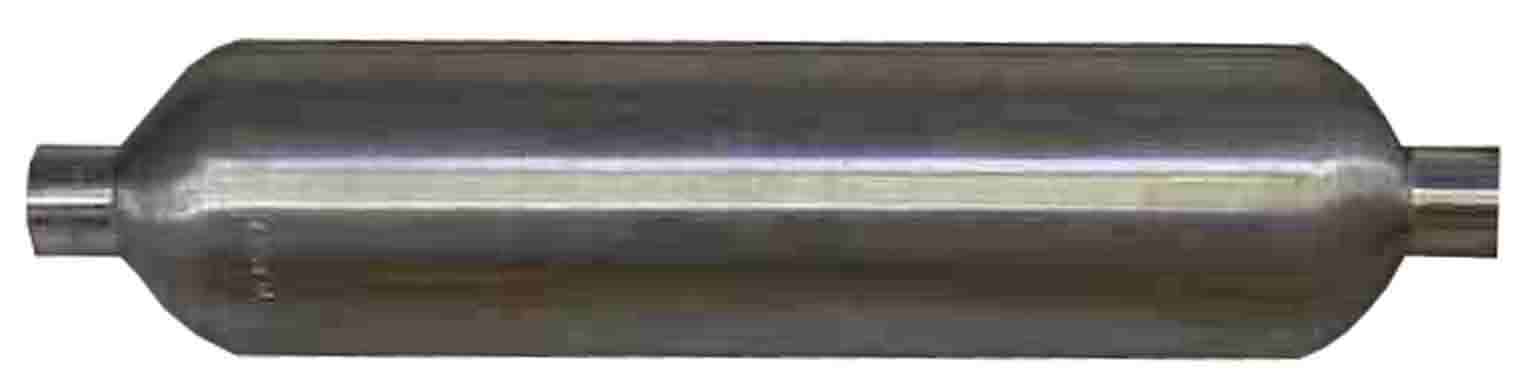

737363

Stainless Steel Sample Cylinder 500mL

500mL Water Capacity = 250g Envirosol Dose capacity

See Dose Cylinders for more information

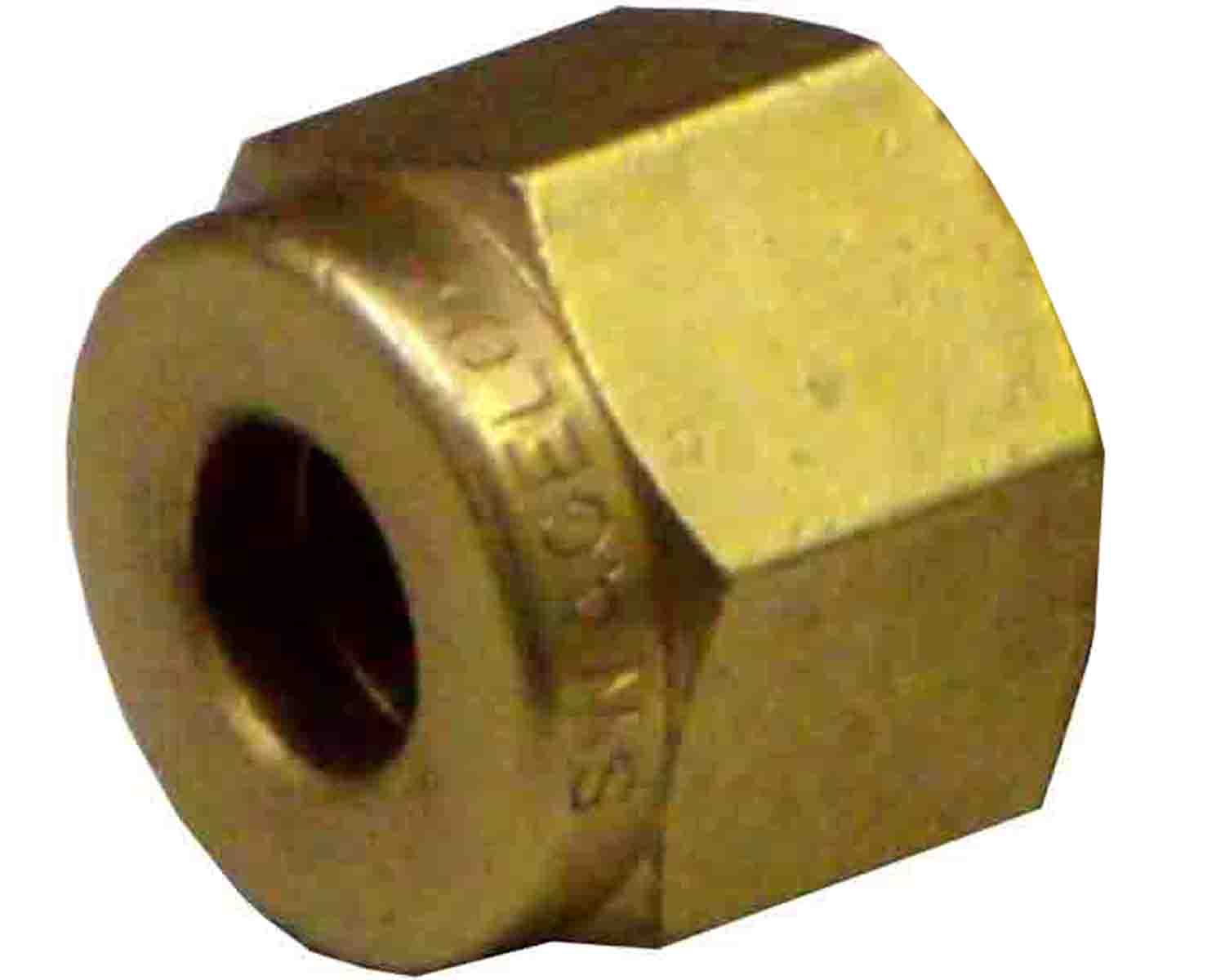

737365

Brass Tube Nut 1/4"

Material : Brass Unplated

Use : Replacement Nut, Suits all Twin Ferrule 1/4" Tube Fittings

737369

Brass Union Elbow 1/4" Tube

Material : Brass Unplated

Use : Connects Two 1/4" Tubes Together at Right Angles

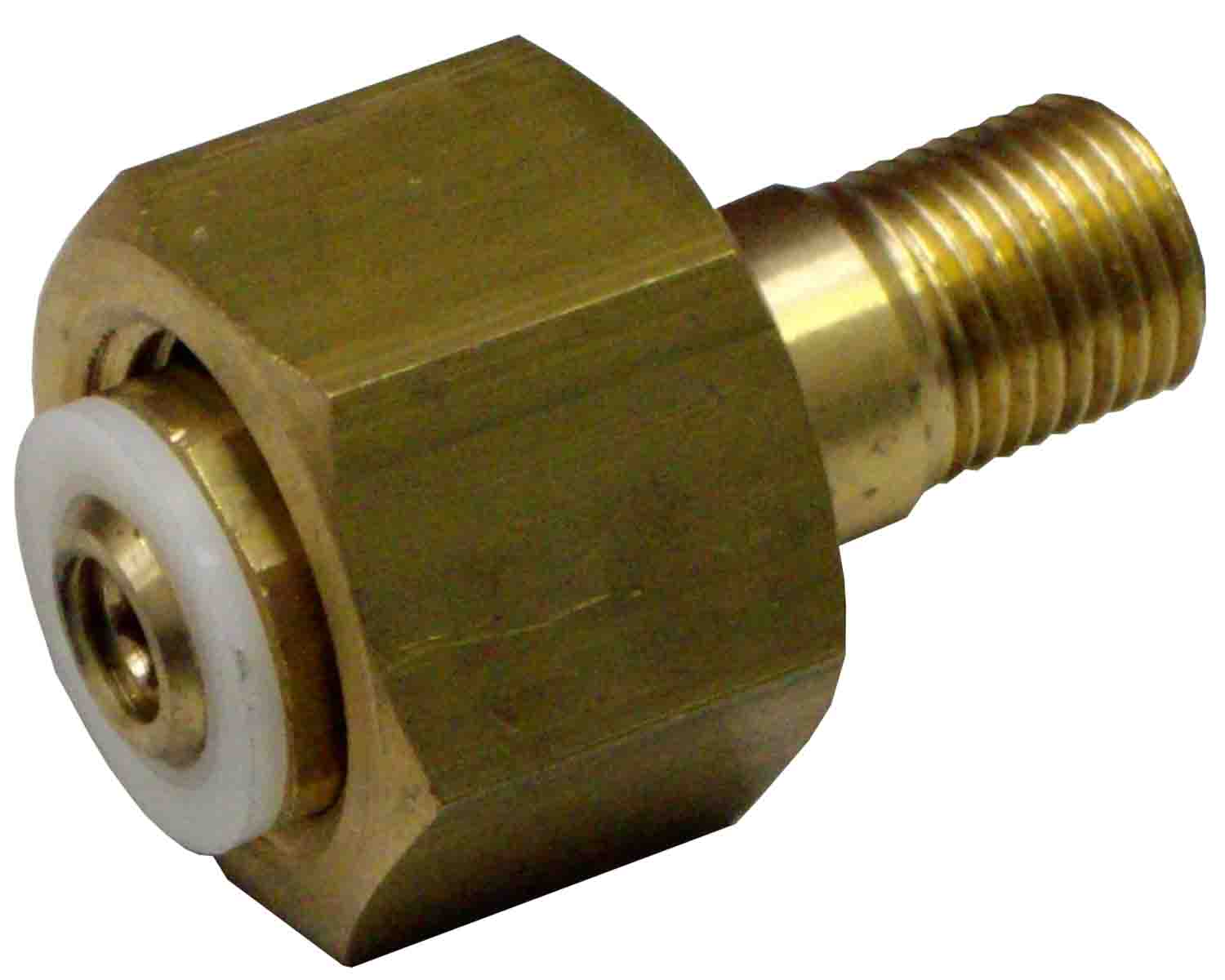

737373

CO2 Nut Spigot & Washer - Type 30

Material : Non Plated Brass

Use : Connects Hose#730006 or #736588 to a CO2 Cylinder

Includes : Nut #737014, Spigot #730002 & Washer #736867 Only

737385

Brass Union Tee 3/8"

Material : Unplated Brass

Use : To Connect 3/8" OD Aluminium Tube

Includes : Body, 3off Nuts, 3off Ferrule Sets

737393

Brass Male Connector 3/8" Tube x 1/4" NPT

Material : Unplated Brass

Use : To Connect 3/8" OD Aluminium Tube 1/4" NPT FM Thread

Includes : Body, 1off Nut, 1off Ferrule Set

737394

Brass Tube Reducer 3/8" Tube to 1/4" Stub

Material : Plain Brass

Use: Connects 3/8" Tube to 1/4" Fitting or Port

p13

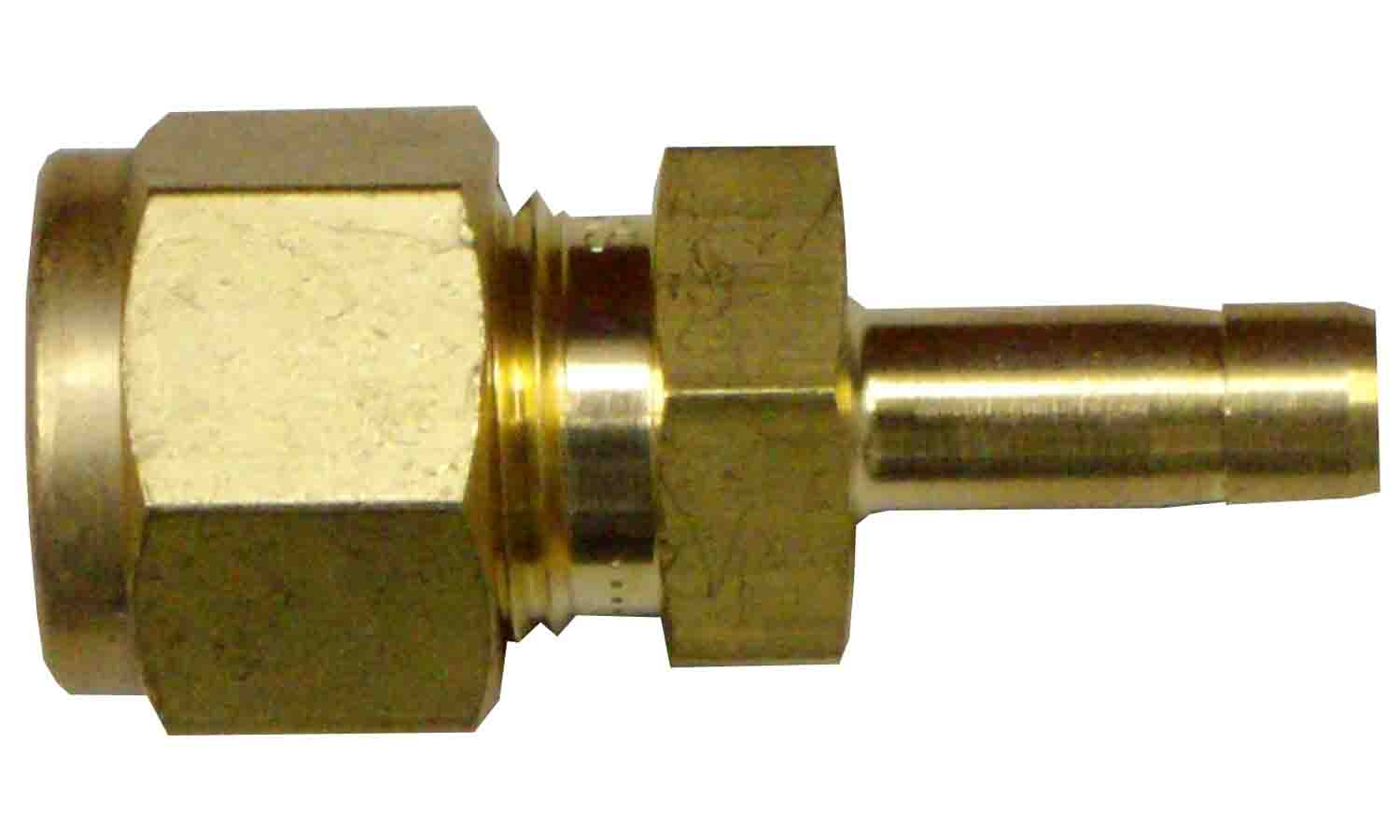

737395

Brass Tube Reduced 1/4" Tube to 3/8" Stub

Material : Plain Brass

Use : Connects 1/4" Tube to 3/8" Fitting or Port

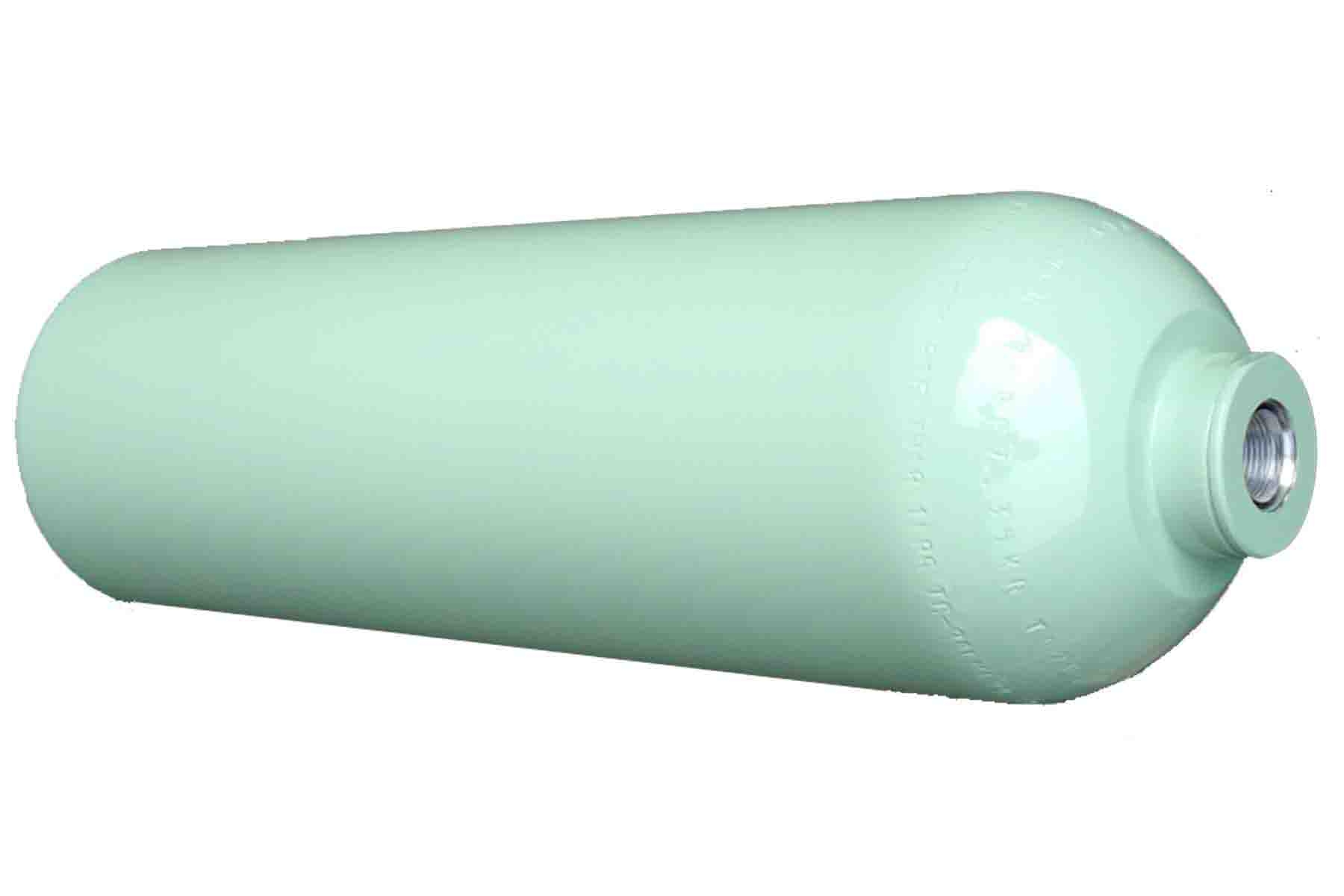

737519

New "B" Size Dose Cylinder

Material : Aluminium

Capacity : 1.8L Water Capacity

Envirosol Dose : 0.9kg



See a Drawing (.pdf format) Showing the MKIII Space controller Various Component Options
Envirosol Spare Parts
Only available through
BOC outlets
